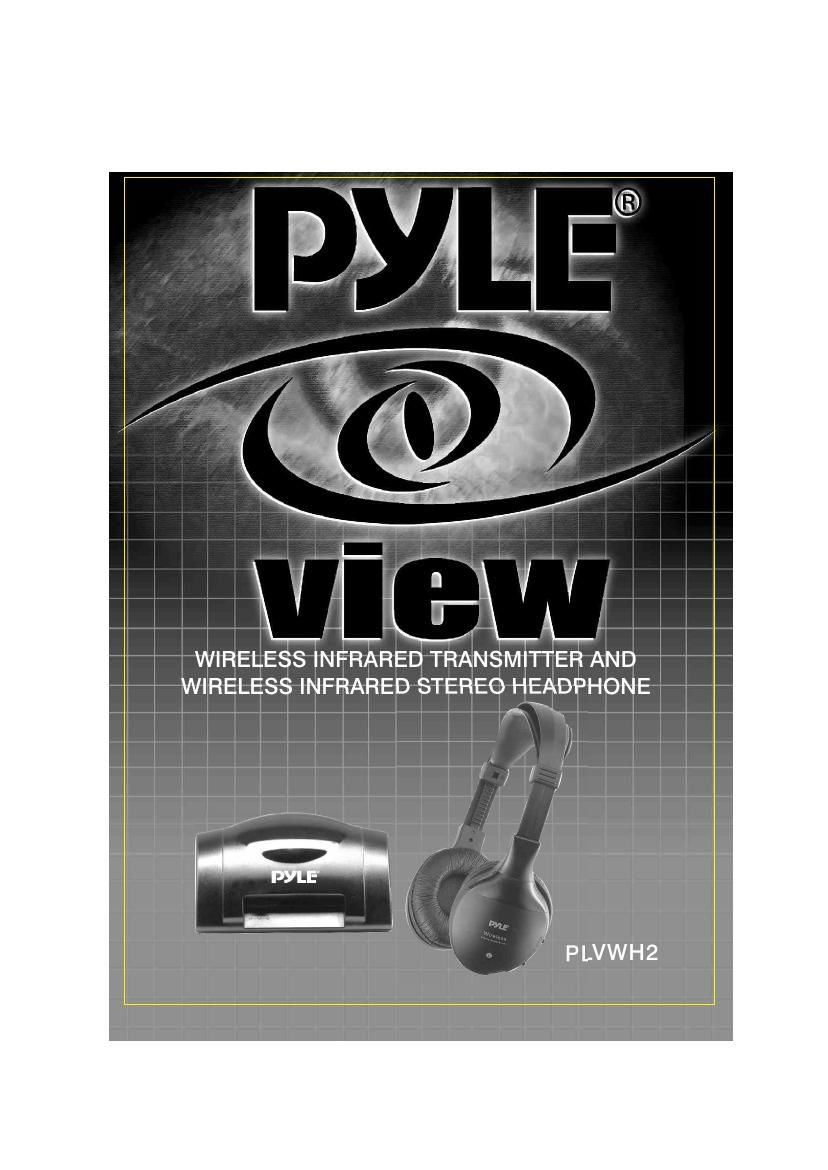

Pyle plvwh 2 owners manual

Page 1

1The PLVWH2 is a true wireless headphone system which uses latest high frequency modulation infrared technology. You can enjoy musicby simply connecting the supplied infrared transmitter to any of your audio/video equipment through either a line output jack or a headphone jack. This system is easy to set up within your car. It provides you withultimate personal listening freedom.Features An optical transmission system with high frequency modulation guarantees excellent nd surround sound quality and wide effectivetransmission range. The well designed transmitter and headphone with built-in receiver are omnidirectional in sending and receiving audio signals within a 7 meterradius, which are generally not susceptible to be blocked by objects between them. True surround sound, elegant design and rich finish of the system add into the beauty of your expesive automobile entertainment systems.The signal input level is automatically adjusted by the built-in Automatic Input Level control Circuit (ALC).Since this system uses infrared ray, if the headphones/receivers are placed too far from the transmitter, a hissing noise may increase. This isa characteristic of infrared systems and does not mean that the systemis defective Do not use this system in the open air under direct sunlight as the infrared system will not work properly.OverviewINFRARED TRANSMITTER

Page 2

2Precautions * Operate the transmitter on 12V 100mA. Operate the headphone system on3V DC (size AAA batteries x 2). * Turn off the power of the transmitter and the system is not in use. * Do not open the cabinet. Refer servicing to qualified personnel only. * Do not leave the system in a location near heat sources such as radiators or airducts, or in a place subject to direct sunlight, excessive dust, moisture, rain, mechanical vibrantion, or shock. * Do not use alcohol, benzine or thinner to clean the cabinet.Headphone1. Infrared sensors 2. Power Switch 3. Stereo / mono 4. Volume Controls 5. Battery Compartment Door 6. Ear pad 7. Adjustable headbandIR Stereo Headphone1. Open the battery compartment door on the right of the headphone.2. Insert two size AAA batteries with correct polarity.3. Close the battery compartment.Transmitter1. Infrared emitter 2. Audio input ( R) 3. Audio input ( L) RED WHITE 4. Power 12VDC (+)RED (-)BLACK 1 23 4Velcro for Mounting IR Transmitter
