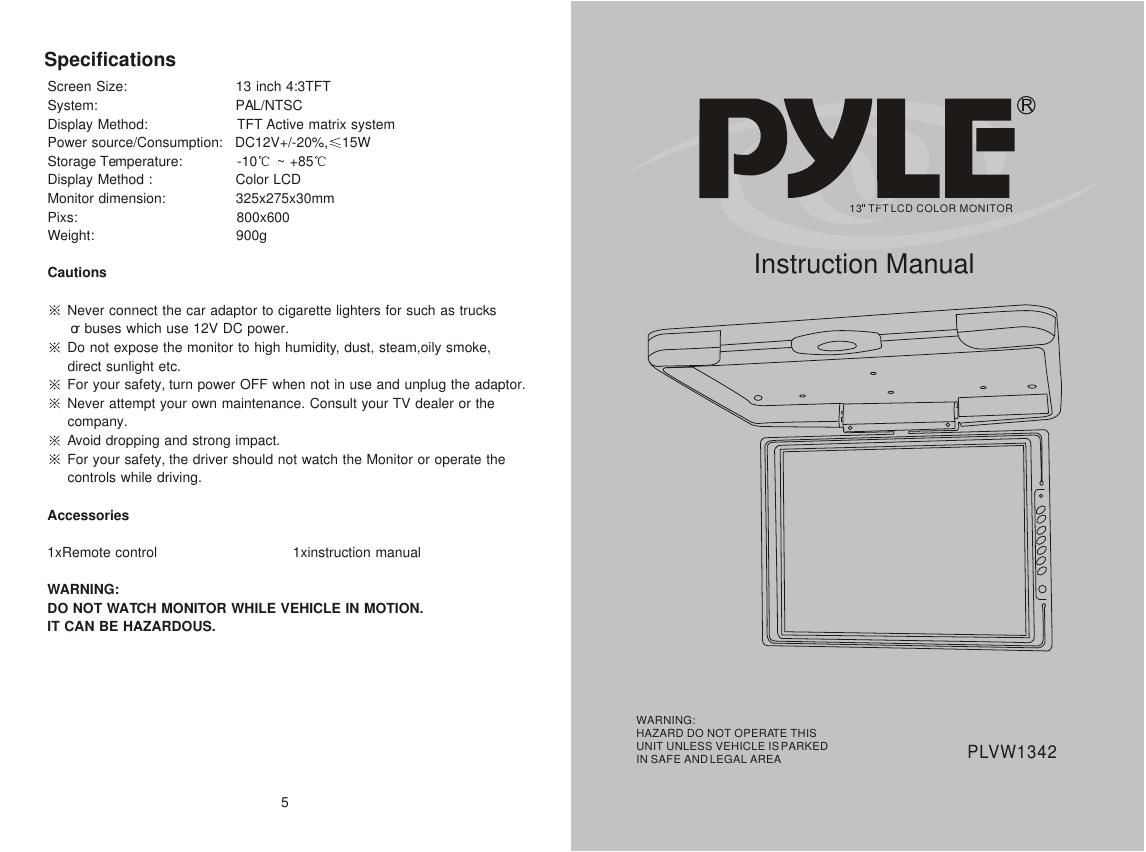

Page 1
PREAUTIONS
The set is for use in DC12V ,negaive ground vehicles.
Do not operate the set in ways other than described in this guide .Doing
so may damage it and may void your warranty.
SAFETY FIRST FOR REAR SEAT USE ONLY .Do not install on dashboard
or any where else that would permit monitor to be viewed by the driver .
Monitor must never be used in any manner that will distract driver or
interfere with the drivers
safe operation of the monitor vehivle.
Be careful not to run down the car battery while using the set with the
car stopped.Do not disassemble or modify the set .Doing so may damage
it and voids your warranty.
Keep drinks and drops from numberllas away from the set .Water may
damage the internal circuitry.
Do not let the set become hot .If temperature in the car is high or the
set has been exposed to direct sunlight and is hot ,lower the temperature
before using it .In extremely cold temperature ,the movement of the
picture may be slow and the picture may be dark ,but this is not a
malfunction .The set will work normally once the temperature increases.Thank you for the purchase of this roof mounting 13inch TFT-LCD
monitor .Before operating the unit ,please read this manual
thoroughly and keep it for future reference.14REMOTE CONTROL BATTERY
1.Always use new batteries when replacing the old set .
2. Do not attempt to charge ,short-circuit ,disassemble ,heat or burn
used batteries.3.Battery replacement is necessary when remote control acts
sporadically or stops operating this device.
4.Do not place objects between the remote control and remote receiver.
5.If the monitor does not operate even when operating the remote
control from a colse rangre ,it is time to replace the batteries
Product number :(cr2025)
INSTALLATION
The device is an overhead ,fold-down 13 inch monitor with an infrared
ir eye .It will accept a video signal from any video source with composite
videout .1.Look over the vehicle for a location for the monitor .Each vehicle
is different and locations will vary .Make sure the monitor will not
interfere with the driver.
2.Once a location has been determined ,connect the IR ,A/V RCAs
and Powercables to the designated sources.
3.Feed the cables through the hole in the mounting bracket and
screw the bracket to the head liner ,Use short screws so as not to
damage the roof.
4.Plug the cable into the monitors 6 pin din connector .Mount the
monitor with the provided hardware. Back of the remote
Battery tank
Battery
Transparent slice
Page 2
23Pannel125436781.LED 2.Power
3.AV1 4.AV2
5.+ 6.MENU7.- 8.RSI9.IR 10.Dome light11.Monitor release button 12.Dome light switch
9101112REMOTE CONTROL
1.Power ON/OFF the monitor
2.Contrast positive adjustment
3.Switch between V1 and V2
4.Brightness positive adjustment
5.Brightness negative adjustment
6.Contrast negative adjustment
7.Saturation negative adjustment
8.Saturation positive adjustment AV
TFT-LCD
MONITOR REMOTE
1
2
3
4
5
6
7
8WIRING DIAGRAM
Read all wiring precautions .If you are not sure of the connections ,contact your
authorized dealer.1.Disconnect the negative(-) lead of the battery before making any power connections.2.When creating passage holes for the power wires ,use grommets to eliminate any sharp edges created during drilling .This will protect the wire from being nicked and causing a short circuit .3.When connecting the ground lead ,fasten the ground lead(black) securely to a clean metal plate on the vehicle .
Video1 input (yellow RCA)
FUSE 2A
12V
BATTERY PLAYER
Video input2 (white RCA)
Red Black
