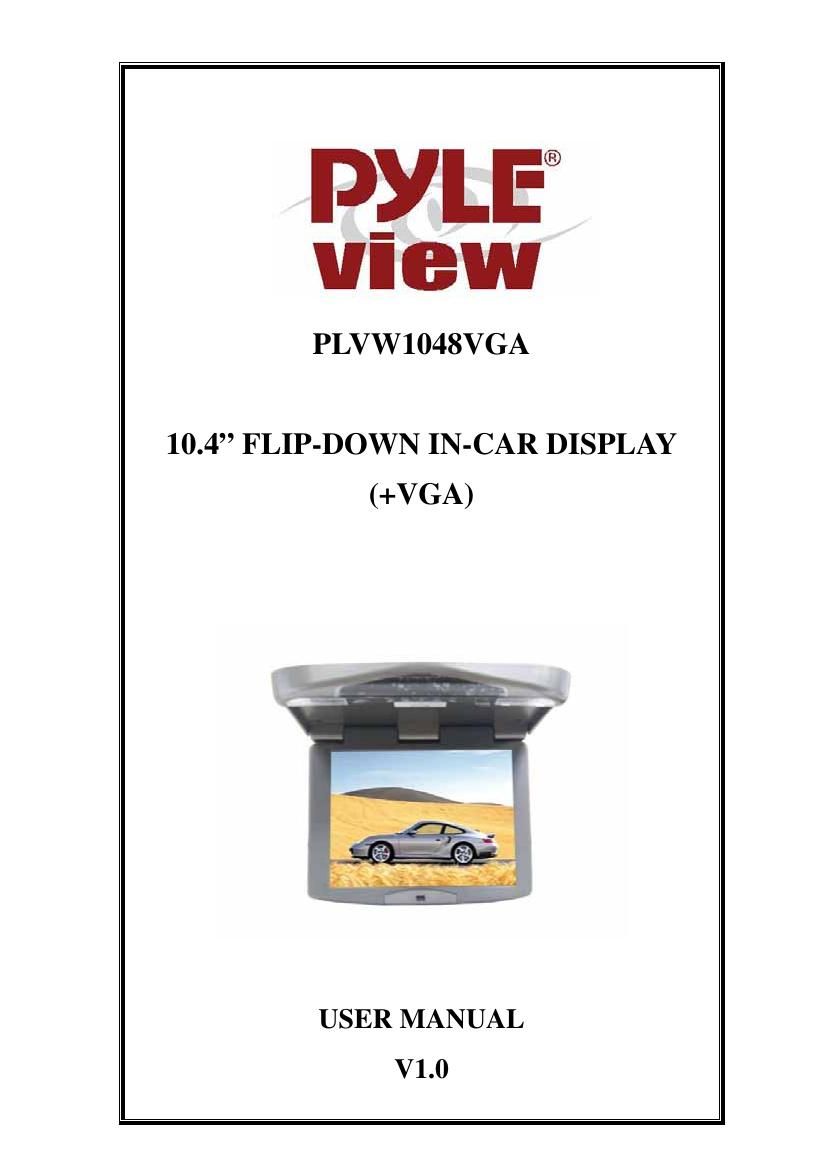

pyle plvw 1048 vga owners manual

Extracted text from pyle plvw 1048 vga owners manual (Ocr-read)

Page 1

INDEX NO CONTENT PAGE 1 Specification 2 Installation 3 OSD function 4 Content of OSD function 5 Accessories 6 Outside dimension 7 Precaution 8 Remark

Page 2

1. Specification CAR-TV 10.4 + VGA function Resolution 800(H) x 600(V) Size 10.4 TFT LCD Brightness 200 cd/ (Typ) Video input Composite Video(RCA)(F) ×2 (NTSC,PAL,SECAM) Not support mono signal Audio input Stereo Sound Input (RCA)(F) ×2 PC Sound Input (Phone Jack) ×1 PC input Analog 0.7Vp-p/75ohms, Sync Separate, TTL level. Frequency Range Horizontal 30k ~ 70k(Hz), Vertical 50 ~ 75(Hz) Support VESA DDC2B, EDID v1 r1, DPMS Power input DC 12~35V,3A(Max) IR Transmitter 2.3MHz&2.8MHz Audio output FM Stereo Sound Wireless Transmitter(88.0MHz~88.9MHz) *Option Display Key (6 Key)Control Control function Remote Key Control PC Vidoe Adjustment PIP Mute AutoTune FM Brightness Contrast Color Quality Position Brightness Mute FM PIC MODE Contrast Saturation Hue Power consumption 16W(MAX) Temperature Working: 5~39 , Storage: 5~48 Weight 2.2kg ±200g
