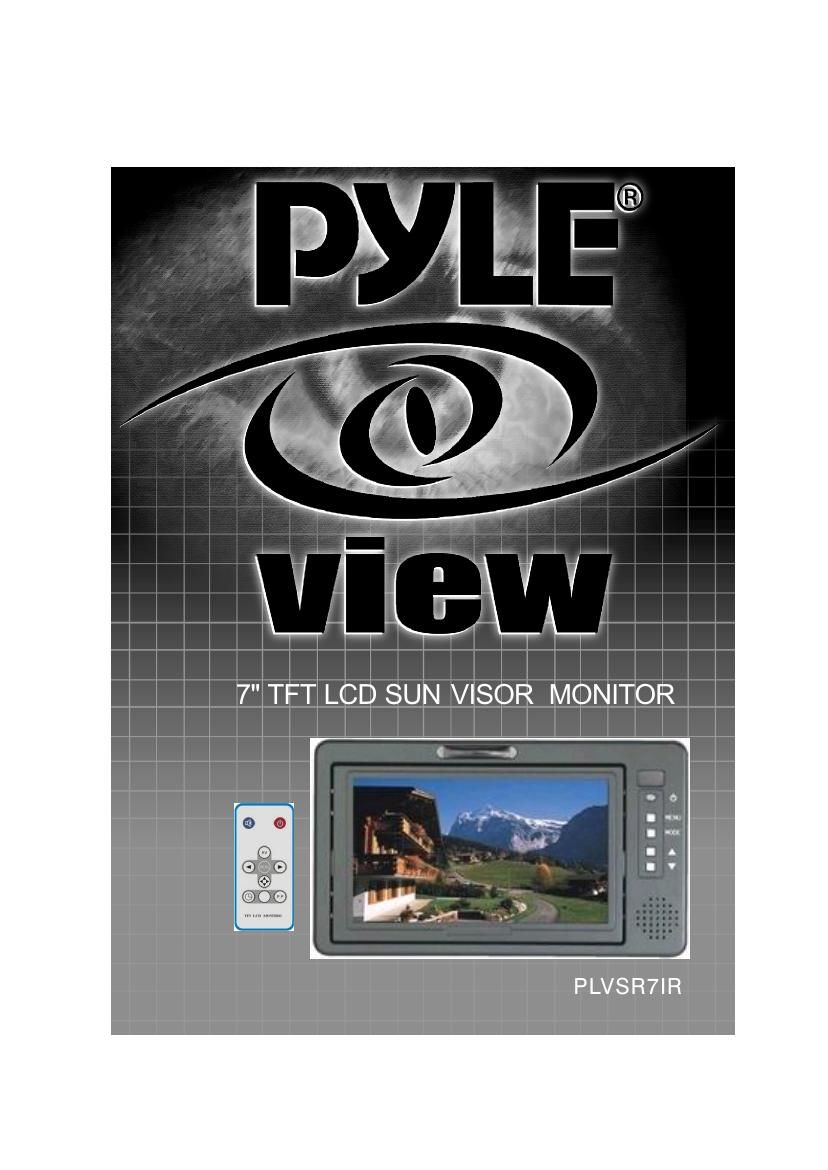

Page 1
1* MONITOR
1. SPECIFICATION-------------------2
2. FUNCTION KEYS AT FRONT PANEL-------2
3. FUNCTION DESCRIPTIONS----------3
4. CONNECTION -----------------3
5. REMOTE CONTROL ---------------4
6. DIMENSION ------------------ -4
7. SUN VISOR KIT-----------------4
Page 2
2MONITOR
1. SPECIFICATION
* VIDEO
- SCREEN SIZE ----------------------------------- 7" DIAGONAL
- RESOLUTION ---------------------------------- 1440(H) x 234(V)
- COLOR CONFIGURATION ------------------- RGB Stripe
- DOT PITCH -------------------------------------- 0.107(H) x 0.372(V)
- VIEWING ANGLE ------------------------------ Top: 50 deg. / Bottom: 20 deg.
Left: 45 deg. / Right: 45 deg.
* ELECTRICAL
- COLOR SYSTEM ------------------------------- NTSC/PAL Auto Switch
- VIDEO INPUT ---------------------------------- 1 Vp-p, 75ohms
- POWER COMSUMPTION -------------------- DC12V 1A MAX. 6VA
- AUDIO OUTPUT POWER--------------------- 0.5W(MAX)
2. FUNCTION KEYS AT FRONT PANEL:
