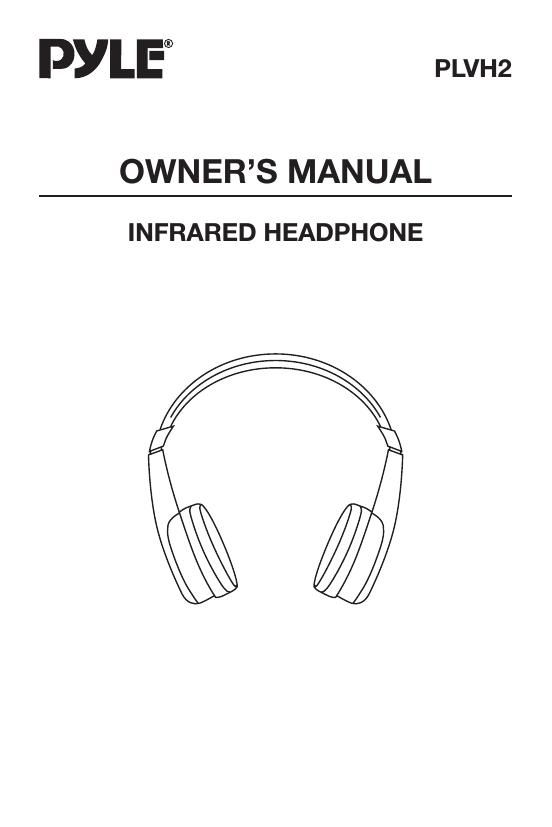

Pyle plvh 2 owners manual

Page 1

INFRARED HEADPHONE This infrared headphone is supplied with the main unit that has the infrared transmitting function. The user can put on the infrared headphone within proper range to hear the sound signal emitting from the infrared transmitting window of the main unit. Operation for the headphone batteries Two Size AA (1.5V) batteries are required to operate the headphones. Rechargeable batteries with a sufficiently high voltage can be used as well. Choosing batteries with a high capacity (mAh) will extend operating time. There are two battery compartments, located on both sides, each housing one battery. Installing the headphone batteries: 1. To access each battery compartment, push on the edge of the battery lid. This will release the battery lid. Then remove the lid to gain access to the battery compartment. 2. Insert the battery by pressing the minus pole of the battery against the spring on the battery compartment until the plus pole can slide into the battery compartment. The battery should snap into place. Be sure to only use batteries with a well formed plus pole to ensure proper contact between the plus pole of the battery and the plus pole inside the battery compartment and also to ensure that the battery will not slide out of the battery compartment unintentionally. 3. Finally, close the battery lid by pushing it into the slot. It should snap into the closed position. 2

Page 2

Removing the headphone batteries: To remove the batteries, open the battery lid as described above and pull the battery out of the battery compartment by pushing the battery towards the spring until the plus pole is released and slides out. ATTENTION! Never leave batteries inside the headphones for very long periods of time to prevent any damage to the headphones from leaking batteries. Dispose of spent batteries conforming to local waste disposal rules. Check the remaining power of the headphone s battery: When install two batteries into the battery compartments, switch on the headphone by slide the switch to ON position. Check that the headphones power indicator lights in red. You can now use the headphone. Charge the battery or install a new dry battery, if the power indicator light is weak or turned off and the sound becomes distorted or has a lot of noise. 3
