Page 1
1
Operation Manual
Table of Contents
Welcome! ------------------------------------------------------------------------------------------------------- 2
Precautions --------------------------------------------------------------------------------------------------------3
Installation
Where to Install -------------------------------------------------------------------------------------------------- 4
Installation -------------------------------------------------------------------------------------------------------- 5
Setting Up Dome Lamps ---------------------------------------------------------------------------------------- 6
Operation
Monitor Section -------------------------------------------------------------------------------------------------- 7
OSD menu --------------------------------------------------------------------------------------------------------- 8
DVD Section ------------------------------------------------------------------------------------------------------ 9
Remote Control --------------------------------------------------------------------------------------------------10
Connections
Connection Diagram -------------------------------------------------------------------------------------------- 12
Additional Information
Troubleshooting --------------------------------------------------------------------------------------------------13
Specifications ---------------------------------------------------------------------------------------------------- 14

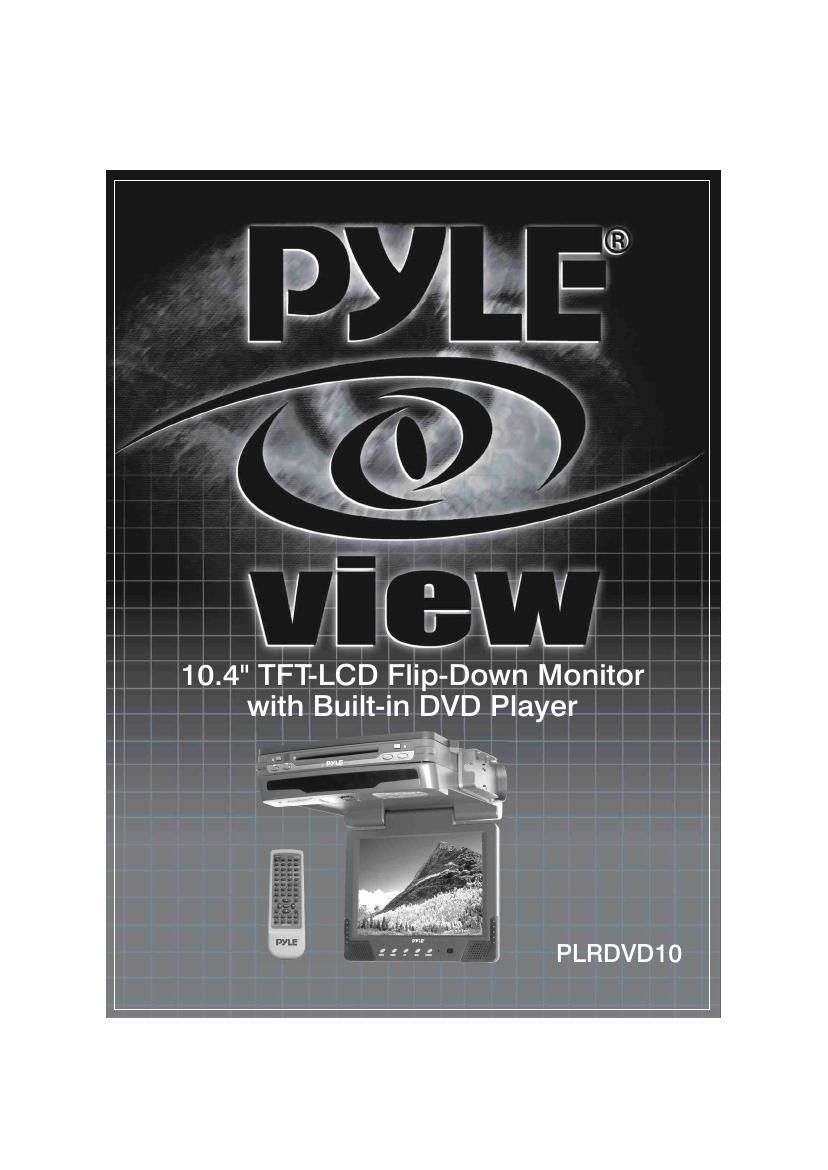

10.4 TFT-LCD Flip-Down Monitor
with Built-in DVD Player
PLRDVD10
Page 2
2
Welcome!
Thank you for purchasing the 10.4 flip-down TFT-LCD Monitor with DVD Player. For
Maximum enjoyment and prolonged life of the DVD player, we strongly recommend
that you read the instruction manual carefully before attempting to operate the unit.
Please store this manual in a safe place for future reference.
Digital Video Discs is the best source of movies for your life. The latest digital
technology allows compression of an entire movie onto one disc. Provide greater picture
clarity and sound fidelity of any video player on the market.
z You can select PAL or NTSC color system.
z In addition to normal screen mode, full screen and zoom screen modes are also
available.
z The low reflection liquid crystal panel reduces the glare from outside lighting
sources.
z You can manually adjust the brightness of the display according to the prevailing
light conditions of the surroundings.
z The backlighting control produces sharp contrast images free from reversed or
blurred colors.
z This unit has 1 Audio/Video input, 1 Audio/Video output, for connection additional
monitor and IR transmitter of IR wireless headphone.
z You can use wired headphones and infrared wireless headphones with this unit.
