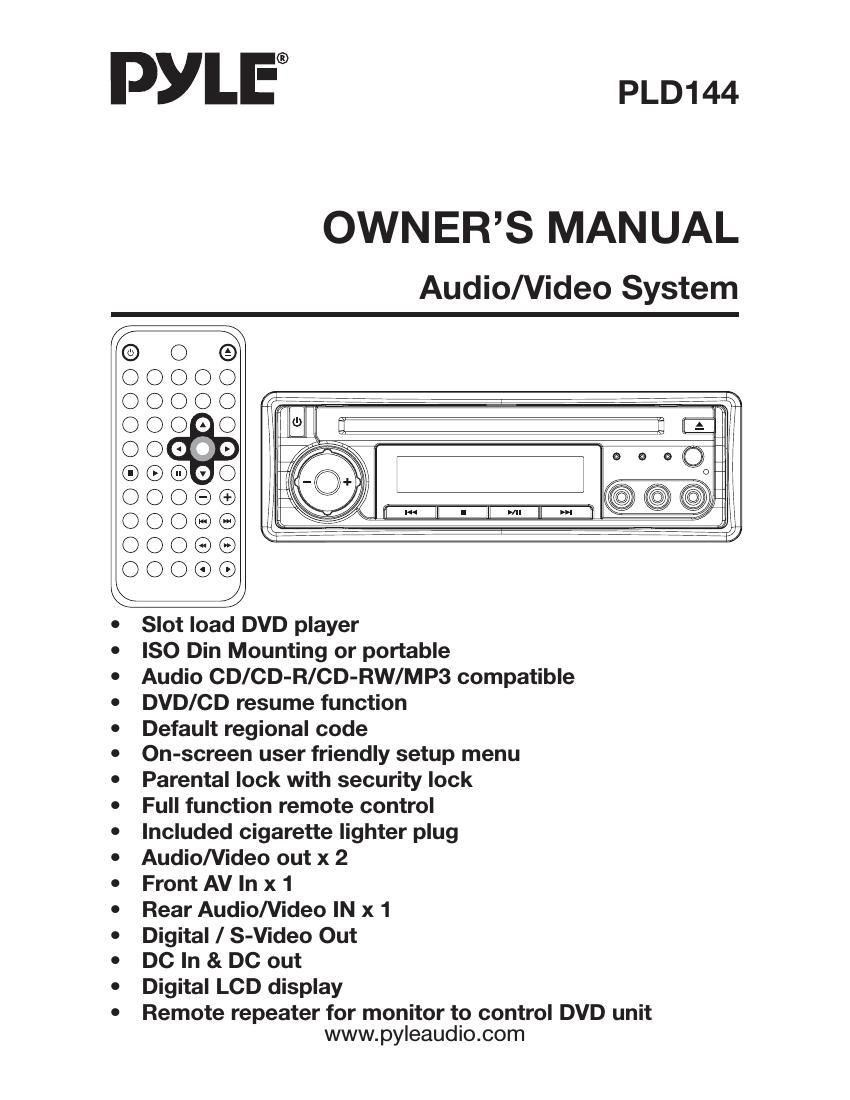

Pyle pld 144 owners manual

Page 1

2 Compatible with PAL DVD (Video CD) and NTSC DVD (Video CD) This player can play discs recorded in either PAL or NTSC format. - A single LSI chip now integrates all major DVD playback circuit functions including MPEG2 decoder, video D/A converter, and audio decoders. - L/R stereo analog audio outputs for connection to existing head unit aux inputs. Video output is composite video. - Supplied remote handles multi-function software (multi-language audio-track/subtitle, multi-angle, multi- story, etc.), plus all basic functions. USE THIS PRODUCT SAFELY Use the Proper Power Supply This product is designed to operate with a 12 volt DC, negative ground battery system. Protect the Disc Mechanism Avoid inserting any foreign objects into the disc driver of this player. Failure to observe this may cause malfunction due to the precise mechanism of this unit. Use Authorized Service Centres Do not attempt to disassemble or adjust this precision product. Please refer to the warranty card included with this product for service assistance. FEATURES

Page 2

3 CONTENTS Safety Information ......................................................................................................4 Disc Notes ...................................................................................................................5 The Player ...................................................................................................................6 Front View ...............................................................................................................6 Back View ...............................................................................................................7 Remote Control ..........................................................................................................8 Location and Function of Keys ...............................................................................8 Preparing the Remote Control ..............................................................................10 General Operation ....................................................................................................11 Turn the unit On/Off ..............................................................................................11 Basic Play .............................................................................................................11 Mode Selection.....................................................................................................11 Last Play Memory .................................................................................................11 Menu function .......................................................................................................12 Advanced Operation ................................................................................................13 Repeat Play/Paragraph Repeat Play ....................................................................13 PBC Menu Playback of VCD/SVCD .....................................................................13 On-screen Display Function .................................................................................13 Goto Function .......................................................................................................14 Zoom Function .....................................................................................................14 Special Function for DVD .....................................................................................14 Special Function for VCD and CD ........................................................................16 Data Disc Play Operation .....................................................................................16 Setup..........................................................................................................................17 System Setup .......................................................................................................17 Language Setup ...................................................................................................17 Audio Setup ..........................................................................................................17 Trouble Shooting ......................................................................................................18 Specifications ...........................................................................................................19
