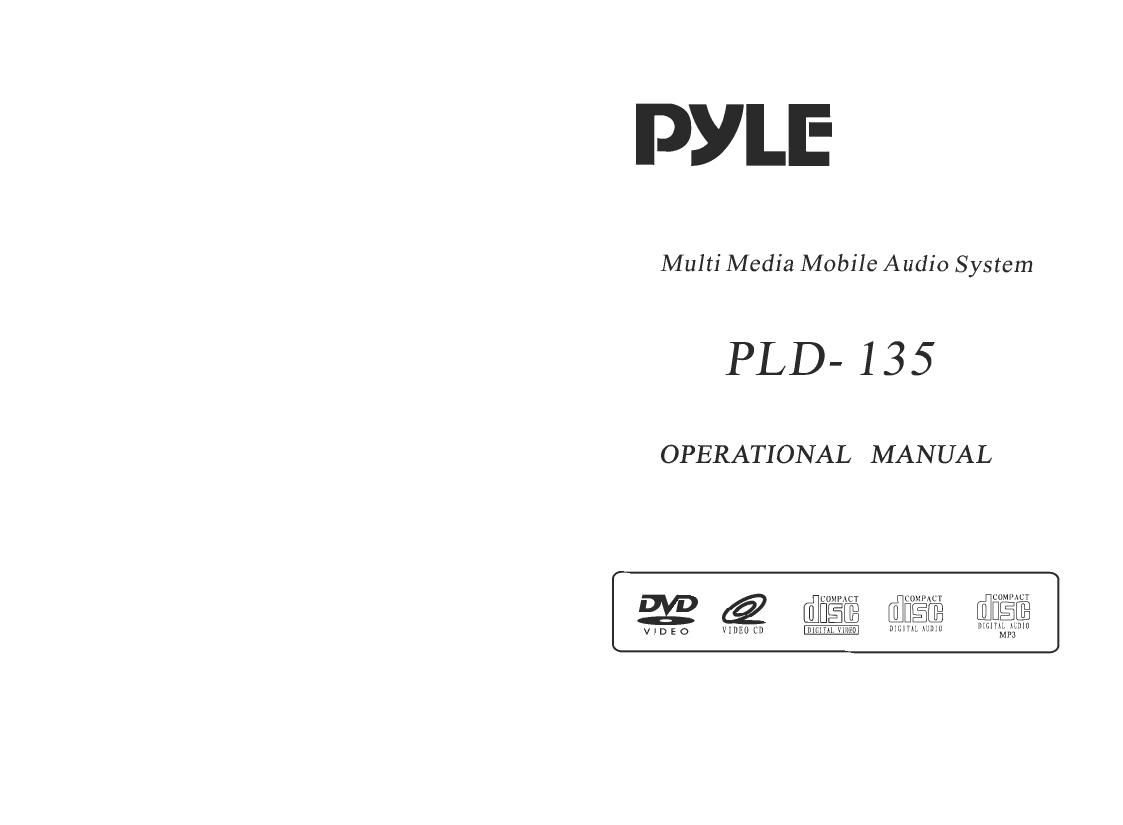

PYLE
Multi Media Mobile Audio System
PLD- 135
OPERATIONAL MANUAL
y g @COMPACT filmmmn @leE
5% USE mm: mm
AL mm n! my mum MP3
VI DEC VIDEO CD [HUI
OPERATIONAL MAN UAL
Welcome!
Thank you for buying this multi-
media mobile audio system!
To operate the system correctly,
please read the operational
manual carefully before using
the unit. Keep these instruct-
ions and retain this booklet for
future reference.
About This Manual
This unit features a number of sophistic-
ated functions ensuring superior operati-
on. This manual will help you understa-
nd the functions and operations of the
unit. This manual mainly explains rem-
ote control operation. However, in
addition to those fimctions related with
DVDNCD/CD/MP3 operation that can
only be operated by the remote control,
there are also functions that can be oper-
ated by the buttons provided on the main
unit.
5N041222m
OPERATIONAL MANUAL
Trouble Shooting
The following checklist can help you to solve some problems when using the unit.
Please double check and make sure if the connection and the procedure of the
operation are proper before using the cheklist below .
Problem Cause/Solution
No power. 0 Check and make sure whether the fuse is blown,
replace with the proper value if necessary.
A CD5 cannot be loaded. 0 A CBS is loaded in the mechanisms
Sound skips. I The CD5 is dirty or damaged.
No images - The Video line from main unit to the TV is not
connected properly.
Images skip. I Improper setting ofthe color system. Set the color
system to PAL or NTSC according to the
connected television.
Note:
If any of the problem persists after checklist had been made, consult your
nearest service dealer. Never attempt to disassemble your unit by yourself.
[Due to continuous product improvement. the operations
are subiect to run the model.
427}
