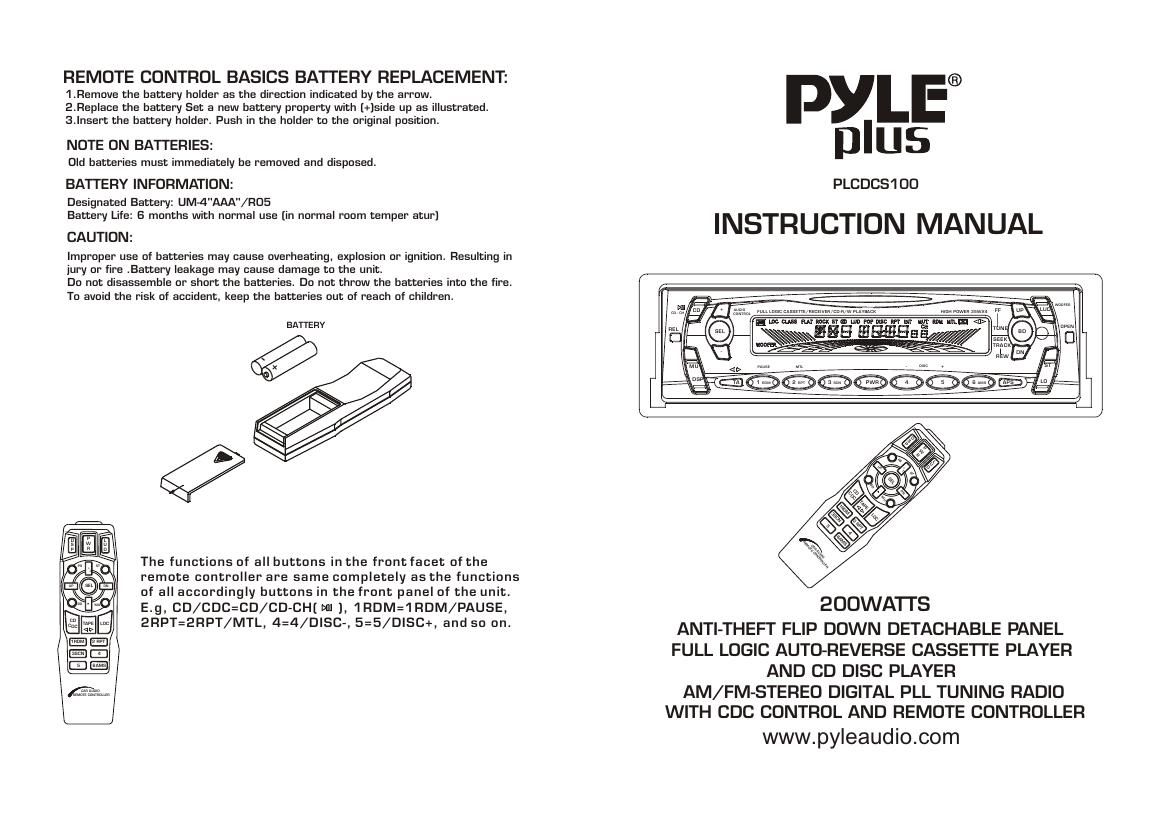

LOCATION AND FUNCTION OF CONTROLS1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 161718192021222324251. RELEASE BUTTON
Press it to flip the panel away from the unit, then you can take only the panel away.CD - CH
MUDSP
CD
TA
-
CONTROL+
SEL
AUDIO FULL LOGIC CASSETTE/RECEIVER/CD-R/W PLAYBACK
SCN 2
PAUSE
RDM1
MTL
RPT 3 PWR
-
4
TUNE
FF
SEEK
REWTRACK
HIGH POWER 35WX4
DISC +
5 6AMS
DN
APS
UP
BD
ST
LO
WOOFER LUD 2. CD/CD-CH( )BUTTON Press it to switch from radio or tape mode to CD player or CD changer mode. 1). When a disc is loaded in the disc compartment and the CD changer is not connected, the mode changes like this: Radio/Tape CD player CD player pause 2). When a disc is not loaded in the CD player and the CD changer is connected, the mode changes like this: Radio/Tape CD changer CD changer pause 3). When a disc is loaded in the CD player and the CD changer is connected, the mode changes like this: Radio/Tape CD player CD changer 3.4.12. VOLUME MODE SELECTING AND LEVEL UP OR DOWN BUTTONS Press SEL button to select the audio mode such as volume, bass, treble, balance and fader. Press the + or - button to adjust the sound level of them.
REL OPENSPECIFICATIONGENERAL
Power Supply The Main Unit.................DC 13.8 Volts. Negative GroundMaximum Output Power........................................................4 x 35WUnit Dimension.............................................178(W) x 167(D) x 50(H)FM TUNER SECTIONFrequency Range..........................................87.5MHz - 108MHz(USA)Usable Sensitivity.......................................................................10dBFrequency Response(+/- 3dB)......................................50Hz - 12.5KHzI.F. Rejection.............................................................................80dB
Image Rejection.........................................................................65dBSignal-to-Noise Ratio..................................................................60dBSelectivity.................................................................................65dBStereo Separation.....................................................................30dBCapture Ratio.............................................................................2dBAntenna Impedance....................................................................75AM TUNER SECTIONFrequency Range..........................................530KHz - 1720KHz(USA)Usable Sensitivity(S/N 20dB).....................................................20uVI.F. Rejection.............................................................................70dB
Image Rejection........................................................................70dBAntenna Impedance...................................................................75TAPE SECTIONWow&Flutter............................................................................0.1%
S/N Ratio(Normal)....................................................................52dBSeparation................................................................................40dBFrequency response.......................................................50Hz - 12KHzCD SECTIONDisc size.......................................................................................5"Channels...................................................................2-channel stereoSampling frequency...............................................................44.1KHzD/A converter...................................................................Twin. 1- bit
Pickup...........................................Optical 3-beam semiconductor laserOutput filter.............................................................................Active
Frequency response........................................................5Hz - 20KHzTotal harmonic distortion.................................................0.3%(1 Khz)Dynamic range..........................................................................60dBSignal-to-noise ratio...................................................................60dBWow and flutter..............................................Below measurable limits
Channel separation(1 KHz).........................................................60dB
Page 2
5. LCD (LIQUID CRYSTAL DISPLAY) 8. LOUD/SUB WOOFER BUTTON press it shortly to enhance the bass effect during bass mode.
Press it more than 2 seconds, SUB WOOFER will be turned on. then press SEL button to select the sound mode such as volume, bass, treble, balance and fader, and then press + or - button to increase or decrease the volume level of the selected sound mode. Press it more than 2 seconds again to turn off the SUB WOOFER. 9. OPEN BUTTON
Press it to flip the panel down from the unit. But you can't take the panel away because it is still linked with the unit by metal plates.
10.MUTE BUTTON
Press it to eliminate the sound immediately.
11.DISPLAY BUTTON
Press it repeatedly to turn on the preset equalizer curves: FLAT, POP,
CLASSIC and ROCK, and the sound quality will be changed.TROUBLE SHOOTINGBefore going through the check list, finish wiring connection. If there still are
any question after finish testing the items in the following list, consult your nearest service dealer.Symptom Cause
The fuse is blown. Replace the fuse with another 15A
fuse.
Switch the ignition to the "ON" or
"ACC" position. No power.
Select a station using manual tuning. The signals are weak. The radio does
not stop on anystations whenautomatic tuning is used.
Insert the antenna cable firmly into
the antenna jack on the unit. The antenna cable is not
connected. No radio reception.
Turn the power off and then on
again.
Eject the disc or tape, then insert it
again. The microcomputer has been
affected by electrical noise. The unit does
not work properly (Eject,Load, Play).
The vehicle ignition is switched
off.
Clean the disc. The disc is dirty.
Try another disc. If it plays properly,
the first disc may be defective. The disc is defective.
Install the unit securely. Be sure to
use the rear strap if the vehicle
does not provide support for the
rear of the unit. The unit is not mounted
securely.
Wait for the road surface to
improve before playing a disc. The road surface is rough. The sound from
the CD playerskips.
Check the +12V and ground
connections. The power connections are not
wired correctly.
The volume control is turned
down. The compact disc or tape does not play when inserted into the unit.
Solution
Turn up the volume control. 6. BAND BUTTON Press it to switch from tape, CD or CDC mode to radio mode, then press it
repeatedly to select the band and the LCD screen will be shown as below: FM 1 FM 2 FM 3 AM 1 AM 27.21. TUNE/SEEK/TRACK UP OR DOWN, FF/RW BUTTONS
In radio mode, press UP or DN button shortly to start automatic tuning and stop at the next receivable station; press UP or DN button for more than 2 second to change into manual tuning mode. In tape mode, press UP or DN button to fast forward or rewind the tape, and press TAPE button to resume normal tape playing. In CD player mode, press UP or DN button to skip to the beginning of the next track or one of the track currently playing. Press the DN button twice to skip to the beginning of the previous track. Press and hold UP or DN button for more than 2 seconds to search quickly (with sound) in the forward or reverse direction.
