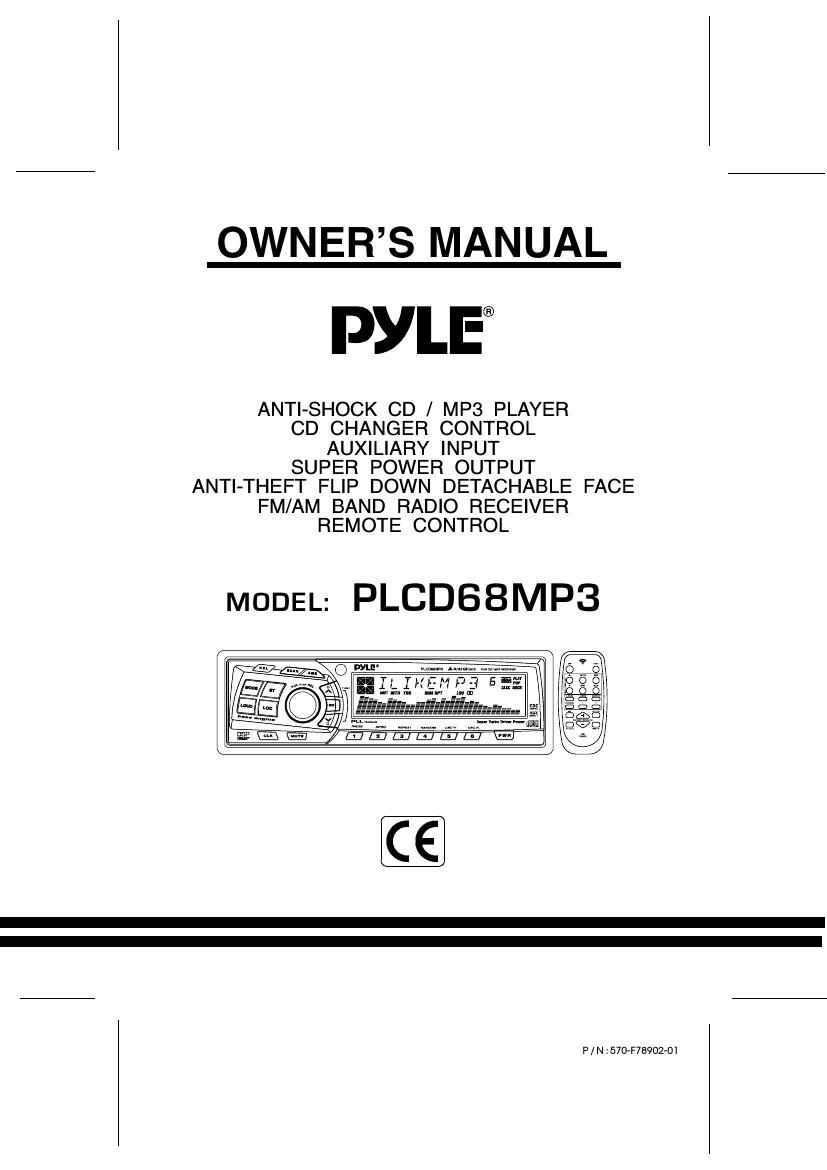

Page 1
Page. 2
P / N : 570-F78902-01
LOCATION OF CONTROLS
OPERATING INSTRUCTIONS
1. POWER ON/OFF CONTROL
Press the button to turn the power ON or OFF.
Note : The unit can be turn on by pressing any keys on the panel (except panel
release button & disc eject button). It will help the user who cannot find the power
button in dark.
2. BAND SELECTOR
Each time this button is pressed, the radio band is changed. The indication FM1,
FM2, FM3, MW1 or MW2 will appear on the display according to your selection.
3. SCAN CONTROL
Press this button to scan the receivable FM / MW stations. When receivable stations are
tuned in, they are monitored for approximately 4 seconds before advancing to the next
receivable station. Press SCAN button once again to stop scanning as desired.
4. PRE-SCAN/AUTO-STORE BUTTON
This button allows you to enjoy Preset Memory Scan function by pushing it shortly,
and Auto-Store Memory function by pushing it more than 2 seconds.
- PS (PRESET MEMORY SCAN) - It calls the memorized station frequencies (from 1-6)
automatically every 5 seconds.
- AS (AUTO-STORE MEMORY) - It searches all station frequencies upward and
memorize automatically 6 stations by catching the frequency which has scan-stop level,
the memorized station is shown on LCD as CH1...6. After memorizing, auto-store
memory function will be changed to Preset Memory Scan function automatically.
5. DISC SLOT
Holding the disc and insert into the disc slot. The disc mechanism will automatically
engage into CD/MP3 play mode.
6. LCD DIGITAL DISPLAY
The unit utilizes a digital type display which shows numerical indication of station
FREQUENCY and other FUNCTIONS.
REMARK :AT ANY TIME, IF THE WIRE IS DISCONNECTED, THE RESET SWITCH MUST BE PRESSED AGAIN BEFORE OPERATE THE
RADIO (REFER TO PAGE 6 FOR DETAIL). OTHERWISE, THE RADIO MAY NOT WORK PROPERLY.
7. CLOCK CONTROL
The button serves to show available information as following:
-Time
- Track No. / Playing Time (during CD and MP3 mode)
- Directory Name / File Name (during MP3 mode and the file must contain directories or files
name written by the CD writer)
FIGURE A
Page 2
P / N : 570-F78902-01
Page. 3
SETTING CLOCK TIME MANUALLY
Briefly press CLK button until clock time appear on the display.
Press and hold the button until the clock flash and release CLK button.
While clock is flashing, rotate volume control button clockwise to set HOUR and
anti-clockwise to set MINUTE.
8. MUTE CONTROL
Press the button to mute volume control and MUTE ON will appear on the display.
9. DISC EJECT BUTTON
Press the button to eject the disc inside disc slot.
10. PANEL RELEASE BUTTON (FIGURE A)
To detach the front panel, press the release button so that the panel fold down from
vertical position to horizontal position and then pull it off of the chassis at horizontal
position.
To re-attach the panel, push the fold-down metal frame forward until it locks to the
original postion. Then, put the panel at the right side of the position first and then press
the left side of the panel until the mechanism lock it into place.
11. MODE SELECTION
Press this button to select Radio (TUNER), CD / MP3 (S-CDP), CD Changer Control
(CD-C) and Auxilliary Input (AUX) mode.
12. STEREO/MONO CONTROL
Press this button to select STEREO or MONO reception.
13. LOUD CONTROL
Press this button to activate the loudness circuitry which compensates for loss of high
and low frequencies during low volume levels.
14. LOCAL/DISTANT CONTROL
Press this button to prevent strong local stations from overlapping weaker stations. For
normal operation, press this button again for distance.
15. VOLUME / SELECTION CONTROL
Rotate the button anti-clockwise to decrease, or clockwise to increase volume level.
AUDIO LEVEL CONTROL (WHEN PUSHING ONE AFTER ANOTHER)
Press this button shortly one after another to show VOL/BAS/TRE/BAL/FAD control.
VOLUME - Press this button once, then rotate anticlockwise to decrease, or clockwise to
increase volume level.
BASS - Press this button once, then rotate anticlockwise to decrease, or clockwise to
increase bass level.
TREBLE - Press this button once, then rotate anticlockwise to decrease, or clockwise to
increase treble level.
BALANCE - Press this button once, then rotate anticlockwise or clockwise to level balance
of speaker right and left.
FADER - Press this button once, then rotate anticlockwise or clockwise to level fader of
speaker front and rear.
AUDIO / SETTING SELECT (WHEN PUSHING 2 SECONDS)
When pressing the button for more than 2 seconds, it activates as unit setting selection in
cyclical mode as following. The unit setting can be changed byrotating the button clockwise or
anti-clockwise.
DSP OFF / POP M / ROCK M / CLASS M / FLAT M
ESP 12 / ESP 45 (setting 12 seconds or 45 seconds of electronic anti-shock time
for Audio CD)
BEEP OFF / BEEP ON (not available for this model)
SEEK 1 (tune up/down buttons performs fast tune function) / SEEK 2 (tune up/down buttons
performs auto tuning function when pressed more than 1 second)
COLOR 1 / COLOR 2 (not available for this model)
VOL LAST / VOL ADJ (preset volume level when unit turn on)
