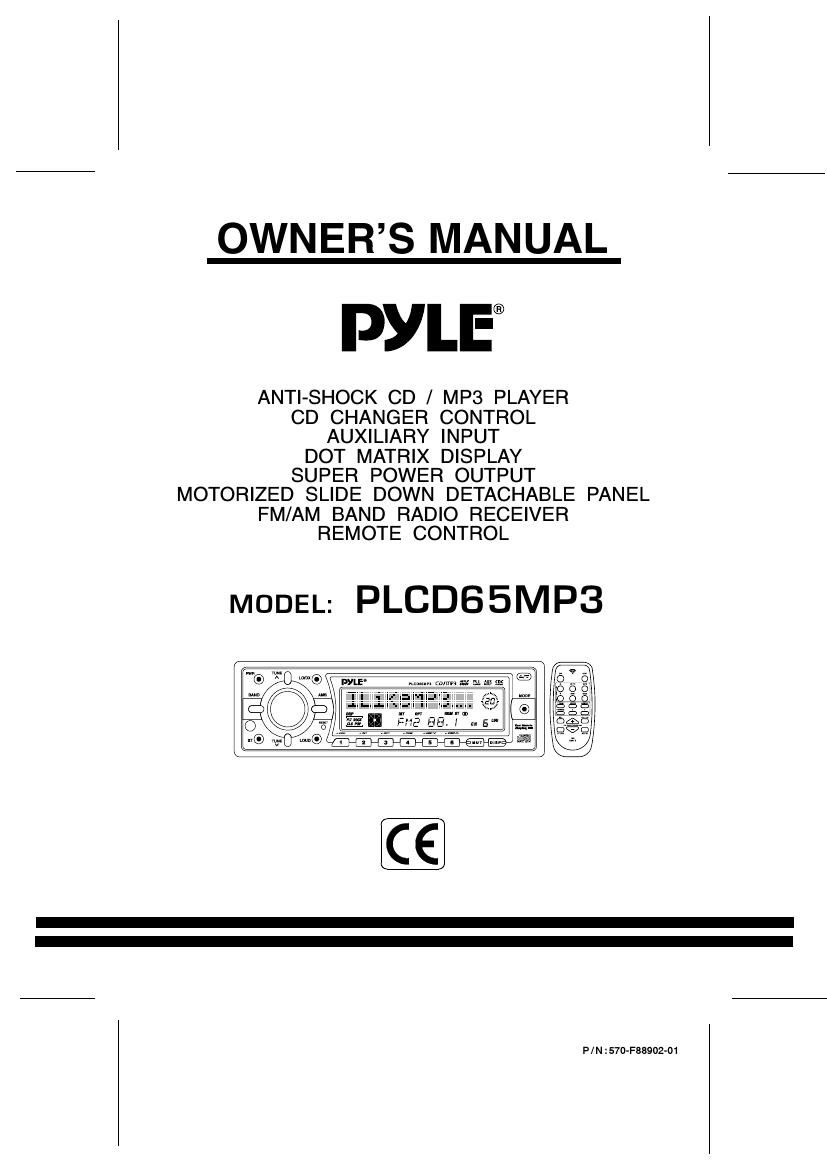

pyle plcd 65 mp owners manual

Extracted text from pyle plcd 65 mp owners manual (Ocr-read)


Page 1

Page. 2 P / N : 570-F88902-01 LOCATION OF CONTROLS OPERATING INSTRUCTIONS 1. POWER ON/OFF CONTROL Press the button to turn the power ON or OFF. Note : The unit can be turn on by pressing any keys on the panel (except open/close button & disc eject button). It will help the user who cannot find the power button in dark. 2. BAND SELECTOR Each time this button is pressed, the radio band is changed. The indication FM1 BAND, FM2 BAND, FM3 BAND, MW1 BAND or MW2 BAND will appear on the display according to your selection. 3. PRE-SCAN/AUTO-STORE BUTTON This button allows you to enjoy Preset Memory Scan function by pushing it shortly, and Auto-Store Memory function by pushing it more than 2 seconds. - PS (PRESET MEMORY SCAN) - It calls the memorized station frequencies (from 1-6) automatically every 5 seconds. - AS (AUTO-STORE MEMORY) - It searches all station frequencies upward and memorize automatically 6 stations by catching the frequency which has scan-stop level, the memorized station is shown on LCD as Channel 1 to 6. After memorizing, auto-store memory function will be changed to Preset Memory Scan function automatically. 4. DISC SLOT Holding the disc and insert into the disc slot. The disc mechanism will automatically engage into CD/MP3 play mode. 5. LCD DIGITAL DISPLAY The unit utilizes a digital type display which shows numerical indication of station FREQUENCY and other FUNCTIONS. 6. DISPLAY CONTROL / DANCING SPECTRUM MODE SELECTION This button serves to show available information as following: -Time - Track No. / Playing Time (during CD and MP3 mode) - Directory Name / File Name (during MP3 mode and the file must contain directories or files name written by the CD writer) REMARK : AT ANY TIME, IF THE WIRE IS DISCONNECTED, THE RESET SWITCH MUST BE PRESSED AGAIN BEFORE OPERATE THE RADIO (REFER TO PAGE 5 FOR DETAIL). OTHERWISE, THE RADIO MAY NOT WORK PROPERLY. FIGURE A

Page 2

P / N : 570-F88902-01 Page. 3 SETTING CLOCK TIME MANUALLYBriefly press DISP button until clock time appear on the display. Press and hold the button until the clock flash and release DISP button. While clock is flashing, rotate VOL/SEL control clockwise to set HOUR and anti-clockwise to set MINUTE. SETTING DANCING SPECTRUM MODEWhen DISP button is pressed for longer than 1 second, DANC will show on display and following dancing spectrum mode are available for selection by rotating VOL/SEL control clockwise or anti-clockwise. 7. MUTE CONTROL Press the button to mute volume control and MUTE ON will appear on the display. 8. EJECT BUTTON Press the button to eject the disc inside disc slot. 9. OPEN/CLOSE BUTTON / DETACHING PANEL BUTTON (FIGURE A) * Press this button to show the disc slot in the main panel. Then, press once to close the disc slot. * To detach the front panel, press this button so that the panel slide down from vertical to horizontal position. Use thumb hold near the preset button between 3 and 4, and use other finger to hold the corrugated release button at the back of the front panel while pulling. After the panel is released, the slide down metal frame will automatically move backward until it locks to the original position. * To re-attach the panel, put the front panel to the slide down metal frame by clipping it into place. 10. MODE SELECTION Press this button to select Radio (TUNER), CD / MP3 (S-CDP), CD Changer Control (CD-C) and Auxilliary Input (AUX) mode. 11. STEREO/MONO CONTROL Press this button to select STEREO or MONO reception. 12. LOUD CONTROL Press this button to activate the loudness circuitry which compensates for loss of high and low frequencies during low volume levels. 13. LOCAL/DISTANT SELECTOR Press this button to prevent strong local stations from overlapping weaker stations. For normal operation, press this button again for distance. 14. VOLUME/SELECTION CONTROL Rotate the button anti-clockwise to decrease, or clockwise to increase volume level. AUDIO LEVEL CONTROL (WHEN PUSHING ONE AFTER ANOTHER)Press this button shortly one after another to show VOL/BAS/TRE/BAL/FAD control. VOLUME - Press this button once, then rotate anticlockwise to decrease, or clockwise to increase volume level. BASS - Press this button once, then rotate anticlockwise to decrease, or clockwise to increase bass level. TREBLE - Press this button once, then rotate anticlockwise to decrease, or clockwise to increase treble level. BALANCE - Press this button once, then rotate anticlockwise or clockwise to level balance of speaker right and left. FADER - Press this button once, then rotate anticlockwise or clockwise to level fader of speaker front and rear. AUDIO / SETTING SELECT (WHEN PUSHING 2 SECONDS)When pressing the button for more than 2 seconds, it activates as unit setting selection in cyclical mode as following. The unit setting can be changed byrotating the button clockwise or anti-clockwise. DSP OFF / POP / ROCK / CLAS / FLAT LOUD OFF / LOUD ON ESP 12s / ESP 45s (setting 12 seconds or 45 seconds of electronic anti-shock time for Audio CD) BEEP ON / BEEP OFF (not available for this model) SEEK 1 (tune up/down buttons performs fast tune function) / SEEK 2 (tune up/down buttons performs auto tuning function when pressed more than 1 second)
