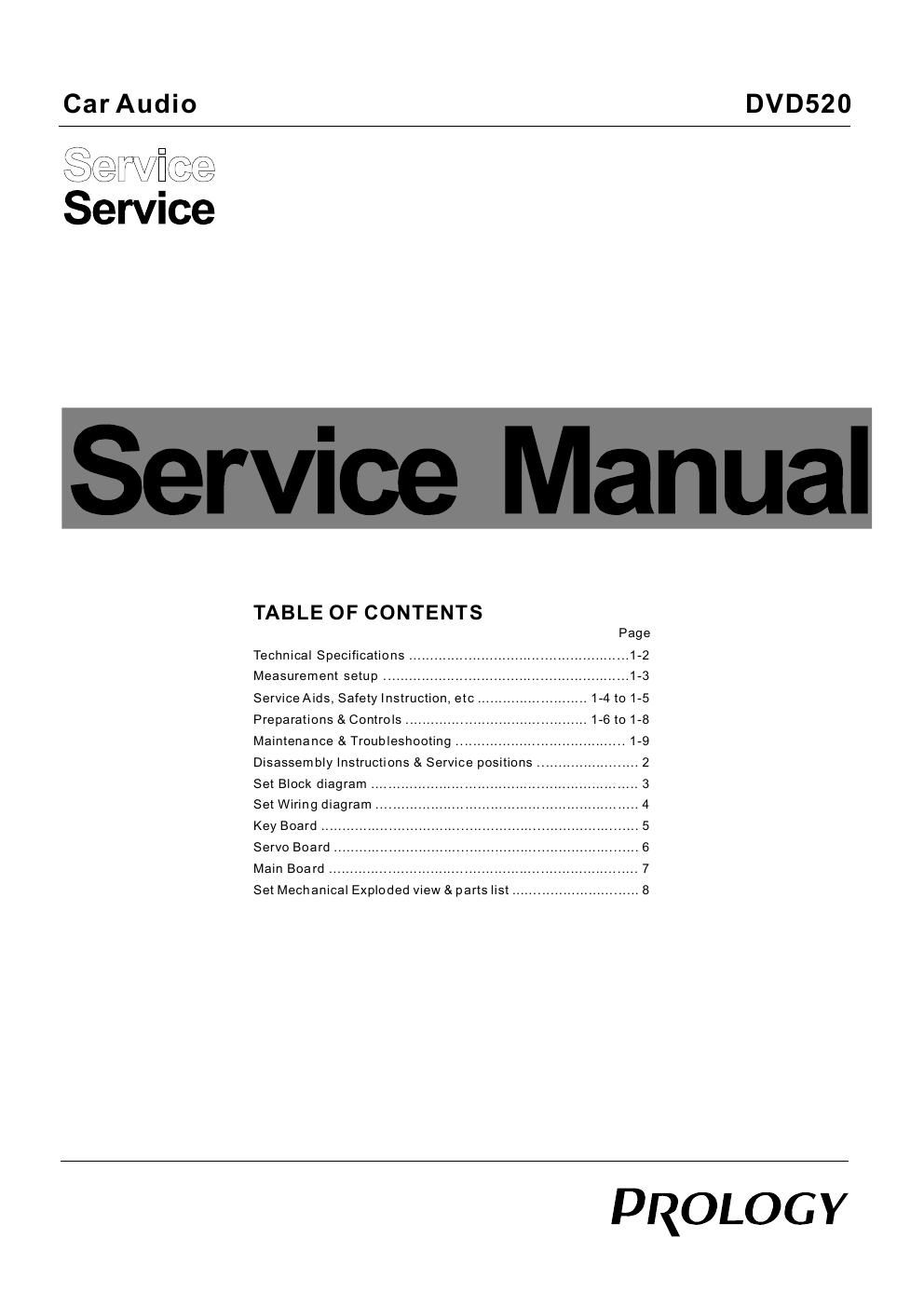

Page 1
CarAudio DVD520
R'\ a .
Service
TABLE OF CONTENTS
Page
Technical Specifications .................................................... 12
Measurement setup .......................................................... 143
ServiceAids, Safety Instruction, etc .......................... 1-4 to 1»5
Preparations&Controls ........................................... 1-6 to 1-8
Maintenance & Troubleshooting .................... . 1»9
Disassembly Instructions & Service positions. .2
Set Block diagram ........................................ .3
Set Wiring diagram .............................................................. 4
Key Board ........................................................................... 5
Servo Board ..
Main Board
Set Mechanical Exploded view & parts list.
PROLOGY
