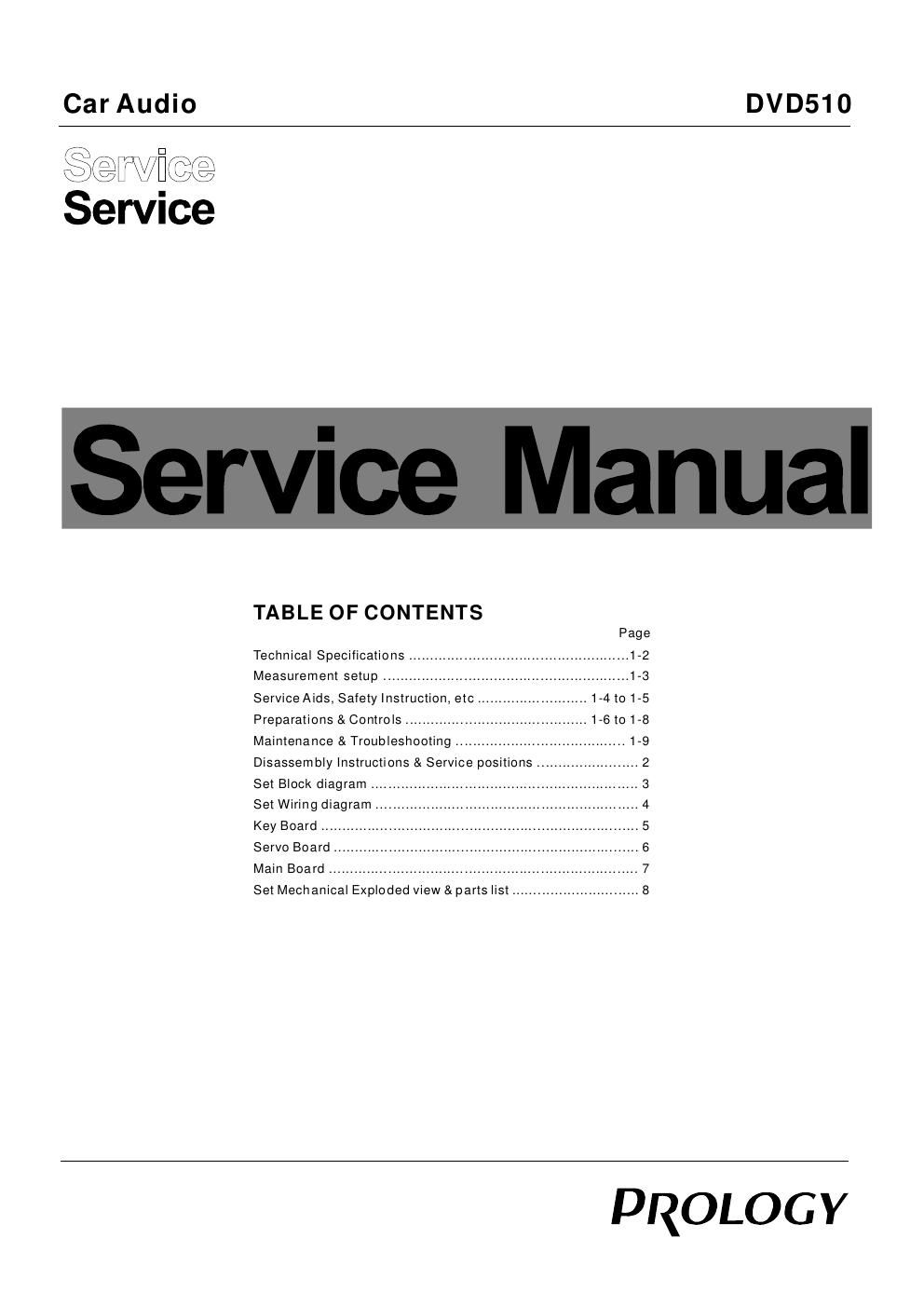

Car Audio DVD510
R'\ a ,
Service
TABLE OF CONTENTS
Technical Specifications ..............
Measurement setup iiiii
ServiceAids, Safety Instruction, etc t
Preparations & Controls ...........................................
Maintenance & Troubleshooting .............................
Disassembly Instructions & Service positions.
Set Block diagram ........................................
Set Wiring diagram tttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttt 4
Key Board
Servo Board
Main Board .
SetMechanical Exploded view&parts|ist tttttttttttttttttttttttttttttt 8
PROLOGY
1»2
SPECIFICATIONS
I General
Power supply: 12V DC(11V-16V)
Test voltage 14.4V, negative ground
Maximum power output: 50Wx4 channels
Continuous poweroutput: 25Wx4 channels (4Q,10% T.H.D.)
Suitable speaker impedance: 4»8 ohm
PreAmp output voltage: 4.0V ( CD play mode: 1KH2, 0 dB, 10 K9 load )
Fuse: 15A
DimensionlexHxD) 178x50x1625mm
Weight: 1.7kg
Aux-in Level: >300mV
Sub-out: 4.0V
I FM Stereo Radio
Frequency range: SIS-108.0 MHz (EUROPE MODE)
87.5-107.9MH2 (USA MODE)
65.0- 74.0 MHz( OIRT MODE)
_ _ . 8 dBu
Usable sensitivity: 12 dBu
Stereo separation: 3MB kHz)
Image response ratio: 5MB
IF res ponse ratio: 7MB
Signal/noise ratio 55dB
I Disc Player
System: Disc digital audio system
Frequency response: 20Hz- 20kHz
Signal/noise ratio: > 86 dB
Total harmonic distortion: Less than 0.20%(1 kHz)
Channel separation: > 60 dB
Video signal format system: PAL/NTSC
Video:
video output: 1 i 0.2V
horizontal nesowfiou: 2500 lines
Note: Specific ab'ons and design are subject to change
without notice for product improvements.
I Components
Mounting collar
Machine screws M5x6mm
Mounting bolt (50mm)
Wire connector
Removable face plate case
Trim plate
L-key
Operating instructions
Rubber cushion
Remote controller
>-->-->--N>-->-->-->--4>>--
