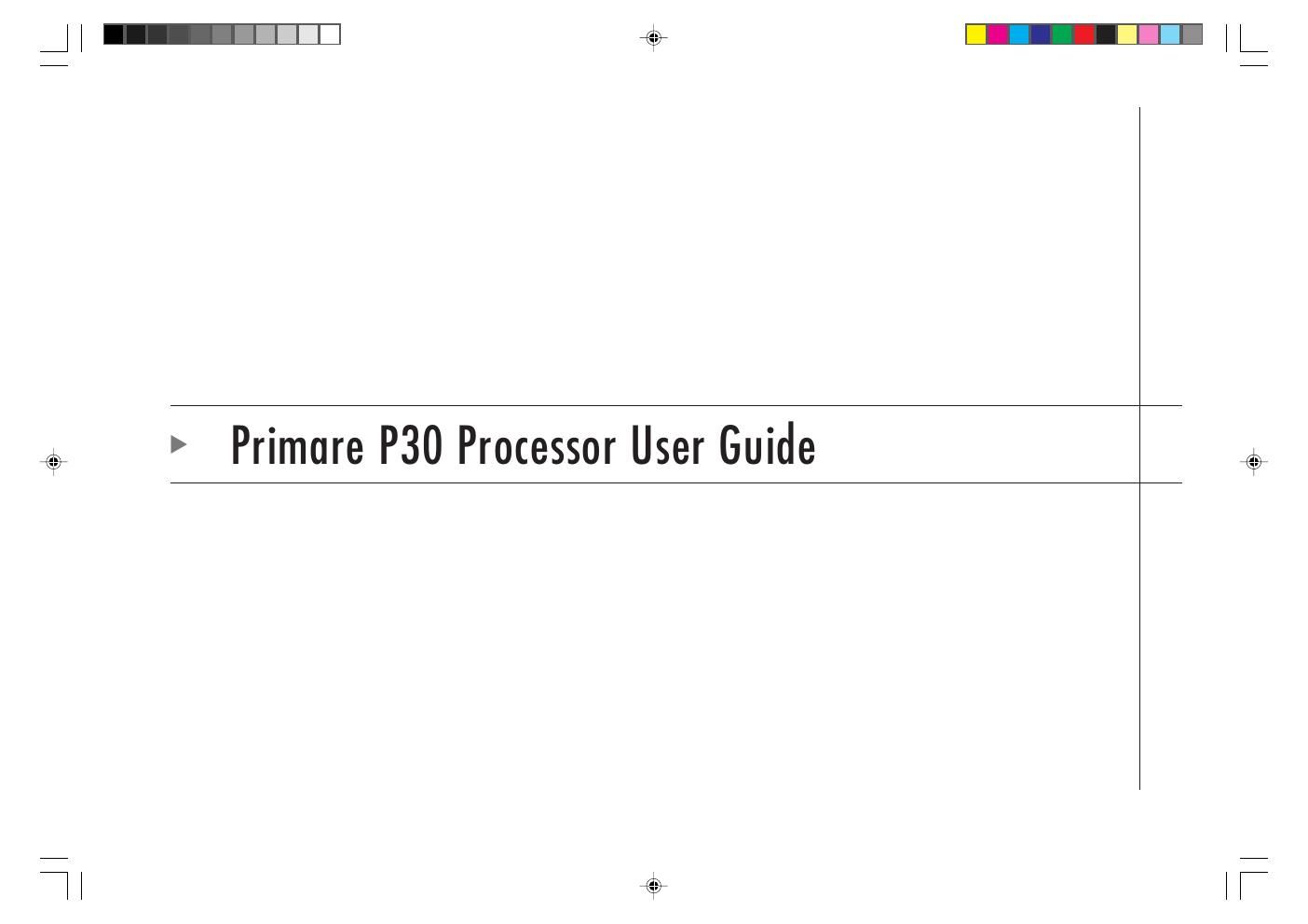

Primare p 30 owners manual

Page 1

>Preface ii COPYRIGHT AND ACKNOWLEDGMENTS Copyright © 2000 Primare Systems AB. All rights reserved. Primare Systems AB IdavŠgen 5 SE-352 46 VŠxjš Sweden The information in this guide is believed to be correct as of the date of publication. However, our policy is one of continuous development and so the information is subject to change without notice, and does not represent a commitment on the part of Primare Systems AB. Primare is a trademark of Primare Systems AB. Manufactured under license from Dolby Laboratories Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. Copyright 1992-1997 Dolby Laboratories, Inc. All rights reserved. LaserDisc is a trademark of Pioneer Electric Corp. All other product names are trademarks or registered trademarks of their respective owners.FCC Warning: This equipment generates and can radiate radio frequency energy and if not installed and used correctly in accordance with our instructions may cause interference to radio communications or radio and television reception. It has been type-tested and complies with the limits set out in Subpart J, Part 15 of FCC rules for a Class B computing device. These limits are intended to provide reasonable protection against such interference in home installations. EEC: This product has been designed and type-tested to comply with the limits set out in EN55013 and EN55020. This guide was produced by Human-Computer Interface Ltd, http://www.interface.co.uk

Page 2

> iii Contents Introduction WELCOME TO THE P30 PROCESSOR............(1 USING THE P30 WITH OTHER PRIMARE PRODUCTS................................................................(2 TECHNICAL SPECIFICATION.............................(2 Using the P30 Processor FRONT PANEL CONTROLS..................................(3 FRONT PANEL DISPLAY.........................................(4 SWITCHING ON AND OFF................................(4 SELECTING A SOURCE........................................(5 CHANGING THE VOLUME..................................(6 CHANGING THE BALANCE, CENTER, REAR, AND SUBWOOFER LEVELS....................(6 LATE NIGHT MODE................................................(7 Advanced use USING THE MAIN MENU....................................(9 CHOOSING THE SURROUND MODE..............{10 MAKING RECORDINGS........................................{11 LATE NIGHT MODE................................................{12 LOCKING THE FRONT PANEL............................{12 Connecting the P30 Processor BACK PANEL CONNECTIONS...........................{13 MAIN OUTPUTS......................................................{14 AUDIO INPUTS........................................................{14 VIDEO CONNECTIONS.......................................{14 RECORD OUTPUTS.................................................{15 MICROPHONE, DATA AND RS232..................{15 CONNECTING TO THE PRIMARE A30.5 MULTI-CHANNEL AMPLIFIER...............................{15 CONNECTING TO THE PRIMARE V20 DVD P L A Y E R ........................................................................{15}
