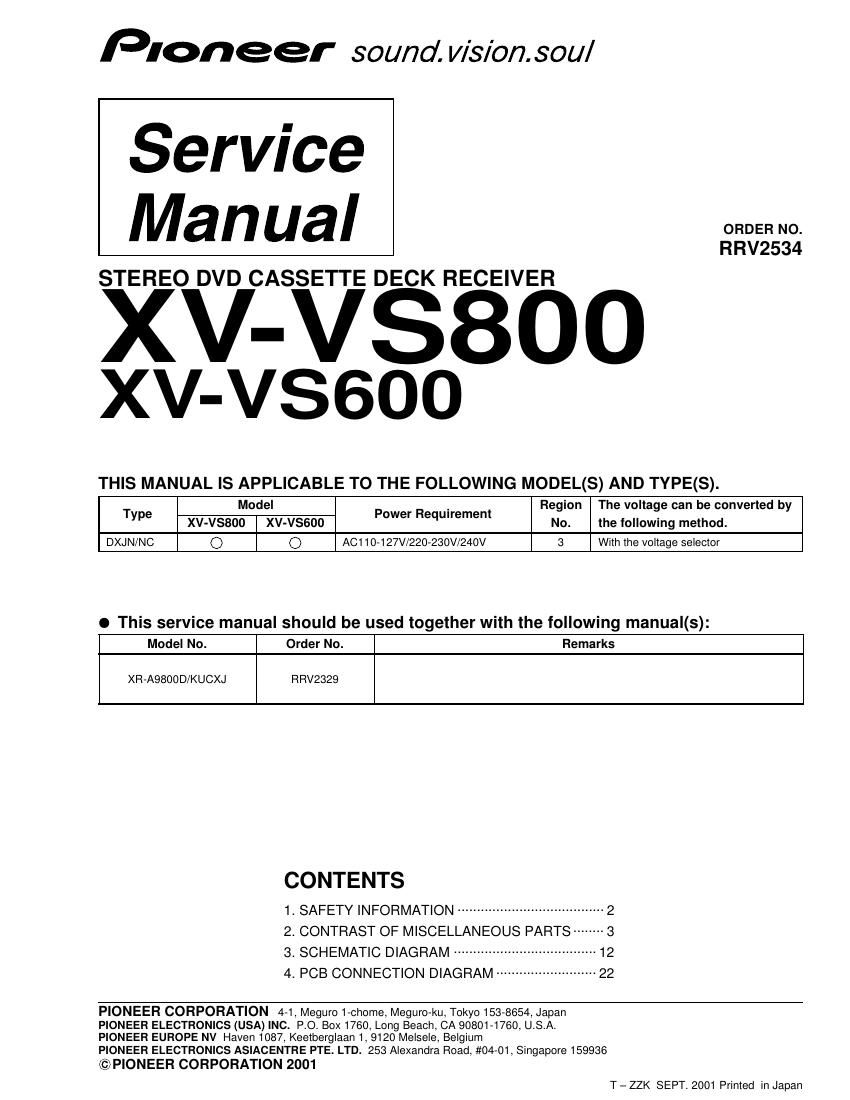

Page 1

Pioneer sound. vision. soul

Service
Manual

RRV2534
STEREO DVD CASSETTE DECK RECEIVER
XV- V S 6 O 0
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type Model Power Requirement Region The voltage can be converted by
XV-VSBOO XV-VSGOO No. the following method.
DXJN/NC Q Q ACl10-127V/220-230V/240V 3 With the voltage selector

O This service manual should be used together with the following manual(s):

Model No. Order No. Remarks
XR-A9800D/KUCXJ RRV2329
CONTENTS

1. SAFETY INFORMATION
2. CONTRAST OF MISCELLANEOUS PARTS --
3. SCHEMATIC DIAGRAM -----
4. PCB CONNECTION DIAGRAM

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. F'.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan l, 9120 Meisele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER CORPORATION 2001
T - ZZK SEPT. 2001 Printed in Japan

Page 2

XV-VSBOO, XV-VSGOO

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.

LABEL CHECK

WARNING !
THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1
BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR
CLASS 1.
A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS.

LASER DIODE CHARACTERISTICS
FOR DVD: MAXIMUM OUTPUT POWER :5 mW
WAVELENGTH :655 nm
OAUTION FOR CD : MAXIMUM OUTPUT POWER :SmW

VISIBLEAND INVISIBLE LASER WWW WHEN OPEN. WAVELENGTH : 785 nm
AVOID EXPOSURE iv BEAM.

CUIDADD

whom use? VISIBLE E INVISIBLEAL 55m AHIENTO
5mm mosicioii AL HAVE.

xawsooa

Additional Laser Caution

1. Inside detection sWitch ($201 on the SMEB assy) and loading
status detection sw1tch (89503 on the MOTOR assy) are detected
by the microprocessor (I011 In the DVDM assy).

- To permit the laser diode to oscillate, lI is required to set the
inside detection swttch for the inside position (8201 :ON) and to
set the loadingrstatus detection switch for the clamp position (the
center terminal of 89503 is shorted to +5V). The 655 nm laser
diode tor DVD oscillation will continue if pin 19 ct IC1 is shorted
to +5V (fault condition) In the DVDM assy.

The 785 nm laser diode for CD oscillates if pin 20 ot ICt is shorted
to +5V in the DVDM assy.

In the test mode * , the laser diode oscillates when microprocesr
sor detects a PLAY signal, or when the PLAY key is pressed
($5931 ON In the DISPLAY assy), With the above requirements

CLASS I Satistied.

LAS ER PROD UCT 2. When the cover is open. close viewtng through the objective lens
With the naked eye will cause exposure to the laser beam.

Printed on the Rear Panel

4 : Refer to page 82 on the service manual RRV2329.
