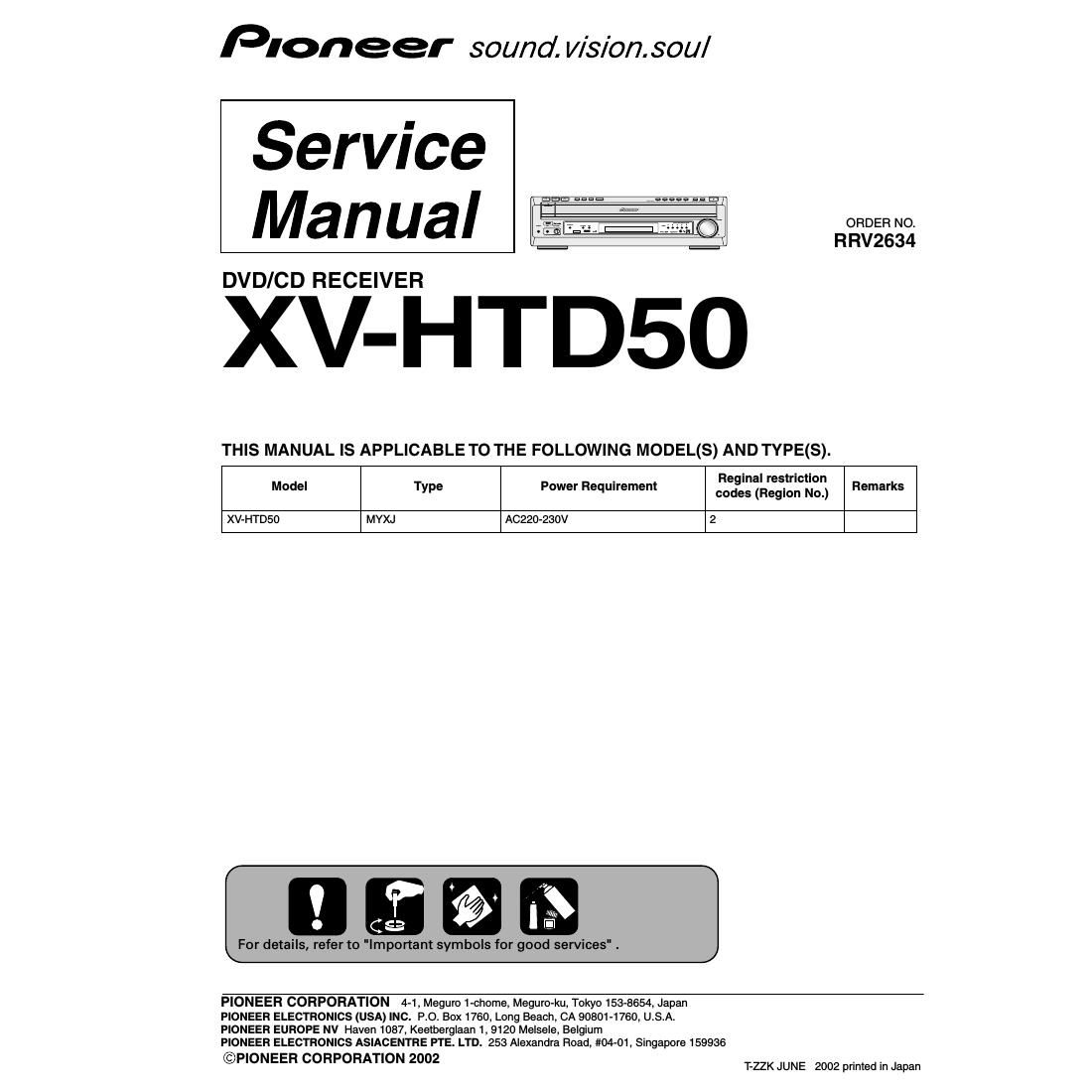

Pioneer sound. vision. sou/
Service
Manual
ORDER NO.
RRV2634
DVD/CD RECEIVER
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model Type Power Requirement 2323;332:2323 Remarks
XV-HTDSO MYXJ AC220-230V 2
For details, refer to "Important symbols for good services" .
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. F'.O. BOX 1760, Long Beach, CA 90801-1760, USA.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
{W
QPIONEER CORPORATION 2002 T-ZZK JUNE 2002 printed in Japan
1 - 2
SAFTY INFORMATION
WARNING
CLASS1.
THE AEL(ACCESS|BLEEM|SS|ON LEVEL)OF THE LASER POWER OUTPUT IS LESS THAN CLASS1
BUT THE LASERCOMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDINGTHE LIMIT FOR
A SPECIALLY INSTRUCTEDPERSON SHOULD DO SERVICINGOF'ERATION OF THEAPPARATUS.
7 LASER DIODE CHARACTERISTICS
FOR DVD: MAXIMUM OUTPUTPOWER: 5 mW
WAVELENGTH: 655 nm
MAXIMUM OUTPUTPOWER: 5mW
WAVELENGTH: 785 nm
FOR CD:
LABEL CHECK
Printed on the Rear Panel
CLASS I
LASER PRODUCT
CAUTION
. VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
' AVOID EXPOSURE TO BEAM.
. SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN
VORS/CHT ' AEDECKUNG GEOFFNET NIGHT DEM STRAHL AUSSETZENI
ADV ARSEL . SYNLIG OG USYNLIG LASERSTRAL-INES v50 ABNING
UNDGA UDSETTELSE FOR STHALING,
VARNING
. SVNLIG QCH oswvus LASEHSTRALNING NAR DENNA
- DEL AI: OPPNAD BETRAKTA El STRALEN.
VA ROI
. AVA TTAESSA AL TISIUT NAKVI/A VJA NAK YMA TTGMALLE
A LASEASA TEIL YLLE. ALA KA 750 SA TEESEN.
VRWIGQQ
Additional Laser Caution
. Inside detection switch (8201 on the SMEB assy) and clamp-
status detection switch (S11 on the TFISB assy) are detected by
the microprocessor (IC11 in the DVDM assy).
~To permit the laser diode to oscillate, it is required to set the
inside detection switch for the inside position (8201 :ON) and to
set the loading-status detection switch forthe clamp position (the
centerlerminal of S11 is shorted to +5V).The 655 nm laser diode
for DVD oscillation will continue if pin 19 ol IC1 is shorted to +5V
(fault condition) in the DVDM assy.
The 785 nm laser diode for CD oscillates if pin 20 of IC1 is shorted
to +5V in the DVDM assy.
In the lest mode * , the laser diode oscillates when microproces-
sor detects a PLAY signal, or when the PLAY key is pressed
($5817 ON in the KEYB assy), with the above requirements sat~
isfied.
. When the cover is open, close viewing through the objective lens
with the naked eye will cause exposure to the laser beam.
: See page 81.
2 XVHTDSO
1 I 2 3 I 4
