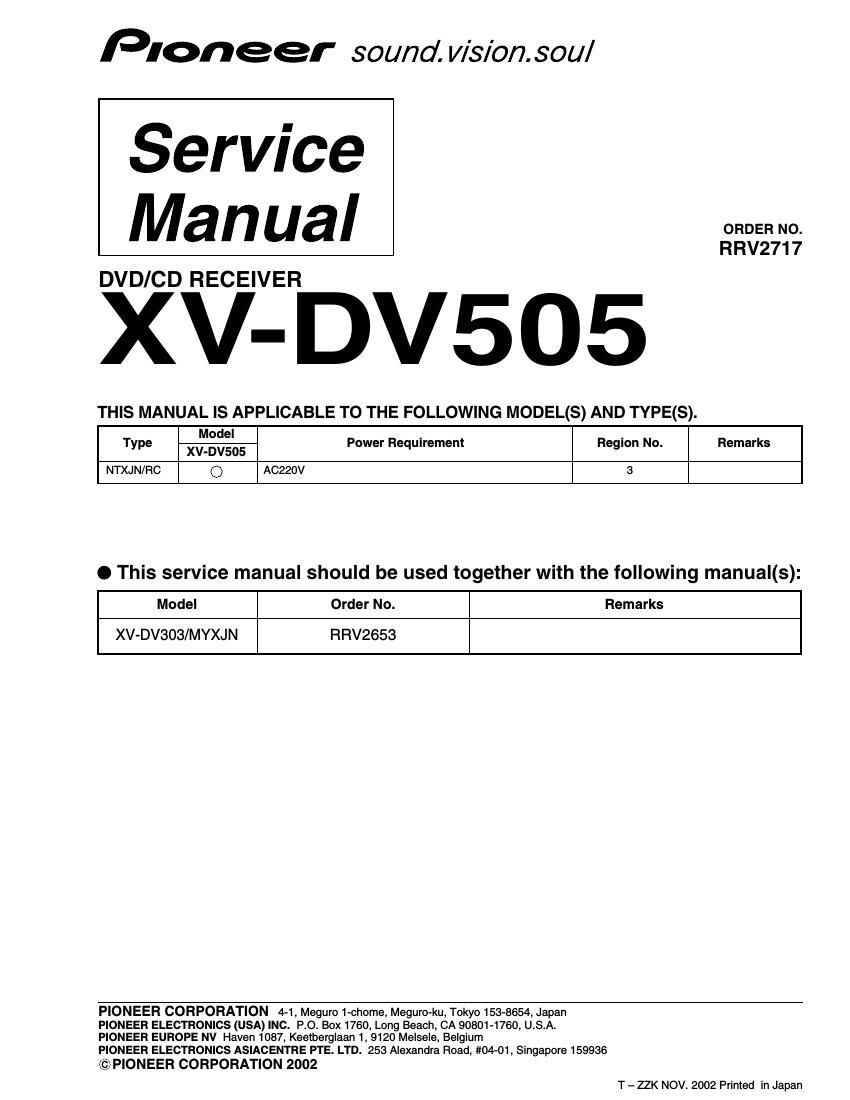

Pioneer sound. vision. soul
Service
Manual
RRV271T
DVD/CD RECEIVER
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type XJV-l 33:1) 5 Power Requirement Region No. Remarks
NTXJN/RC O A0220V 3
O This service manual should be used together with the following manual(s):
Model Order No. Remarks
XV-DVSOS/MYXJ N RRV2653
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. F'.O. BOX 1760, Long Beach, CA 90801-1760, USA.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©P|ONEER CORPORATION 2002
T - ZZK NOV. 2002 Printed in Japan
1. CONTRAST OF MISCELLANEOUS PARTS
NOTES: IParts marked by NSP are generally unavailable because they are not in our Master Spare Parts List
0 The E mark found on some component parts indicates the importance of the safety factor of the part
Therefore. when replacing, be sure to use parts of identical designation.
I Screws adjacent to V mark on product are used for disassemblyt
0 Reference Nost indicate the pages and Nost in the service manualfor the base model
C For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate)
0 When ordering resistors, first convert resistance values into codeform as shown in thefollowing examples
ExJ When there are 2 effective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K: 1 0% )t
560 Q -> 56 X 10 -> 561 tttttttttttttttttttttttttttttttttttttttttttttttttttttttt RBI/4P0
47k 0 -> 47 X 103 -> 473 t t
05 0 -> R50
1 0 -> 1R0 t.
Ex.2 When there are 3 effective digits (such as in high precision metalfilm resistors)
562k a -> 562 x 10 -> 5621 tttttttttttttttttttttttttttttttttttttttttttttttttttttt RN1/4PC El E F
O CONTRAST TABLE
XV-DV505/NTXJN/RC and XV-DV303/MYXJN are constructed the same except for the following:
Ref _ _ Part No.
N ' Mark Symbol and Description Remarks
0' XV-DV303/MYXJN XV-DV505INTXJN/RC
NSP DVD ASSY AXA7116 AXA7110
P9-1 L DVDM ASSY AWM7750 AWM7684
P9-4 FM/AM TUNER MODULE AXQ7229 AXQ7228
NSP DCSZ(PRO) MAIN ASSY AWM7730 AWM7757 * XV-DV505
P9-6 L CONTROL ASSY AWU8038 AWU8049
P7-2 FM Wire Antenna ADH7030 ADH7028
P7-8 Operating Instructions (English) AFIB7271 Not used
P7-9 Operating Instructions Basic ARE7301 Not used
(English/French)
P7-1O Operating Instructions Basic ARC7406 Not used
(German/Italian)
P7-11 Operating Instructions (German) ARC7407 Not used
P7-12 Operating Instructions Basic ARC7408 Not used
(Dutch/Spanish)
P7-13 Operating Instructions (Dutch) ARC7409 Not used
P7-14 Operating Instructions (French) ARC7436 Not used
P7-15 Operating Instructions (Italian) ARC7437 Not used
P7-16 Operating Instructions (Spanish) ARC7438 Not used
Operating Instructions (Thai) Not used ARC7470
Operating Instruction Basic (Thai) Not used ARC7469
P7-17 NSP Warranty Card ARY7022 Not used
P7-20 Packing Case AHD8074 AHD8161
P9-23 Rear Panel ANCBOQG ANCB176
P9-44 Getter Label DCSZ AAX7920 AAX7931
P9-45 Name Sheet AAX7927 AAX7949
P11-6 Display Window AAK8015 AAK8063
Notes: 0 For ASSEMBLIES, refer to CONTRAST OF PCB ASSEMBLIES,PCB PARTS LIST and 2t SCHEMATIC DIAGRAM?
2 xv-Dvsos
-
1 I 2 3 I 4
