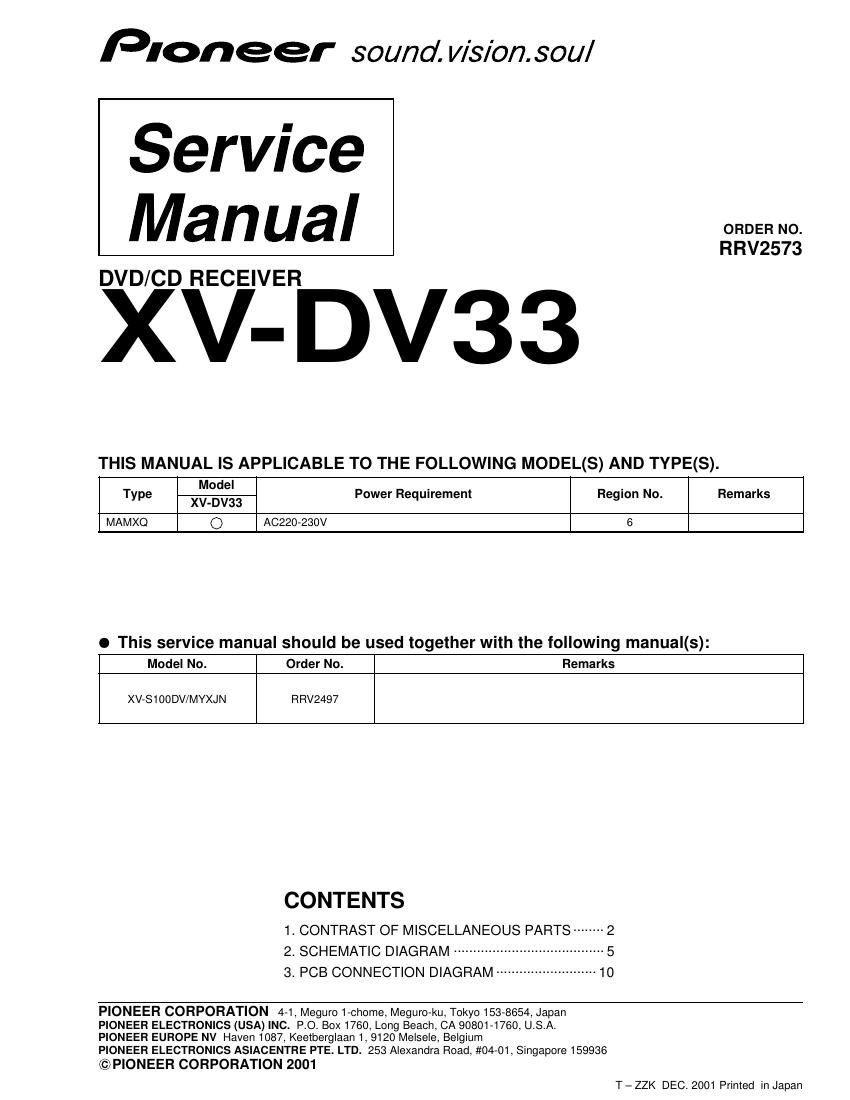

Pioneer sound. vision. soul
Service
Manual
DVD/CD RECEIVER
XV- DV33
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
ORDER NO.
RRV2573
Model . .
Type XV-DV33 Power Reqmrement Region No. Remarks
MAMXQ O A0220-230V 6
o This service manual should be used together with the following manual(s):
Model No. Order No. Remarks
XV-S100DV/MYXJN RRV2497
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS -------- 2
2_ SCHEMATIC D'AGRAM ....................................... 5
3_ PCB CONNECTION DIAGRAM .......................... 1O
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. PO. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©PIONEER CORPORATION 2001
T-ZZK DEC. 2001 Printed in Japan
XV-DV33
1. CONTRAST OF MISCELLANEOUS PARTS
NOTES: OParts marked by "NSF" are generally unavailable because they are not in our Master Spare Parts List.
0 The E markfound on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
0 Screws adjacent to V mark on product are used for disassemhly.
.Reference Nos. indicate the pages and Nos. in the service manualfor the base model.
0 When ordering resistors, first convert resistance values into codeform as shown in thefollowing examples.
Ex! When there are 2 eflective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
560 A 56 X 10 a 561
47k - 47X10' -- 473
0.5 4 R50 -- -
l 4 [KO - RS]PI®@K
EX.2 When there are 3 eflective digits (such as in high precision metalfilm resistors).
5.62k a 562 X 10 a 5621 -------------- RN1/4PCI IF
l CONTRAST TABLE
XV»DV33/MAMXQ and XV-St OODV/MYXJN are constructed the same except for the following :
Part No.
Ret. No. Mark Symbol and Description XV-S1OODV XV-DV33 Remarks
IMYXJN /MAMXQ
PCB ASSEMBLIES
NSP DCS MAIN ASSY AWM7634 AWM7662
P5- 2 CONTROL ASSY AWU7856 AWU7934
P5- 5 AMP ASSY AWU7935 AWU7857
NSP DCS COMPLEX ASSY AWM7635 AWM7641
P5- 7 POWER ASSY AWU7860 AWU7869
P6- 2 HP ASSY AWU7863 Not used
MIC ASSY Not used AWU7870 No. 1
PACKING SECTION
P3- 1 A Power Cord ADG1154 ADG7018
P3- 4 NSP Warranty Card ARY7022 ARY7046
P3- 9 Pad L AHA7360 AHA7370
P3-10 Pad R AHA7361 AHA7371
P3-11 Spacer AHB7059 Not used
P3-12 Packing Case AHD8038 AHD8051
P3-13 Packing Sheet AHG7065 PHFIOOI
P3-15 Operating Instructions (German/Italian) ARC7366 Not used
P3-16 Operating Instructions (German/Italian) ARC7367 Not used
P3-17 Operating Instructions (Dutch/Spanish) ARC7368 Not used
P3-18 Operating Instructions (Dutch/Spanish) ARC7369 Not used
P3-19 Operating Instructions (Swedish/Portuguese) ARC737O Not used
P3-20 Operating Instructions (Swedish/Portuguese) ARC7371 Not used
P3-21 Operating Instructions (English/French) ARE7290 Not used
P3-22 Operating Instructions (English/French) AFIE7291 Not used
Operating Instructions (Chinese) Not used ARC7380
Operating Instructions (Chinese) Not used ARC7381
EXTERIOR SECTION
P5-19 Rear Panel AN08009 ANCSOGZ
P5-38 Name Sheet AAX7879 AAX7898
P5-39 Getter Label DCS AAX7882 AAX7883
P5-4O Caution Label VRW1699 VRW1904
Label Not used VRWI739 *1
FRONT PANEL SECTION
P6- 6 Display Window AAK7941 AAK7913
MIC Knob Not used AAB7240 No. 2
Notes : The numbers in the remarks column correspond to the numbers on the EXPLODED VIEWS .
For PCB ASSEMBLIES, Refer to CONTRAST OF PCB ASSEMBLIES, PCB PARTS LIST", 2. SCHEMATIC DIAGRAM and
3. PCB CONNECTION DIAGRAM.
*1 Stick Label on the Rear Panel.
