Pioneer xvdv 323 service manual

This is the 5 pages manual for pioneer xvdv 323 service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 5
left right
pioneer xvdv 323 service manual

Extracted text from pioneer xvdv 323 service manual (Ocr-read)

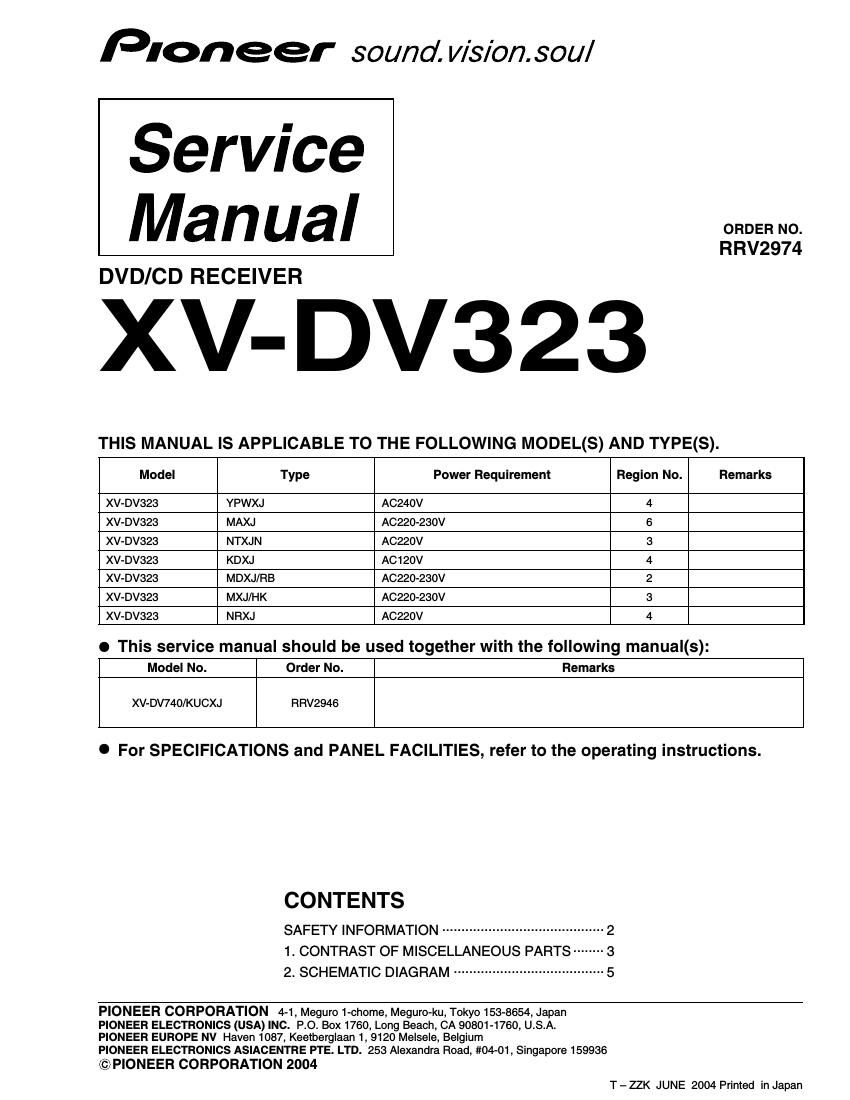

Page 1

2 1 23 4 1234 C D F A B E XV-DV323 SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do- it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual.Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING ! THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. LASER DIODE CHARACTERISTICS FOR DVD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 650 nm FOR CD : MAXIMUM OUTPUT POWER : 7 mW WAVELENGTH : 780 nm Additional Laser Caution 1. Laser Interlock Mechanism - Loading switch (S101 on the LOAB Assy) is used for interlock mechanism of the laser. When this switch turned ON in SW2 (CLOSE) side (OPEN signal is 0V and CLOSE signal is 3.5V), a laser becomes the status which can completely oscillation. Furthermore, the laser completely oscillates in the disc judgment and disc playback. When player is power ON state and laser diode is not completely oscillating, 780nm laser diode is always oscillating by half power. - Laser diode is driving with Q201 (650nm LD) and Q211 (780nm LD) on the DVDM Assy. Therefore, when short-circuit between the emitter and collector of these transistors or the base voltage is supplied for transistors turn on, the laser oscillates. (failure mode) - In the test mode -ˆ— , there is the mode that the laser oscillates except for the disc judgment and playback. LD ON mode in the test mode oscillates with the laser forcibly. The interlock mechanism mentioned above becomes invalid in this mode. 2. When the cover is open, close viewing through the objective lens with the naked eye will cause exposure to the laser beam. LABEL CHECK VRW1872 Name Label -ˆ— : Refer to page 78 on the service manual RRV2946. (MAXJ only) (Except MAXJ)VRW1904

Page 2

3 1 234 1 23 4 C D F A B E XV-DV323 1. CONTRAST OF MISCELLANEOUS PARTS jpfy For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: -When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 -„¦-†’56 Γ— 10 1 -†’561 ........................................................ RD1/4PU 5 6 1 J 47k -„¦-†’47 Γ— 10 3 -†’473 ........................................................ RD1/4PU 4 7 3 J 0.5 -„¦-†’R50 ..................................................................................... RN2H R 5 0 K 1 -„¦-†’1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k -„¦-†’562 Γ— 10 1-†’5621 ...................................................... RN1/4PC 5 6 2 1 F CONTRAST TABLE Part No. No. Mark Symbol and Description XV-DV740 XV-DV323 XV-DV323 XV-DV323 Remarks /KUCXJ /YPWXJ /MAXJ /NTXJN PCB ASSEMBLIES NSP MAIN ASSY XWM3253 XWM3240 XWM3241 XWM3244 P9- 5 CONTROL ASSY XWZ3882 XWZ3863 XWZ3864 XWZ3867 NSP COMPLEX ASSY XWM3256 XWM3246 XWM3246 XWM3246 P9- 8 POWER ASSY XWZ3885 XWZ3871 XWZ3871 XWZ3871 PACKING SECTION P7- 1 Power Cord ADG7021 ADG7099 ADG7079 ADG1154 P7- 2 FM Wire Antenna ADH7030 ADH7030 ADH7030 ADH7034 P7- 8 Operating Instructions (English) XRB3037 XRB3036 Not used Not used P7-14 Operating Instructions (French) XRC3147 Not used Not used Not used Operating Instructions (Chinese) Not used Not used XRC3134 Not used Operating Instructions (Thai) Not used Not used Not used XRC3133 P7-17 Operating Instructions (English/French) XRE3084 XRE3081 Not used Not used Operating Instructions (Chinese) Not used Not used XRC3149 Not used Operating Instructions (Thai) Not used Not used Not used XRC3148 P7-21 Packing Case XHD3433 XHD3417 XHD3428 XHD3449 P7-23 NSP Warranty Card ARY7045 ARY7047 ARY7046 Not used EXTERIOR SECTION P9- 4 FM/AM TUNER Unit AXX7172 AXX7173 AXX7170 AXX7173 P9-14 Power Transformer (AC120V) XTS3075 Not used Not used Not used P9-14Power Transformer (AC240V) Not used XTS3078 Not used Not used P9-14Power Transformer (AC220-230V) Not used Not used XTS3077 XTS3077 P9-15Fuse (FU1 : 6.3A) REK1069 Not used Not used Not used P9-15 Fuse (FU1 : T2.5A) Not used REK1026 REK1026 REK1026 P9-16Fuse (FU2 : 6.3A) REK1069 Not used Not used Not used P9-16Fuse (FU2 : T5.0A) Not used REK1029 REK1029 REK1029 P9-23 NSP Chassis XNA3017 XNA3017 XNA3017 XNA3022 P9-24 Rear Panel XNC3298 XNC3283 XNC3286 XNC3281 P9-25 Tray Cap Assy XXG3179 XXG3179 XXG3179 XXG3194 P9-28 DSP Holder XNG3109 XNG3109 XNG3109 XNG3128 P9-54 Name Label XAX3456 XAX3454 XAX3477 XAX3454 P9-55 NSP Fuse Card AAX2374 Not used Not used Not used P9-63 NSP Energy Star Label AAX8022 AAX8022 Not used Not used Push Rivet Not used Not used Not used XEC3034 No. 1 Fan Barrier Not used Not used Not used XMR3089 No. 2 Caution Label Not used VRW1872 VRW1904 VRW1872*1 NSP CCC S&E Label Not used Not used VRW1945 Not used FRONT SECTION P11- 8 Display Window XAK3450 XAK3450 XAK3450 XAK3472 P11- 9 Front Panel XMB3155 XMB3163 XMB3163 XMB3163 P11-17 F.L Barrier XEC3055 Not used Not used Not used XV-DV323/YPWXJ, MAXJ, NTXJN and XV-DV740/KUCXJ are constructed the same except for the following : Notes : For PCB ASSEMBLIES, Refer to CONTRAST OF PCB ASSEMBLIES and 2. SCHEMATIC DIAGRAM. The numbers in the remarks column correspond to the numbers on the EXPLODED VIEWS . *1 Refer to LABEL CHECK.
