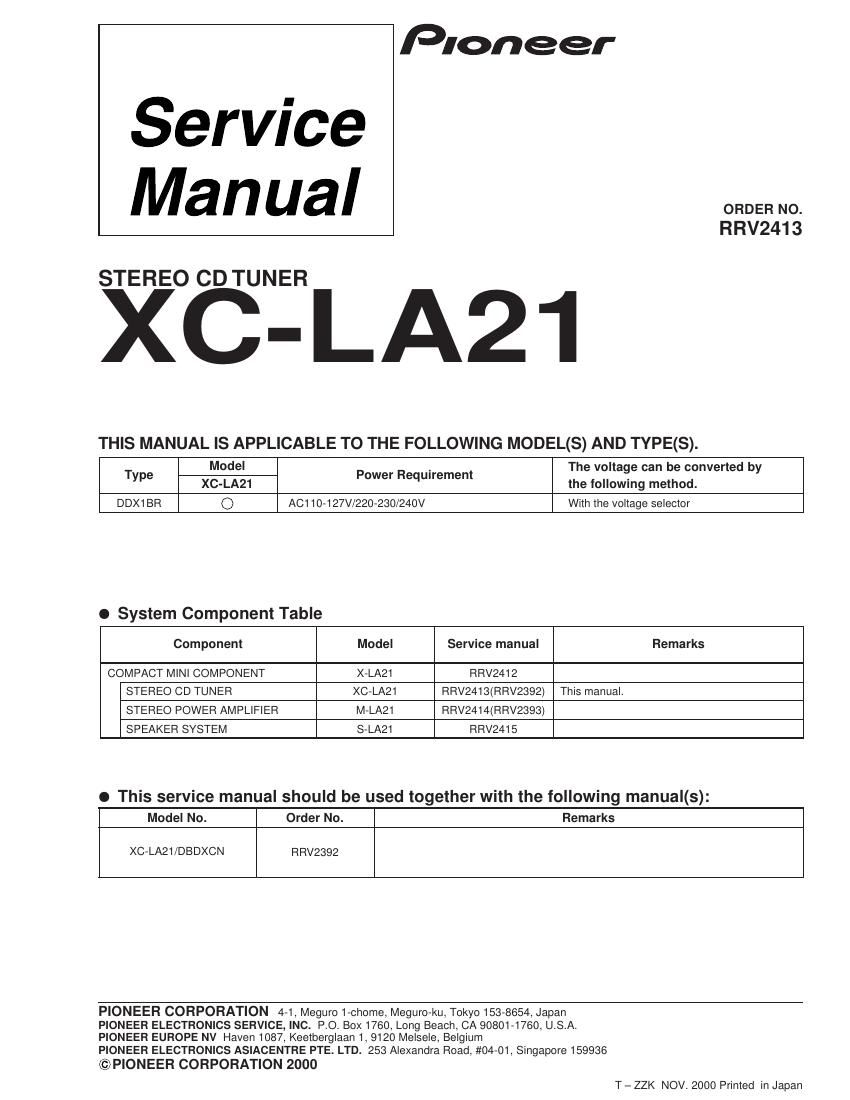

XC-LA21
2
1. CONTRAST OF MISCELLANEOUS PARTS
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to mark on product are used for disassembly.
Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES:
CONTRAST TABLE
Part No.
Ref. No. Mark Symbol and Description XC-LA21 XC-LA21 Remarks
/DBDXCN /DDX1BR
PACKING (X-LA21) SECTION
P3-8(1/2) Polyform Unit (Rear) 800PMT190001 BR00LA004
P3-8(2/2) Polyform Unit (Front) 800PMT190001 BR00LA003
P3-9(1/2) Polyfoam (Speaker) (Top) 800PMT390001 BR00LA005
P3-9(2/2) Polyfoam (Speaker) (Bottom) 800PMT390001 BR00LA006
P3-10 Poly Foam Sheet (C) SP 801999000002 801999000005
P3-11 Polythene foam Sheet 801999000005 801999000005
P3-16 Operating Instructions (English/Spanish/Chinese) 811PMT391011 BR811PMT391011
P3-17 Carton 813PMT393020 BR813PMT393020
P3-18 Corrugate Card 815001405213 BR815001405213
NSP Warranty Card Not used BR0090001
NSP Service Station List Not used BR0080001
EXTERIOR SECTION
P5-60 Transport Stopper PL 650PMT197010 BR650PMT197010
P5-69 Voltage Caution Label Not used 809PMT394060
P5-70 Warning Label 809PMT394011 809PMT394050
P5-71 Back Label 809PMT396031 809PMT396020
P5-85 CD Caution Label 809PMT194070 BR809PMT194070
P5-89 NSP Serial Label 809000009000 BR00LA0001
XC-LA21/DBDXCN and DDX1BR are constructed the same except for the following :
