Pioneer xhx 700 service manual
This is the 51 pages manual for pioneer xhx 700 service manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

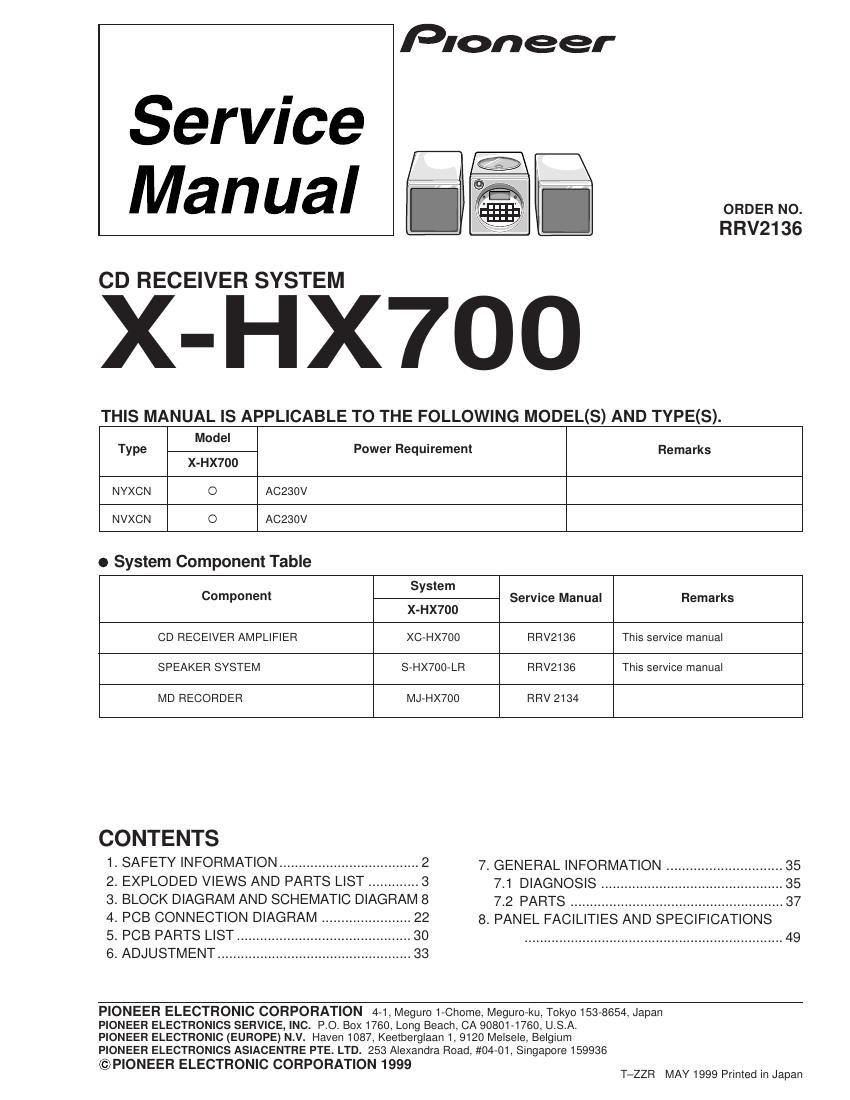

Extracted text from pioneer xhx 700 service manual (Ocr-read)
Page 1
Service
Manual
ORDER NO.
RRV2136
CD RECEIVER SYSTEM
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
M d I
Type 0 e Power Requirement Remarks
x-Hx7oo
NYXCN O AC230V
NVXCN O AC230V
0 System Component Table
System
Component Service Manual Remarks
X-HX700
CD RECEIVER AMPLIFIER XC-HX7OO RRV2136 This service manual
SPEAKER SYSTEM S-HX700-LR RRV2136 This service manual
MD RECORDER MJ-HX700 RRV 2134
CONTENTS
1. SAFETY INFORMATION ----- -2 7. GENERAL INFORMATION 35
2. EXPLODED VIEWS AND PARTS LIST ......
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 8
4. PCB CONNECTION DIAGRAM
5. PCB PARTS LIST
6. ADJUSTMENT...
3
7.1 DIAGNOSIS
7.2 PARTS
8. PANEL FACILITIES AND SPECIFICATIONS
............................................ 49
.35
.37
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©P|ONEER ELECTRONIC CORPORATION 1999
T-ZZR MAY 1999 Primed in Japan
Page 2
X-HX700
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
IMPORTANT
THIS PIONEER APPARATUS CONTAINS LASER DIODECHARACTERISTICS -
LASER OF CLASS I. MAXIMUM OUTPUT POWER: 5 mw
SERVICING OPERATION OF THE APPARATUS WAVELENGTH: 780 7 785 nm
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PEFISON.
LABEL CHECK
RIS
K OF CTR
DD MOT UPEH
ATTENTION
DANGER DELECTRDCUTION NE PAS OUVRIR
GGSQD-A
CLASS 1
LASER PRODUCT
