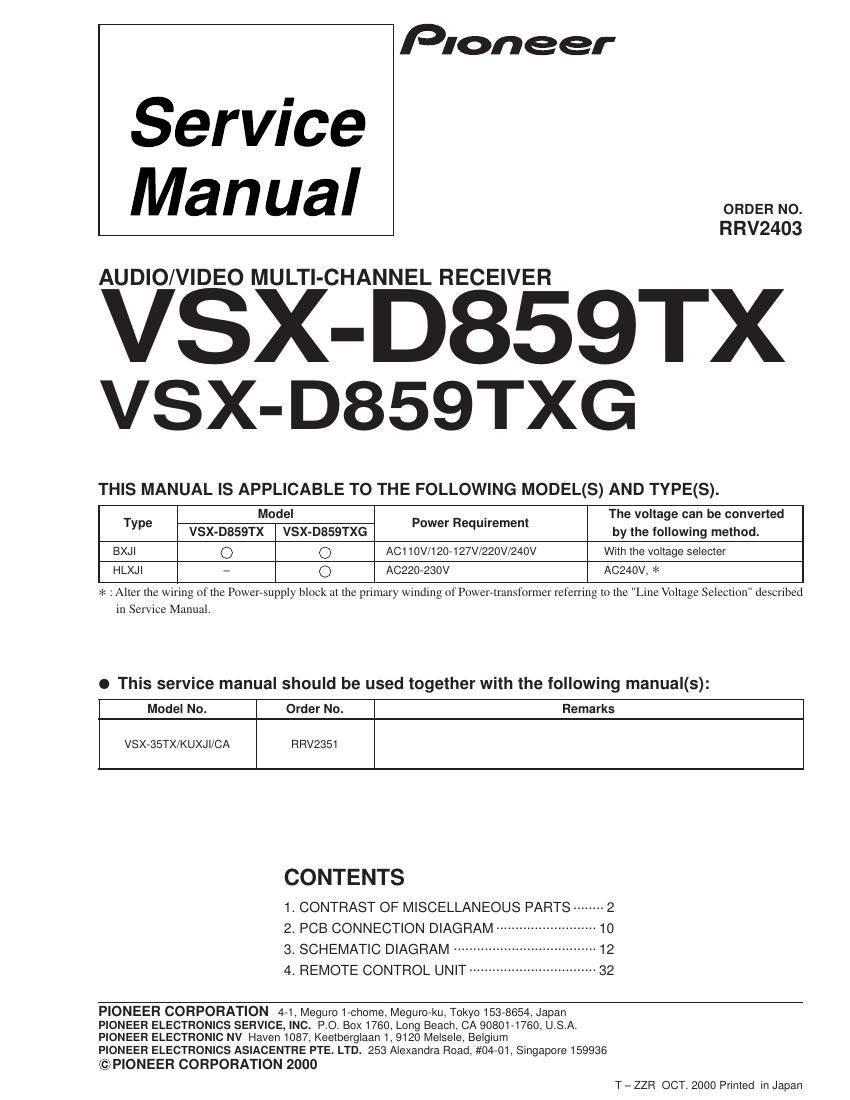

Page 1
Pioneer
Service
Manual
RRV2403
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSX-D859TX
VSX-D859TXG
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type Model Power Requirement The voltage can be converted
VSX-D859TX VSX-D859TXG by the following method.
BXJI Q Q AC110V/120-127V/220V/240V With the voltage selecter
HLXJI - Q A0220-230V A0240v, *
>l< : Alter the wiring uflhe Powei'esupply block at the primary winding of Powerelreinsformer referring to the "Line Voltage Selection described
in Service Manual.
0 This service manual should be used together with the following manual(s):
Model No. Order No. Remarks
VSX-35TX/KUXJl/CA RRV2351
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS -------- 2
2. PCB CONNECTION DIAGRAM -- 10
3. SCHEMATIC DIAGRAM -- 12
4. REMOTE CONTROL UNIT-- -- 32
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©P|ONEER CORPORATION 2000
T - ZZR OCT. 2000 Printed in Japan
