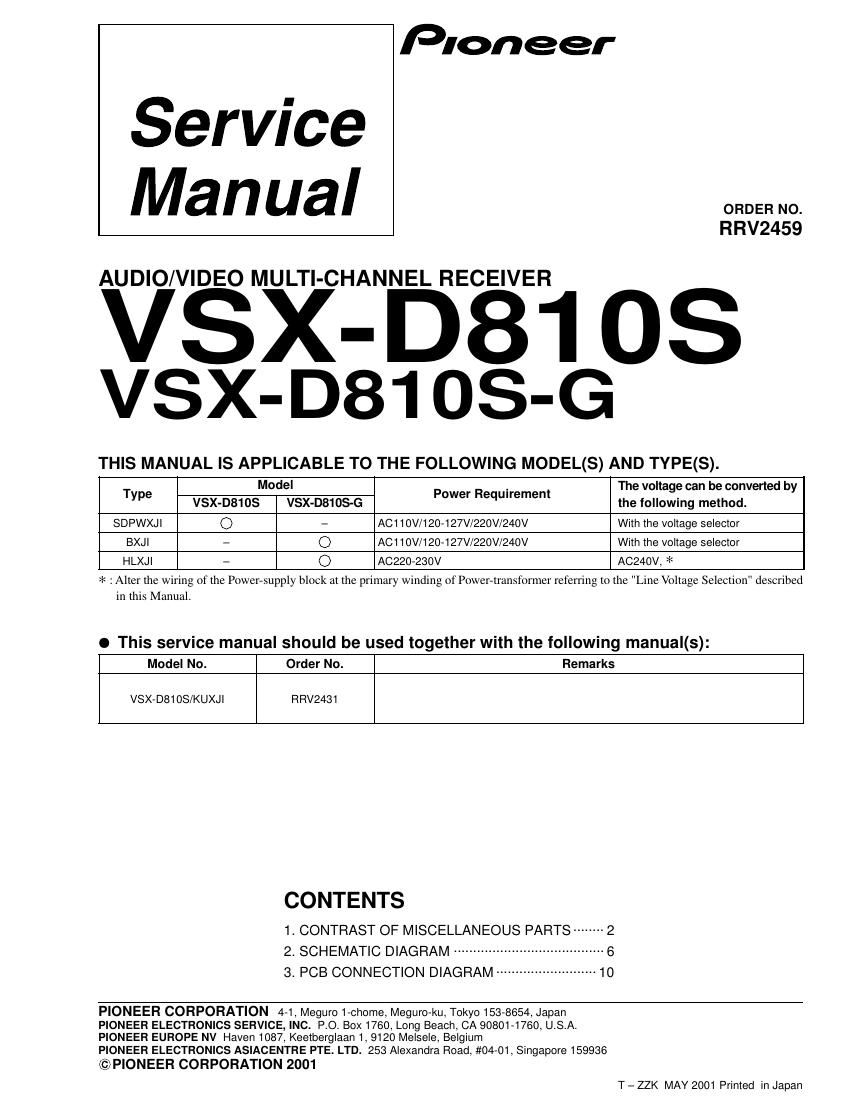

Page 1
Pioneer
Service
Manual
RRV2459
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSX-D81 OS
VSX-D81 OS-G
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type Model Power Requirement The voltage can be converted by
VSX-D81OS VSX-DB1OS-G the tollowrng method.
SDPWXJI O - AC110V/120-127V/220V/240V With the voltage selector
BXJI - O AC110V/120-127V/220V/240V With the voltage selector
HLXJI - O A0220-230V A0240v, *
* : Alter the wiring of the Powersupply block at the primary winding of Poweretrausformer referring to the "Line Voltage Selection described
in this Manual.
0 This service manual should be used together with the following manual(s):
Model No. Order No. Remarks
VSX-D81OS/KUXJI RRV2431
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS -------- 2
2. SCHEMATIC DIAGRAM --------------- 6
3. PCB CONNECTION DIAGRAM --1O
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan I, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©P|ONEER CORPORATION 2001
T - ZZK MAY 2001 Printed in Japan
