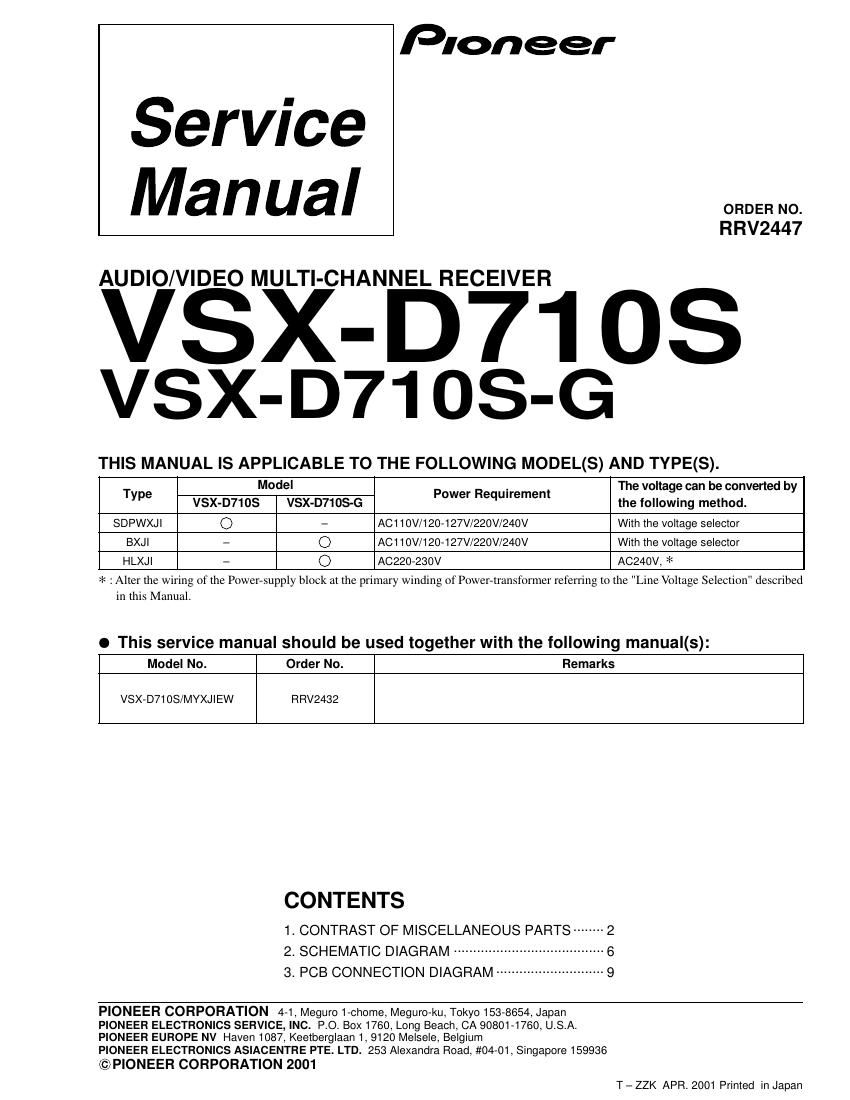

Service
Manual

AUDIO/VIDEO MULTI-CHANNEL RECEIVER

Pioneer

ORDER NO.
RRV2447

VSX-D71 OS
VSX-D71 OS-G

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Type Model Power Requirement The voltage can be converted by
VSX-D71OS VSX-D71OS-G the tollowrng method.
SDPWXJI O - AC110V/120-127V/220V/240V With the voltage selector
BXJI - O AC110V/120-127V/220V/240V With the voltage selector
HLXJI - O A0220-230V A0240v, *

* : Alter the wiring of the Powersupply block at the primary winding of Poweritrausformer referring to the "Line Voltage Selection described

in this Manual.

0 This service manual should be used together with the following manual(s):

Model No. Order No. Remarks
VSX-D7108/MYXJIEW RRV2432
CONTENTS

1. CONTRAST OF MISCELLANEOUS PARTS -------- 2

2. SCHEMATIC DIAGRAM ---------------
3. PCB CONNECTION DIAGRAM

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE, INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©PIONEER CORPORATION 2001

T-ZZK APR. 2001 Printed in Japan

Page 2

VSX-D71OS, VSX-D71OS-G

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES: OParts marked by "NSF" are generally unavailable because they are not in our Master Spare Parts List.
I The /I\ markfound on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
0 Screws adjacent to Y mark on product are used for disassembly.
lReference Nos. indicate the pages and Nos. in the service manualfor the base model.
I When ordering resistors, first convert resistance values into codeform as shown in thefiJIIowing examples.
Ex! When there are 2 eflective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
560 _ 56 X 10 -*
47k -' 47 X 10' a
0.5 d R50 --
1 - 1R0
E.tr.2 When there are 3 effective digits (such as in high precision metalfilm resistors).
5.62k 562 X 10 _ 5621 --------- ----- RN1/4PC-
I CONTRAST TABLE
VSX-D7108/SDPWXJI, VSX»D71OS-G/BXJI, HLXJI and VSX-D7108/MYXJIEW are constructed the same except for
the following :
Part No.
Ret. No. Mark Symbol and Description VSX-D71OS VSX-D71OS VSX-D71OS-G VSX-D71OS-G Remarks
/MYXJIEW /SDPWXJI /BXJI /HLXJI
PCB ASSEMBLIES
P5- 1 DD & INPUT ASSY XWX3027 XWX3026 XWX3026 XWX3026
NSP AMP&PS ASSY XWK3020 XWK3021 XWK3021 XWK3020
P5- 2 AMP&PR|MARY ASSY XWZ3377 XW23378 XWZ3378 XWZ3377
P5-12 NSP TRANS IASSY XWZ3390 Not used Not used XWZ3390
VOLTAGE SELECT SW ASSY Not used XW23393 XWZ3393 Not used No. 1
NSP COMPLEX ASSY XWK3006 XWK3007 XWK3007 XWK3008
P6- 1 - FRONT ASSY XWZ3341 XW23342 XWZ3342 XW23343
PACKING SECTION
P3- 1 FM Wire Antenna ADH7005 ADH7004 ADH7004 ADH7004
P3- 2 NSF Warranty Card ARY7022 Not used Not used Not used
P3- 5 Operating Instructions (English) XRB3005 Not used Not used Not used
P3- 6 Operating Instructions (German) XRC3031 Not used Not used Not used
P3- 7 Remote Control Unit XXD3029 XXD3028 XXD3028 XXD3028
P3-13 Packing Case XHD3151 XHD3156 XHD3158 XHD3157
P3-14 Operating Instructions XR03032 Not used Not used Not used
(Dutch/Spanish/Portuguese)
P3-15 Operating Instructions XRC3033 Not used Not used Not used
(French/Italian/Swedish)
Operating Instructions Not used XRE3038 XFIE3038 XRE3038
(English/Chinese/Spanish)
Caution 220V Label Not used ARR1003 ARR1003 Not used
A AC Plug Adapter Not used Not used AKX7011 Not used Accessories
EXTERIOR SECTION
P5-11 FM/AM TUNER Unit AXX7048 AXX7047 AXX7047 AXX7047
P5-15 A Power Transformer (AC220-230V) XTS3046 Not used Not used XTS3046
P5-15 A Power Transformer Not used XT33048 XTS3048 Not used
(AC110V/120-127V/220V/240V)
P5-16 A Fuse (FU1 :T2.5A/250V) REK1026 Not Used Not used REK1026
P5-16 A Fuse (FU1 1T6.3A/250V) Not used REK1030 FIEK1030 Not Used
P5-19 Strain Relief/Cord Bush CM-22B AEC7317 AEC7317 CM-ZZB
P5-20 A AC Power Cord VDG1077 XDG3010 XDG3010 VDG1077
P5-37 Insulator (Front side) PNW2766 Not used PNW2766 PNW2766
P5-37 Insulator/Foot Assy (Rear side) PNW2766 REC1263 FIEC1263 REC1263
