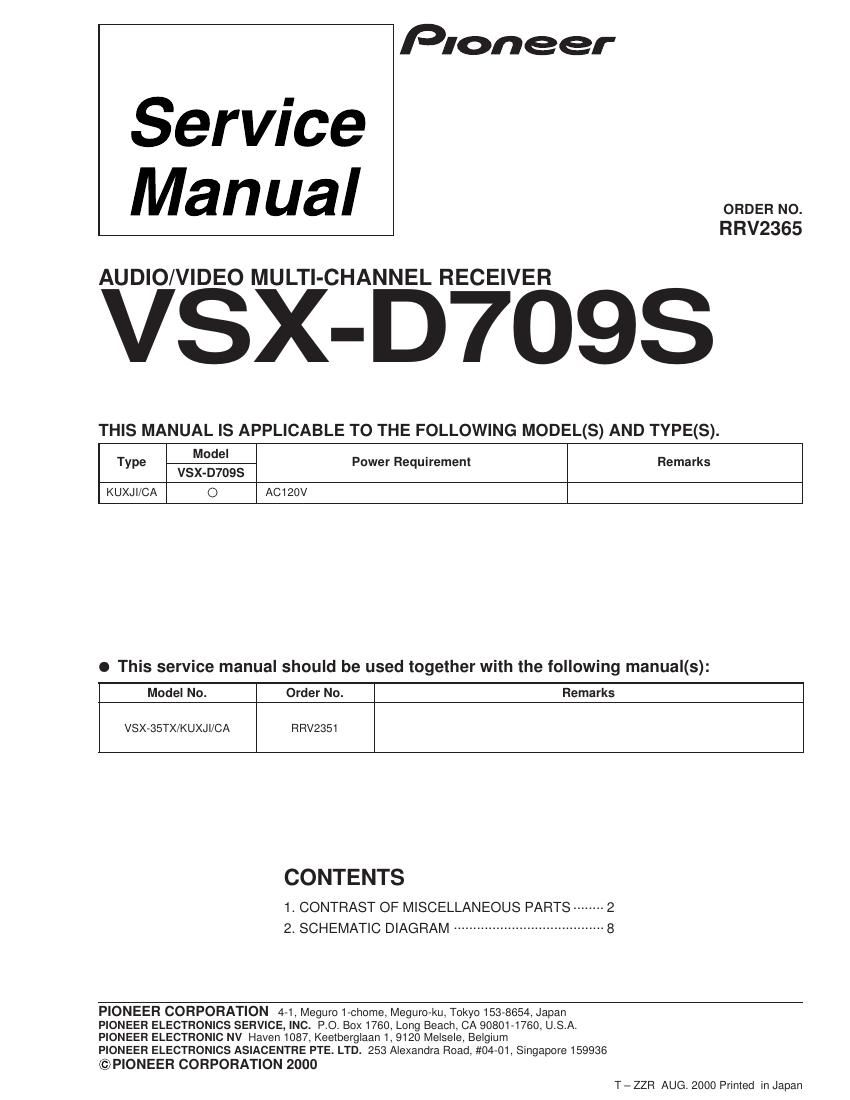

Page 1

Pioneer

Service
Manual

RRV2365

AUDIO/VIDEO MULTI-CHANNEL RECEIVER

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Type Model Power Requirement Remarks
VSX-D7095
KUXJI/CA O AC120V

I This service manual should be used together with the following manual(s):

Model No. Order No. Remarks
VSX-SSTX/KUXJI/CA RRV2351
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS -------- 2
2_ SCHEMATIC DIAGRAM ....................................... 8

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER CORPORATION 2000
T - ZZR AUG. 2000 Printed in Japan

Page 2

VSX-D7095

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES: 0 Parts marked by "NSF" are generally unavailable because they are not in our Master Spare Parts List.
0 The A markfound on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
I Screws adjacent to V mark on product are used for disassembly.
.Reference Nos. indicate the pages and Nos. in the service manual for the base model.
0 When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex] When there are 2 effective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
560 a 56 X 10 a 561
47k * 47X10 -- 473
0.5 * R50 -- -
l 4 [KO -RS1P-®@K
Ex.2 When there are 3 eflective digits (such as in high precision metalfilm resistors).
5.6Zk * 562 X 10 a 5621 -------------- RNI/4PC- IF

l CONTRAST TABLE
VSX-35TX/KUXJI/CA and VSX-D7OQS/KUXJI/CA are constructed the same except for the following:
R f Part No.
e . . .
No. Mark Symbol and Description VSX-35TX VSX-D7098 Remarks
lKUXJI/CA /KUXJI/CA
PCB ASSEMBLIES
NSP MAIN ASSY AWK7591 AWK7615
P5- 5 MAIN CONTROL ASSY AWX7560 AWX7618
P5-t7 DSP ASSY AWX7561 AWX7611
NSP COMPLEX ASSY AWK7592 AWK7613
P5- 2 EX |/O(5.1 CH I/O) ASSY AWX7568 AWX7613
P5- 6 A-CONNECTION ASSY AWX7566 AWX7619
P5- 9 V-CONNECTION ASSY AWX7567 AWX7717
P5-13 TRANS2- 2 ASSY AWX7565 AWX7720
NSP POWER ASSY AWK7593 AWK7598
P5- 4 INPUT ASSY AWX7573 AWX7585
P5-1 0 SP/PS ASSY AWX7571 AWX7721
NSP FRONT ASSY AWK7594 AWK7617
P5- 7 COMPOSITE ASSY AWX7581 AWX7617
P5- 8 8 VIDEO ASSY AWX75BO AWX7616
P7- 1 DISPLAY ASSY AWX7574 AWX7620
P7- 6 FRONT DIGIN ASSY AWX7648 Not used
PACKING SECTION
P3- 3 Operating Instructions(English) ARB7222 ARB7224
P3- 4 Remote Control Unit AXD7266 AXD7268
P3- 8 Packing Case AHD7860 AHD7867
P3-11 NSP Warranty Card ARY7007 ARY7045
EXTERIOR SECTION
P5-31 Rear Panel ANC791O ANC7941
P5-41 Teminal Screw AKE-O3t Not used
FRONT PANEL SECTION
P7- 9 4P Flexible Cable/60V ADD7238 Not used
P7-12 5P Shield with Housing ADX7344 Not used
P7-14 Door AMB7692 AMB7697
P749 Digital Cap 35 AAD7576 Not used
P7-21 Window AAK7769 AAK7733
P7-22 Door Sheet AAK7783 AAK7780
P7-25 Front Panel AM B7691 AMB7715

Notes : O For PCB ASSEMBLIES, Refer to CONTRAST OF PCB ASSEMBLIES"a11d 2. SCHEMATIC DIAGRAM.
