Pioneer vsxd 607 service manual

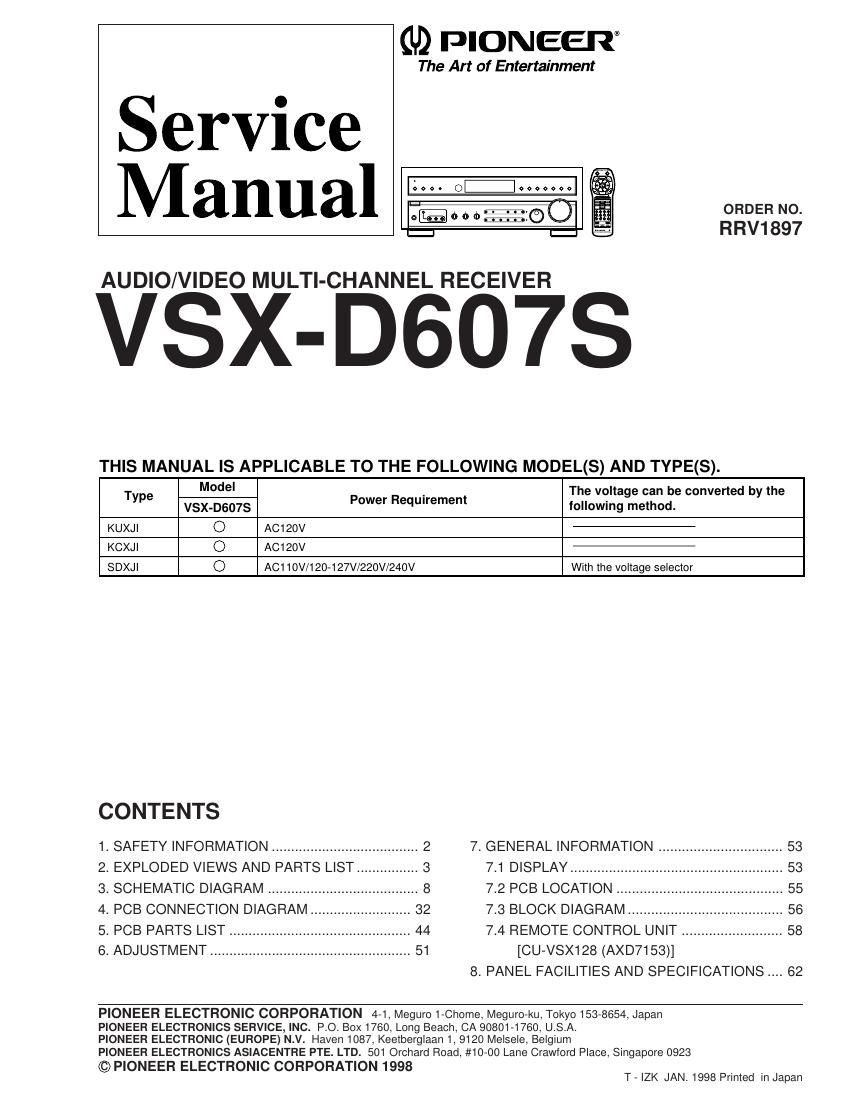

Page 1

(U) PIONEER®

The Art of Entertainment

ervice
Manual +«

' l-

ORDER NO.
RRV1897

AUDIO/VIDEO MULTI-CHANNEL RECEIVER

VSX-D607S

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Type $5378 Fewer Requirement ,Tgmgggnfigggge mm by 6

KUXJI O A0120v

KCXJI O A0120v

SDXJI O A0110V/120-127V/220V/240V With the voitage selector
CONTENTS
1, SAFETY INFORMATION ...................................... 2 7. GENERAL INFORMATION ................................ 53
2, EXPLODED VIEWS AND PARTS LIST ..... 7.1 DISPLAY ................. 53
3, SCHEMATIC DIAGRAM ..... . 8 7,2 PCB LOCATION .. . 55
4, PCB CONNECTION DIAGRAM 7.3 BLOCK DIAGRAM .. 56
5, PCB PARTS LIST ..... 7,4 REMOTE CONTROL UNIT .......................... 58

6, ADJUSTMENT .......... [CU»VSX128 (AXD7153)]

8. PANEL FACILITIES AND SPECIFICATIONS 62

PIONEER ELECTRONIC CORPORATION 4-1, Meguro1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. PO. Box 1760, Long Beach, CA 90801-1760, USA.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Meisele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923
© PIONEER ELECTRONIC CORPORATION 1998
T - IZK JAN. 1998 Printed in Japan

Page 2

VSX-D607S

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.

improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you

should not risk trying to do so and refer the repair to a qualified service technician.

WARNING

Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which may
cause birth defects or other reproductive harm (California Health & Safety Code, Section 25249.5).

When servicing or handling circuit boards and other components which contain lead in solder, avoid unprotected skin contact with
the solder. Also, when soldering do not inhale any smoke or fumes produced.

NOTICE
(FOR CANADIAN MODEL ONLY)

Fuse symbols -EE- (fast operating fuse) and/or {EE- (slow operating fuse) on PCB indicate that replacement parts must

be of identical designation.

REMARQUE .
(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible -EE- (fusible de type rapide) et/ou -EE- (fusible de type lent) sur CCI indiquent que les pieces

de remplacement doivent avoir la meme designation.

_ (FOR USA MODEL ONLY)

1. SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service
technician.

LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground (water
pipe, conduit, etc.) by connecting a leakage current tester
such as Simpson Model 2292 or equivalent between the
earth ground and all exposed metal parts of the appliance
(input/output terminals, screwheads, metal overlays, control
shaft, etc.). Plug the AC line cord of the appliance directly
into a 120V AC GOHZ outlet and turn the AC power switch
on. Any current measured must not exceed 0.5mA.

0 Reading should
Leakage not be above

Device current 0.5mA
under tester
test =I _I+
Test all
exposed metal
surfaces
%
® Also test with
plug reversed ? Earth
(Using AC adapter ground

plug as required)

AC Leakage Test

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL
SHOCK HAZARD AND MUST BE CORRECTED BEFORE
RETURNING THE APPLIANCE TO THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the protection
afforded by them necessarily can be obtained by using
replacement components rated for voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this Service Manual.

Electrical components having such features are identified
by marking with a A on the schematics and on the parts list
in this Service Manual.

The use of a substitute replacement component which does
not have the same safety characteristics as the PIONEER
recommended replacement one, shown in the parts list in
this Service Manual, may create shock, fire, or other hazards.

Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER Service
Manual. A subscription to, or additional copies of, PIONEER
Service Manual may be obtained at a nominal charge from
PIONEER.
