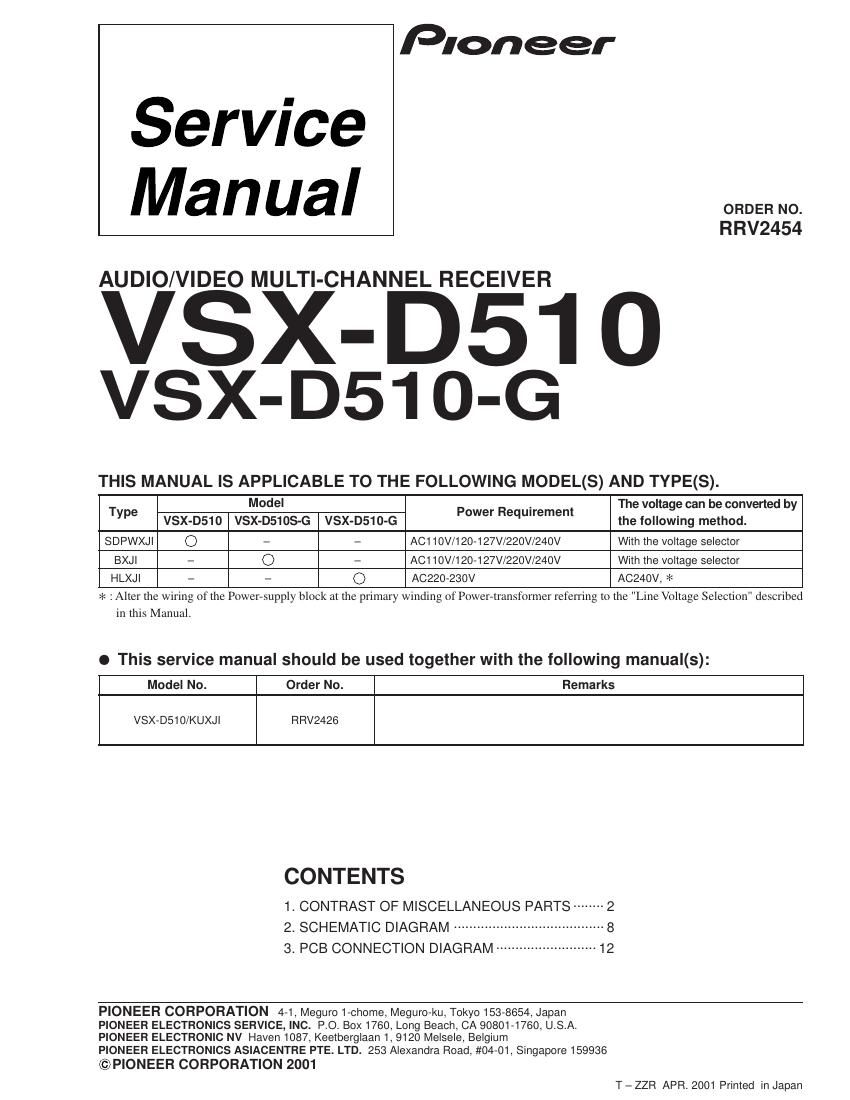

Page 1
Pioneer
Service
Manual
RRV2454
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSX-D51 0
vex-051 O-G
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type Model Power Requirement The voltage can be converted by
VSX-D510 VSX-D51OS-G VSX-D510-G the lollowmg method.
SDPWXJI O - - AC11OV/120-127V/220V/240V With the voltage selector
BXJI - C) - AC110V/120-127V/220V/240V With the voltage selector
HLXJI - - O A0220-23OV ACZ4OV, *
>l< :Aller the wiring uflhe Powei'esupply block at the primary winding of Puwerelransformer referring to the "Line Voltage Selection described
in this Manual.
0 This service manual should be used together with the following manual(s):
Model No. Order No. Remarks
VSX-D510/KUXJI RRV2426
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS -------- 2
2. SCHEMATIC DIAGRAM --------------- 8
3. PCB CONNECTION DIAGRAM -- 12
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©P|ONEER CORPORATION 2001
T -ZZR APR. 2001 Printed in Japan
