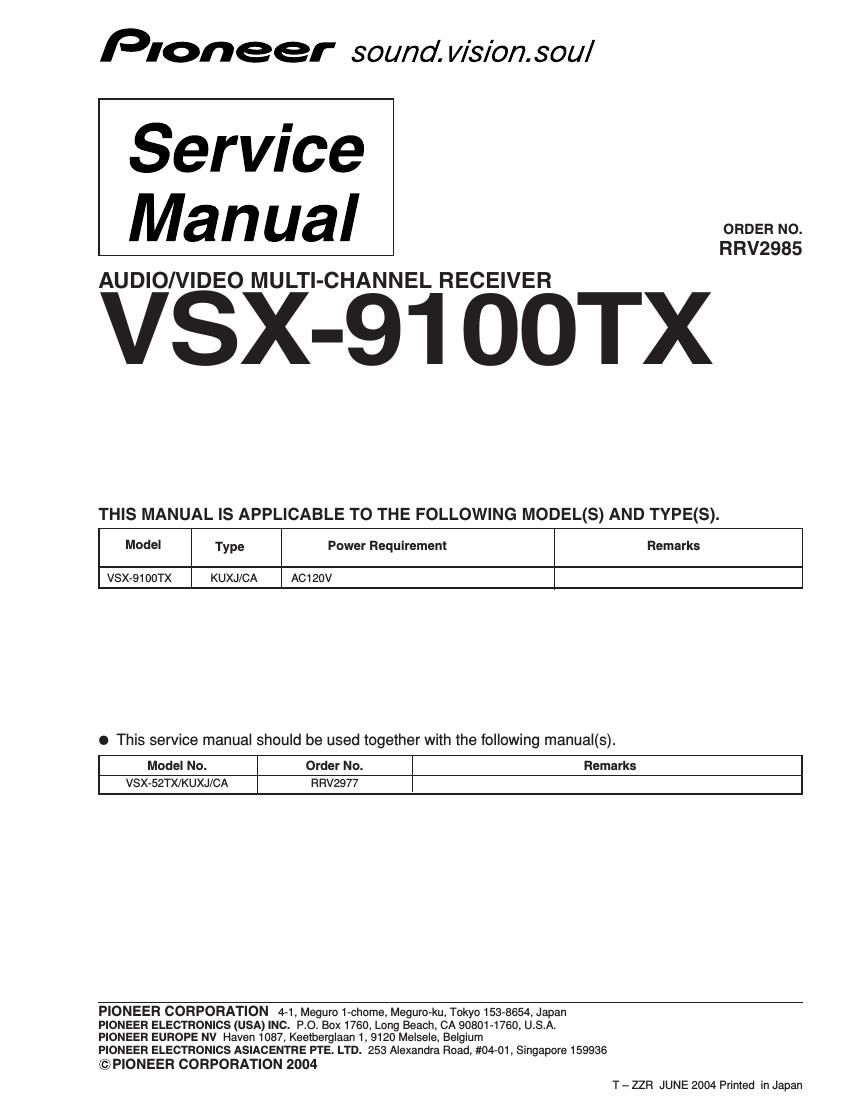

Pioneer vsx 9100 tx service manual

Page 1

2 1 23 4 1234 C D F A B E VSX-9100TX 1. CONTRAST OF MISCELLANEOUS PARTS 7 CONTRAST OF TABLE VSX-9100TX/KUXJ/CA and VSX-52TX/KUXJ/CA are constructed the same except for the following: NSP POWER AMP ASSY AWK7822 AWK7823 P13- 1 12V TRIGGER ASSY AWX8395 AWX8398 P7- 6 NSP Warranty Card ARY7007 ARY7045 P7- 7 Operating Instructions (English) ARB7302 ARB7312 P7-15 Packing Case AHD8255 AHD8281 (52/KU) (9100/KU) P11-20 Stabilizer 45 ANG7408 Not used P11-22 NSP Under Base ANA7166 ANA7161 P13-19 Rear Panel ANC8249 ANC8286 P13-22 Hexahed Screw (2.85x7) ABA7078 Not uesd P17-11 F. Panel ANB7338 ANB7355 P17-15 Window AAK8177 AAK8257 P17-23 Door ANB7334 ANB7335 Ref. No.Remarks VSX-52TX VSX-9100TX /KUXJ/CA /KUXJ/CAPart No. MarkSymbol and Description Notes : ÷ For PCB ASSEMBLIES, refer to CONTRAST OF PCB ASSEMBLIES and 2. SCHEMATIC DIAGRAM. Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).561 473 R50 1R0 5621 560 47k 0.5 1RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0561 473 5.62k RN1/4PC F562 x 10 1 5621

Page 2

3 1 234 1 23 4 C D F A B E VSX-9100TX CONTRAST OF PCB ASSEMBLIES AWX8398 and AWX8395 are constructed the same except for the following : 12V TRIGGER ASSY F K Mark Symbol and DescriptionPart No. Remarks AWX8395 AWX8398 IC 981 (RS-232 ) SP232AEN Not used Q991 2SC1740S Not used D991, D992 1SS355 Not used C986, C992, C997 CKSRYB103K50 Not used C991 CEAT101M16 Not used C993- C996 CEAT1R0M50 Not used C998 CCSRCH331J50 Not used L992 LAU1R0J Not used R991- R994 RS1/16S101J Not used R995, R998 RS1/16S224J Not used R996 RS1/16S474J Not used R997 RS1/16S103J Not used CN983 9P D-SUB SOCKET AKP1213 Not used
