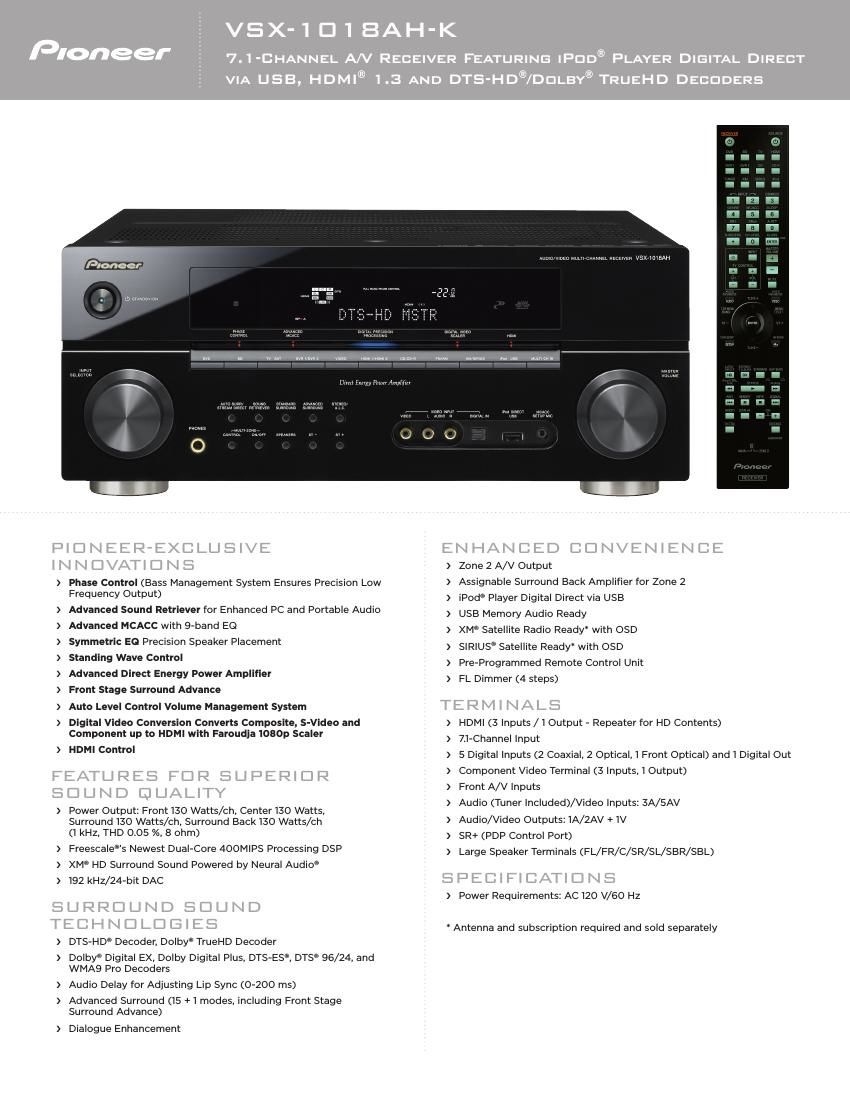

7.1-Channel A/V Receiver Featuring iPod ® Player Digital Direct
via USB, HDMI ® 1.3 and DTS-HD ®/Dolby ® TrueHD Decoders
VSX-1018AH-K
CONNECTIONS
Rear-ºPanel
DIMENSIONS
W-ºx-ºH-ºx-ºD:-º16-9/16-ºx-º6-13/16-ºx-º17-1/16-ºinches-º(420-ºx-º173-ºx-º433-ºmm)-º-º
Weight:-º29-ºlbs.-º1-ºoz.-º(13.2-ºkg)-º-º
INTEGRATED TECHNOLOGIES
Specifications and design subject to modification without notice.Stereo: Continuous average power output of 110 watts + 110 watts at 8 ohms, from 20 Hz to 20 kHz with no more than 0.09 % total harmonic distortion. Measured pursuant to the Federal Trade Commissions Trade Regulation Rule on Power Output Claims for Amplifiers.The impedances indicated are actual values that speakers can present to an amplifier while playing back music. They do not refer to the nominal rated impedances of speakers you use.HDMI connection may not allow transmission of copyright protected material, depending on the capability of the signal source.PIONEER and the Pioneer Logo are registered trademarks of Pioneer Corpor\
ation.iPod is a trademark of Apple, Inc., registered in the U.S. and other countries.DTS is a registered trademark & the DTS logos and Symbol are trademarks \
of DTS, Inc.
Manufactured under license from Dolby Laboratories. "Dolby ", "Pro Logic ", "Surround EX " and the double-D symbol are trademarks of Dolby Laboratories.HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks\
or registered trademarks of HDMI Licensing LLC."SIRIUS " and the SIRIUS dog logo are registered trademarks of SIRIUS Satellite Radio, Inc. XM is a registered trademark of XM Satellite Radio Inc.Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.Proprietary driver is required for WMA9 Pro playback on computer.ENERGY STAR ® and the ENERGY STAR certification mark are registered U.S. marks. Neural Surround is a trademark owned by Neural Audio Corporation. THX and the THX logo are trademarks of THX Ltd., which may be registered in some jurisdictions.FREESCALE is a registered trademark of Freescale Semiconductor.
CONNECTION DESCRIPTIONS
HDMI-ºA/V-ºRepeater-º(3-ºAssignable-ºin/1-ºout) A.
SR+-ºPlasma-ºControl B.
4-ºComposite-ºA/V-ºInputs-ºfor-ºCable-ºTV/Satellite/VCR/DVD-Player/ -º C. DVD-Recorder/Digital-ºVideo-ºConversion
XM D. ®-ºInput-ºand-ºOn-Screen-ºMenus
SIRIUS E. ®-ºInput-ºand-ºOn-Screen-ºMenus
3-ºAssignable F. Component-ºVideo-ºInputs-ºfor-ºDVD,-ºTV,-ºand-ºDVR
5-ºAssignable-ºDigital-ºInputs-ºfor-ºDVD-ºPlayer/Recorder/Satellite/Cable G.
A B C D F E G
