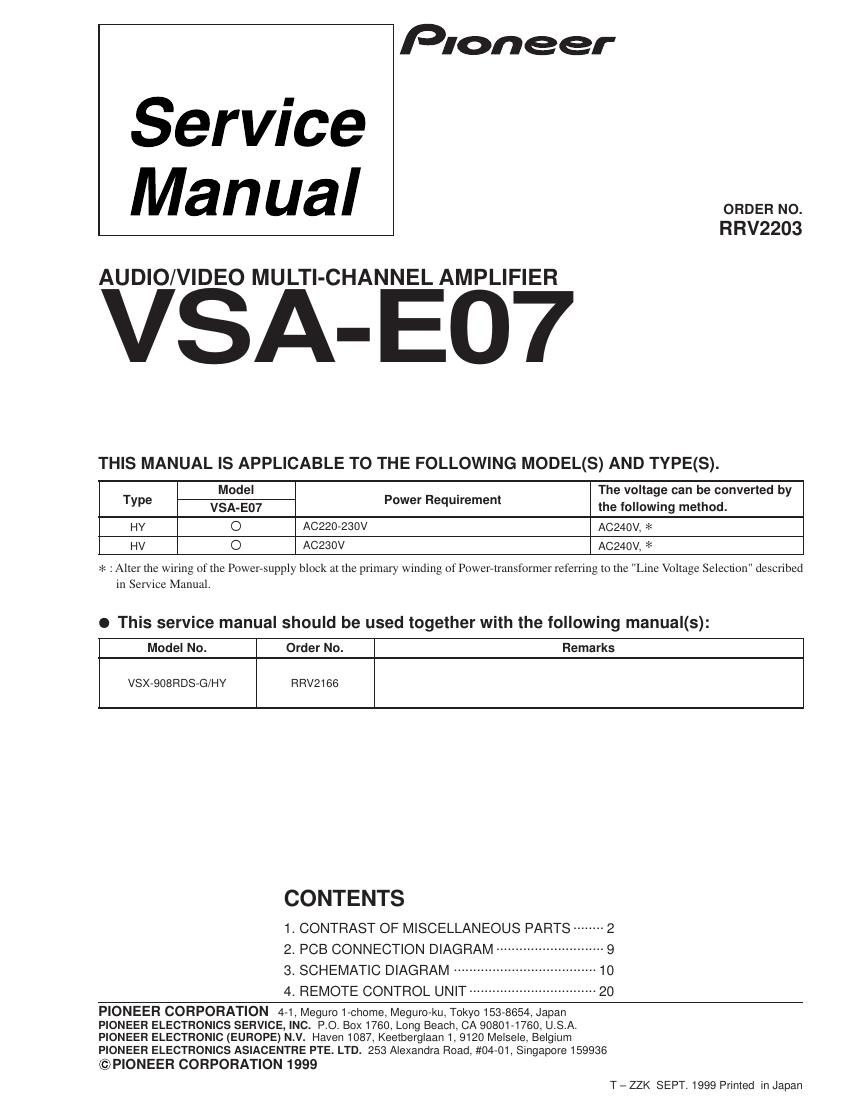

Service
Manual
AUDIO/VIDEO MU LTI-CHANNEL AMPLIFIER
Pioneer
ORDER NO.
RRV2203
VSA- E07
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type Model Power Requirement The voltage can be converted by
VSA-E07 the followmg method.
Hy o AC220-230V A0240v, *
HV 0 Acz3ov ACZ40V, *
* :Alter the wiring of the Poweresupply block at ihe primary winding of P0wer4ransf0rmer referring to the "Line Voltage Selection" described
in Service Manual.
0 This service manual should be used together with the following manual(s):
Model No. Order No. Remarks
VSX-908RDS-G/HY RRV2166
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS 2
2. PCB CONNECTION DIAGRAM >9
3. SCHEMATIC DIAGRAM --------------- -- 10
4- REMOTE CONTROL UNIT ................................. 20
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melseie, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
© PIONEER CORPORATION 1999
T - ZZK SEPT. 1999 Printed in Japan
VSA-E07
1. CONTRAST OF MISCELLANEOUS PARTS
NOTES: 0 Parts marked by "NSF" are generally unavailable because they are not in our Master Spare Parts List.
0 The A markfound on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
I Screws adjacent to V mark on product are used for disassembly.
.Reference Nos. indicate the pages and Nos. in the service manual for the base model.
0 When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex] When there are 2 effective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
560 a 56 X 10 a 561
47k * 47X10 -- 473
0.5 * R50 -- -
l 4 [KO -RS1P-®@K
Ex.2 When there are 3 eflective digits (such as in high precision metalfilm resistors).
5.6Zk * 562 X 10 a 5621 -------------- RNI/4PC- IF
l CONTRAST TABLE
VSA»EO7/HY, HV and VSX-908RDS»G/HY are constructed the same except for the following :
Part No.
Ref. No. Mark Symbol and Description VSX-908RDS-G VSA-E07 VSA-EO7 Remarks
/HY /HY /HV
PCB ASSEMBLIES
NSP MAIN ASSY AWK7528 AWK7508 AWK7508
P5- 5 MAIN CONTROL ASSY AWX7410 AWX7340 AWX7340
P5-12 VIDEO ASSY AWX7422 AWX7419 AWX7419
P5-13 S-VIDEO ASSY AWX7395 AWX7308 AWX7308
P5-16 DIGITAL-I/O ASSY AWX7396 AWX7315 AWX7315
NSP COMPLEX ASSY AWK7529 AWK7509 AWK7556
P5- 2 EXTERNAL IN (EXTRA-5.1) ASSY AWX7413 AWX7348 AWX7348
P5- 3 A-PINJACK ASSY AWX7412 AWX7346 AWX7346
P5- 4 CONNECTION ASSY AWX7347 AWX7558 AWX7558
P5- 9 REGULATOR ASSY AWX7310 AWX7559 AWX7559
P5-11 TRANS 2-2 ASSY AWX7518 AWX7470 AWX7470
P5-15 PRIMARY ASSY AWX7345 AWX7345 AWX7454
NSP FRONTNAMP ASSY AWK7530 AWK7511 AWK7511
P5-19 V-AMP ASSY AWX7309 AWX7514 AWX7514
P8- 2 DISPLAY ASSY AWX7414 AWX7361 AWX7361
P8- 3 NSP ROTARY ENCODER ASSY AWX7405 AWX7328 AWX7328
VOLUME ASSY Not used AWX7367 AWX7367 No. 1
PACKING SECTION
P3- 1 AM Loop Antenna ATB7009 Not used Not used
P3- 2 FM Wire Antenna ADH7010 Not used Not used
P3- 3 Operating Instructions (English) ARB7187 ARB7189 ARB7189
P3- 4 Remote Control Unit (CU-VSXIGS) AXD7236 Not USSd Not used
P3- 4 Remote Control Unit (CU-VSA032) Not used AXD7217 1 AXD7217 1
P3- 9 Packing Case AHD7815 AH D781 3 AHD7813
P3-14 Operating Instructions (German) ARC7244 AFIC7271 Not used
P3-15 Operating Instructions (French) ARC7245 AFIC7247 Not used
P3-16 Operating Instructions (Italian) ARC7246 AFIC7248 Not used
P3-17 Operating Instructions (Dutch) ARC727O ARC7249 Not used
P3-18 Operating Instructions (Swedish) ARC7280 AFIC7283 Not used
P3-19 Operating Instructions (Spanish) ARC7281 AFIC7284 Not used
P3-20 Operating Instructions (Portuguese) ARC7282 AFIC7285 Not used
Remo-con. Cushion Not used AXG7080 AXG7080 Accessories
*1 : Refer to 4. REMOTE CONTROL UNIT".
