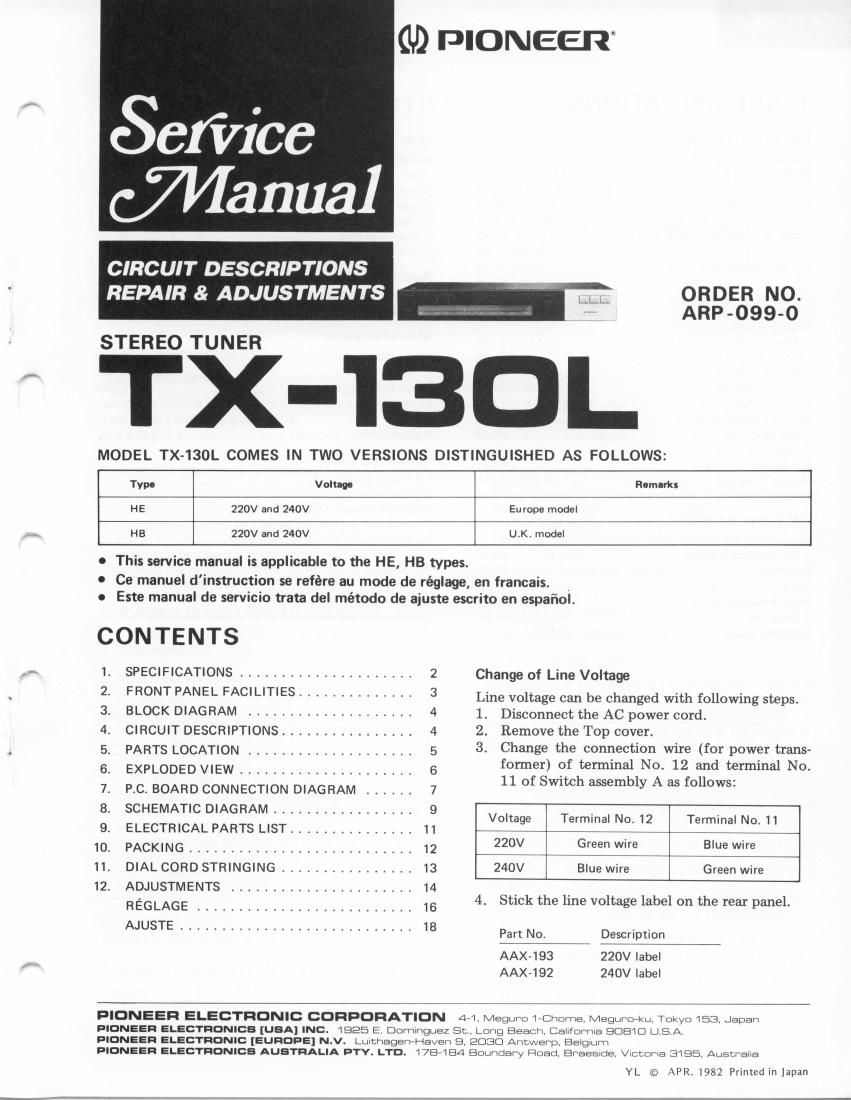

Pioneer tx 130 l service manual

This is the 19 pages manual for pioneer tx 130 l service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 19
left right
pioneer tx 130 l service manual

Extracted text from pioneer tx 130 l service manual (Ocr-read)


Page 1

1. SPECIFICATIONS FM Tuner Section Usablesensitivity............ .... 10.8dBf (1.9pV) 50 dB Quieting Sensitivity Mono; 17.3 dBf (4.0 pV) Stereo; 39.2 dBf (50 pV) Sensitivity (DlN) ......... Mono; 0.85prV Stereo; 39.8 pV Signal-to-Noise Ratio (at 80 dBf ) .. Mono; 75 dB Stereo; 70 dB Signal-to-Noise Ratio (DlN) ......... Mono;72d8 Stereo; 70 dB Distortion (at 60 dBf) Stereo........ .......1k{2;Q.2o/o Distortion (DlN) Stereo........ ....... 1kHz,0.2o/o Capture Ratio .......... ...... 1 .0 dB Alternate Channel Selectivity ................ 60 dB Stereo Seoaration ............ ......... 1 kHz; zl0 dB Frequency Response ...... 30 Hz to 1 5 kHz:! fr dB Spurious Response Ratio ......... ........... 70 dB lmage Response Ratio ......55dB lF Resoonse Ratio.......... ..80d8 AM Suppression Ratio ...... 50 dB Muting Threshold 19.2 dBf (5 pV) Antenna Input ....... 300 ohms balanced, 75 ohms unbalanced LW Tuner Section Sensitivity lHF, external antenna ....45pV Selectivity ... 25 dB Signal-to-Noise Ratio .......50 dB lmage Response Ratio ...... 40 dB lF Response Ratio .......... .. 70 dB Antenna Accessory AM looP antenna MW Tuner Section Sensitivity lHF, external antenna ....30pV Selectivity ...25d8 Signal-to-Noise Ratio ....... 50 dB lmage Response Ratio ...... 40 dB lF Response Ratio .......... .. 70 dB Antenna Accessory AM looP antenna Audio Section FM (100% MOD) ......... 650 mV/3.5 ka AM (30% MOD) ......... 200 mV/3.5 ka Miscellaneous Power Requirements AC22OV l24OV, 50/60H2 {Switchable) Power Consumption ........9.5W Dimensions .......42O (W) x 69 lHl x?26 (D) mm 16-1/2 (W) x2-3/4 (H) x 8-718 (D) in Weight (without package) . .. .. . 2.5 kg (5 lb 8 oz) Furnished Parts FM T-type Antenna ............... 'l AM Antenna ........................ 1 Antenna Catcher ................... 1 Connection Cord with Pin Plugs .................. 1 Operating Instructions ............ 1 NOTE: Specifications and design subiect to possible modification without notrce.

Page 2

2. FRONT PANEL FACILITIES -ilF * *r"_a'';- ,- HK cfl _fr...,.t | {=; I @ O poweR swrrcH (PowER) When this switch is set to the ON position, power is supplied to the tuner's main circuits. The unit's power switch is geared to selecting the transformer's secondary and so even at the STAND-BY position, the unit's circuitry will work as long as the power cord is connected to the power outlet. Disconnect the power cord from the AC power outlet when the unit is not in regular use. @ rururruc rNDrcAToR (TUNTNG) This indicates that an FM, MW or LW broadcasting station is being received. @ sreneo tNDtcAToR (srEREo) This lights automatically when an FM program is being broadcast in stereo. It does not light when the FM MUTING switch has been set to the OFF/MONO Position. @ rru MUTTNG swtrcH (FM MUTING) In the released position when it is normally set, this switch suppresses the annoying interstation noise which is heard when tuning in FM broadcasting stations. lf the station signals are weak and there is a great deal of noise and distortion, depress this switch (and monaural sound reproduction results). This switch does not work with MW and LW reception. @ rurutruc KNoB Rotate this knob to pick up the stations (FM, MW or LW) @ rurucfloN swlTcHEs (FM, MW or LW) Depress the FM switch for listening to FM broadcasts. Depress the MW switch for listening to MW broadcasts. Depress the LW switch for listening to LW broadcasts. @ rneouENcY scALE This indicates the frequency of the broadcasting station (FM, MW and LW). The top level figures (88-1081 indicate the FM frequencies. The center level figures (55ru160) indicate the MW frequen- cies. The bottom level f igures ( 150-350) indicate the LW f requen- cies. @ ourPUT coRD (accessory) This is used to hook the unit up with the stereo amplifier. @ r-rYPE FM ANTENNA (accessory) This antenna is for listening to FM stations and it should be connected to the rear panel of the unit. This is a spare antenna for listening to FM stations and is used until an outdoor FM antenna is erected. For the best reception, an outdoor antenna should be obtained. @ nnn ANTENNA AND ANTENNA cATcHER (accessory) This antenna is for listening to MW and LW stations and it should be connected to the rear panel of the unit. The anten- na catcher is used when fixing the antenna to a wall or other location. NOTE: Even with the accessory T-type FM antenna and AM antenna it may be impossible to tune into some stations when the broad- cast stations are too far awaY or when the unit is located in a weak-signal area such as in the mountains. ln cases like this, use an external antenna. 3
