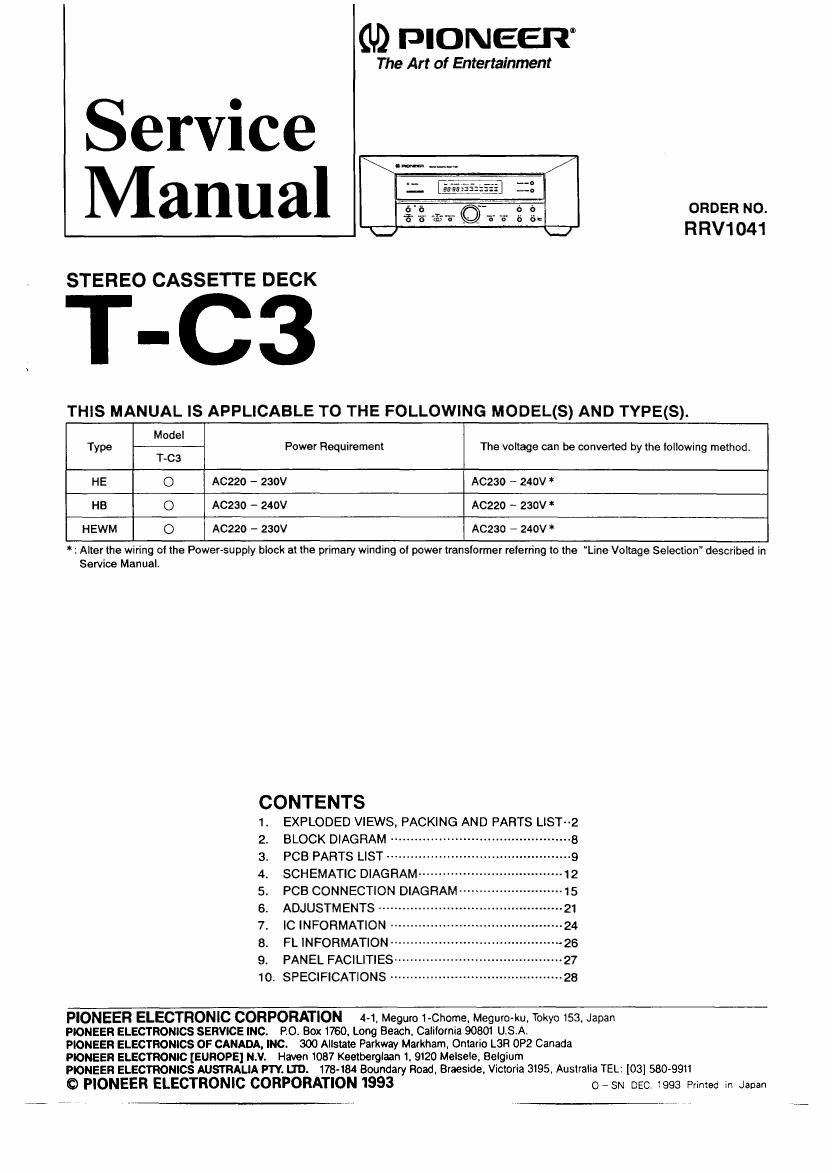

Pioneer t c3 service manual

Page 1

OJ) PIONEER

The Art of Entertainment

Service
Manual

STEREO CASSETTE DECK

T-C3

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

ORDER NO.
RRV1 041

Model
Type T 0 Power Requirement The voltage can be convened by the following method
~ 3
HE O AC22D - 230V A6230 A 240V *
H3 0 A0230 - 240V AC220 - 230V
HEWM O A6220 - 230V A0230 - 240V *

* : Alter the wiring oi the Power-supply block at the primary winding oi power transformer referring to the Line Voltage Selection" described in
Service Manual.

CONTENTS

1. EXPLODED VIEWS, PACKING AND PARTS LIST- 2
2 BLOCK DIAGRAM-
3 PCB PARTS LIST --
4 SCHEMATIC DIAGRAM ------

5. PCB CONNECTION DIAGRAM--
6. ADJUSTMENTS -----
7

8

9.

1

IC INFORMATION -

FL INFORMATION-

PANEL FACILITIES-
O. SPECIFICATIONS--

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome. Meguro-ku. Tokyo 153. Japan

PIONEER ELECTRONICS SERVICE INC. PO. Box 1760. Long Beach, California 90801 USA.

PIONEER ELECTRONICS OF CANADA. INC. 300 Allstate Parkway Markham. Ontario L3H 0P2 Canada

PIONEER ELECTRONIC [EUROPE] N.v. Haven 1037 Keelberglaan 1. 9120 Melseie, Belgium

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178484 Boundary Road. Braeside, Victoria 3195, Australia TEL: [03] 580-9911

0 PIONEER ELECTRONIC CORPORATION 1993 o _ 3N Dec 1993 Minted in Japan

Page 2

T-C3

1. EXPLODED VIEWS, PACKING AND PARTS LIST

NOTES:

0 Parts marked by NSF" are generally unavailable because they are not in our Master Spare Parts List.

a The A mark found on some component pans indicata the importance of the safety factor of the part. Therefore, when replacing, be sure
to use parts of identical designation.

0 Parts marked by " O " are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable

Parts Llst
Mark No. Descrlptlon Part No. Mark No Descrlptlon Part No.
A 1 Strain relief CM - 228 48 Washer WT 16D032D025
A 2 Power cord with plug PDGIOOa 49 Slide knob REAllll
(T - CS/HE and HEWM) 50 VR knob REA1112
A 2 Power cord with plug PDGIOZI
(T - CS/HB) 51 Loading motor assy RXX1341
3 Lead card 111 RDD1295 52 Motor pulley PNW1634
4 Lead card llP RDD1298 53 Screw IPZZGPOSOFMC
5 Connector assy 5P RKPISSO 54 Screw PMZBOPOSOFMC
55 Screw BBZZSPOSOFZK
A 6 AC Socket (T - C3/HB) AKF - 509
A 6 AC Socket 1 - P AKP - 508 56 Screw BBTSOPOSOFCC
(T - C3/ HE and HEWM) 57 Screw BBZ26P08OFZK
A 7 Power transformer RTT1263 58 Screw IBZSOP080FCC
A 8 Fuse (1.25A) REKIOZS 59 Screw IBZSOPISOFCC
9 Loading motor VXM1034 6O Screw IBZSOPOSOFCC
10 Cassette mecha unit RYM1219
61 VERTICAL UNIT RWZ3116
NSP ll Cord clamper DNF1128 NSP 62 TR] UNIT (TeCS/HE) RW23253
NSF 12 PCB spacer PNY - 404 NSP 62 TRl UNIT (1 - CS/HB) RWZ3252
NSP 13 Washer RBF1017 NSP 62 TRl UNIT RWZ3254
14 Spring RBHIS75 (T - CS/HEWM)
NSF 15 FFC cover REC1222 NSP 63 TRZ UNIT RW23259
64 MAIN UNIT RW23251
NSP 16 Main chassis RNBlOQS NS? 65 REGULATOR A UNIT RWZ3113
NSP 17 MECHA UNIT RW23103
18 Door cover RNE1770 NSP 66 REGULATOR B UNTT RWZSIIA
19 Cord clamper RNH- 184 NS? 67 OPERATE UNIT RWZSOQB
20 Door RNKZOZS NS? 68 FL UNIT RW23099
69 Connection cord with plug PDE - 319
21 Damp cushion VEClllO 70 Connection cord assy RDElOOZ
22 Tray panel KAI-{2344
23 Release arm SP RBI-11276 71 Control cord RDE1030
24 Earth spring REK1043 72 Operating instructions RRB1147
25 Half pressure spring RBK1037 (T - C3/HB) (English)
72 Operating instructions RRE1099
26 Drive belt REBIZ49 (T - CS/ HE)
NSP 27 Release arm RNE1410 (English/French/German/
28 Earth spring RBH1280 Italian/Dutch/Swedish/
29 Tray base RNE1736 Spanish/Portuguese)
30 Clamp arm RNKIBBS 72 Operating instructions RRD1152
(T - CE/HEWM)
31 Pulley gear RNK1667 (German/Italian)
32 Loading base R RNK1668 73 Screw BBZSOPIOOFCC
33 Cassette plate RNK1754 74 Pad F RHA1137
34 Tray RNK2024 75 Pad R RHA1138
35 Loading base L assy RXA1363
76 Sheet RHX1003
36 Steel ball (¢S) VNXlOOZ 77 Packing case RHG1561
37 Bonnet ANE7010 NSP 78 Mechanism stay RNE1737
38 LED lens PNW2019 NSF 79 Jumper wire 08F DZOPYYOBZOG
39 Insulator PNW2363 80 Fiber washer REC1204
40 Button RAC1859
NSP 81 Shield plate RNE1771
41 Front panel RAH2345 82 LB pad REC1472
42 FL lens RAH2346 Note 1 83 Spacer RHC1049
43 Center panel KAI-{2405 Note 1 84 Caution sheet RRNIOOS
44 Name plate RAN1013 A 85 Fuse (2.5A) REKIOZS
45 Rear panel (T - CS/HB) RNA1806 (T - CS/HE only)
45 Rear panel (T - CS/ HE) RNA1807
45 Rear panel RNA1817 86 AC OUTLET UNIT RWZSIOZ
(T - C3/HEWM) (T _ CS/HE only)
46 Panel stay RNT1190 Note 1 : The spacer and caution sheet are used to protect
NS? 47 Tray label RRWll59 the door when transportig the product.
