Pioneer sxf 21 service manual

This is the 48 pages manual for pioneer sxf 21 service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 48
left right
pioneer sxf 21 service manual

Extracted text from pioneer sxf 21 service manual (Ocr-read)

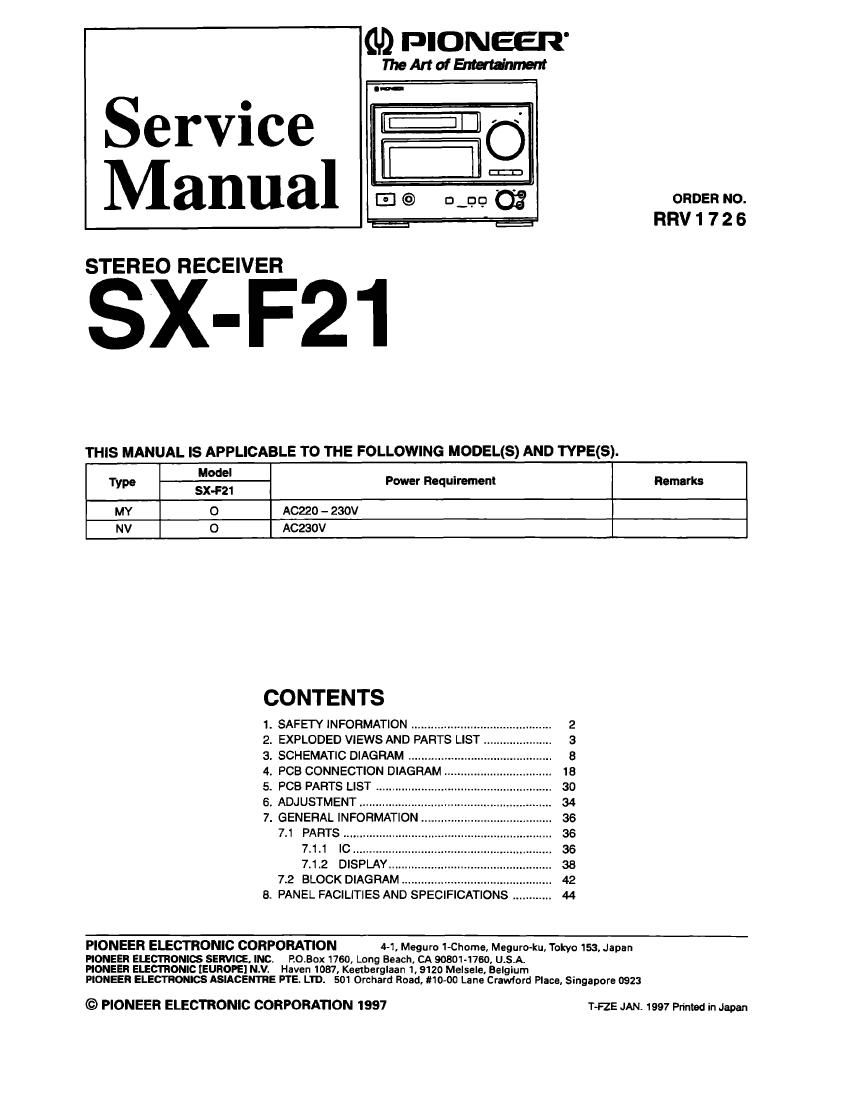

Page 1

Service
Manual

ORDER NO.
RRV 1 7 2 6
STEREO RECEIVER
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type 3:: Power Requirement Remarks
MY 0 AC220 - 230V
NV 0 A0230V
CONTENTS

I PCB PARTS LIST
. ADJUSTMENT .....

NGUIAWN-A

, SAFETY INFORMATION .......................
. EXPLODED VIEWS AND PARTS LIST .
. SCHEMATIC DIAGRAM .............
. PCB CONNECTION DIAGRAM ..

. GENERAL INFORMATION .
7.1 PARTS ...........
7.1.1 |C........

7.1.2 DISPLAY

7.2 BLOCK DIAGRAM
8. PANEL FACILITIES AND SPECIFICATIONS

tfiggfifigfigamum

PIONEER ELECTRONIC CORPORATION

PIONEER ELECTRONICS SERVICE, INC.

4-1, Megura LChoms, Maguroku, Tokyo 153, Japan

P.O.Rox1760, Long Beach. CA 90801-1750, U.S.A_
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1067. Kaetbarglaan 1,9120 MeIsele. Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road. IMO-00 Lane Crawford Place, Singapore 0923
© PIONEER ELECTRONIC CORPORAflON 1997

T-RE JAN. 1997 Printad in Japan

Page 2

SX-F21

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; It is not meant for the casual
do-it-youreelfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you

should not risk trying to do so and refer the repair to a qualified service technician.

WARNING

Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which
may cause birth defects or other reproductive harm (California Health & Safety Code, Section 25249.5).
When servicing or handling circuit boards and other components which contain lead in solder. avoid unprotected skin contact with
the solder. Also. when soldering do not inhale any smoke or fumes produced.

NOTICE
(FOR CANADIAN MODEL ONLY)

Fuse symbols E- (fast operating fuse) and/or a (slow operating fuse) on PCB indicate that replace-

ment parts must be of identical designation.

REMAROUE
(POUR MOD+LE CANADIEN SEULEMENT)

Les symboles de fusible EB- (fusible de type rapide) el/ou E (fusible de type lent) sur CCI indiquent
que les piAces de remplacement doiveni avoir Ia mEme dAsignation.

-(FOR USA MODEL ONLY)
1. SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service
technician.

LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals.
screwheads. metal overlays. control shalt. etc). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.

Mano thould
WW 3: 3.1"
current
Device tester
under
"1 =l-l-J '
151 all
W m
sunaas
\fl
Also test with
plug mmd
(Ucltn AC war am
We I! WM) ? ground
AC Leakage Test

ANY MEASUREMENTS NOT WITHIN THE
LIMITS OUT IJNED ABOVE ARE INDICATIVE
OF A POTENTIAL SHOCK HAZARD AND
MUST BE CORRECTED BEFORE RETURN-
ING THE APPLIANCE TO THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the
protection aflorded by them necessarily can be obtained
by using replacement components rated for voltage.
wattage, etc. Replacement parts which have these
special safety characteristics are identified in this
Service Manual.

Electrical components having such features are

identified by marking with a A on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one. shown in the
parts list in this Service Manual. may create shock, fire,
or other hazards.

Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER
Service Manual. A subscription to, or additional copies
of. PIONEER Service Manual may be obtained at a
nominal charge from PIONEER.
