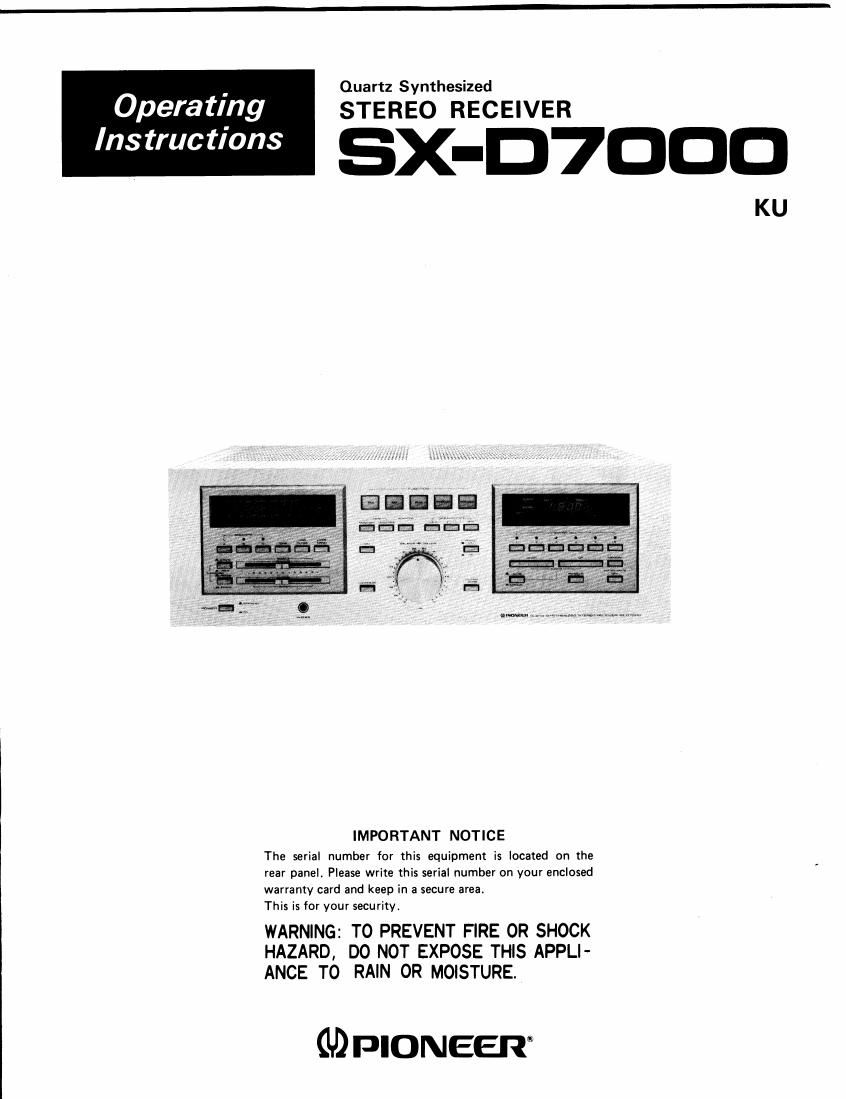

Quartz Synthesized
Operating STEREO RECEIVER
Instructions SX-D7ooo
KU
IMPORTANT NOTICE
The serial number for this equipment is located on the
rear panelr Please write this serial number on your enclosed
warranty card and keep in a secure area.
This is for your security.
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS APPLI-
ANCE TO RAIN 0R MOISTURE.
CIDPIONEER
r-_-*-SAFETY INSTRUCTIONS#%
READ INSTRUCTIONS 7 All the safety and operating instruc-
tions should be read before the appliance is operated.
RETAIN INSTRUCTIONS 7 The operating instructions should be
retained for future reference.
HEED WARNING 7 All warnings on the appliance and in the
operating instructions should be adhered to.
FOLLOW INSTRUCTIONS 7 All operating and use instructions
should be followed.
WATER AND MOISTURE - The appliance should not be used
near water - for example. near a bathtub, washbowl, kitchen
sink, laundry tub. in a wet basement, or near a swimming pool,
etc.
LOCATION - The appliance should be installed in a stable loca-
tion.
WALL OR CEILING MOUNTING 7 The appliance should not
be mounted to a wall or ceiling.
VENTILATION - The appliance should be situated so that its
location or position does not interfere with its proper ventila-
tion, For example, the appliance should not be situated on a
bed, sofa, rug, or similar surface that may block the ventilation
openings; or, placed in a built-in installation, such as a book.
case or cabinet that may impede the flow of air through the
ventilation openings.
HEAT - The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (in
cluding amplifiers) that produce heat.
POWER SOURCES 7 The appliance should be connected to a
power supply only of the type described in the operating in-
structions or as marked on the appliance.
POWER-CORD PROTECTION - Powervsupply cords should be
routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular atten-
tion to cords at plugs, convenience receptacles, and the point
where they exit from the appliance.
CLEANING - The appliance should be cleaned only with a polish
ing cloth or a soft dry cloth. Never clean with furniture wax,
benzine, insecticides or other volatile liquids since they may
corrode the cabinet.
POWER LINES - An outdoor antenna should be located away
from power lines.
NONUSE PERIODS 7 The power cord of the appliance should
be unplugged from the outlet when left unused for a long period
of time.
OBJECT AND LIQUID ENTRY - Care should be taken so that
objects do not fall and liquids are not spilled into the enclosure
through openings.
DAMAGE REQUIRING SERVICE 7 The appliance should be
serviced by Pioneer authorized service center or qualified service
personnel when:
0 The power-supply cord or the plug has been damaged; or
o Objects have fallen, or liquid has been spilled into the appli-
ance;or
The appliance has been exposed to rain; or
The appliance does not appear to operate normally or ex-
hibits a marked change in performance; or
I The appliance has been dropped, or the enclosure damaged.
SERVICING 7 The user should not attempt to service the appli-
ance beyond that described in the operating instructions. All
other servvcing should be contacted nearest Pioneer authorized
service center,
OUTDOOR ANTENNA GROUNDING - If an outside antenna
is connected to the antenna terminal, be sure the antenna sys-
tem is grounded so as to provide some protection against volt-
age surges and built up static charges. Section 810 of the Natio-
nal Electrical Code, ANSI/NEPA No. 70-1978, provides informa-
tion with respect to proper grounding of the mast and support-
ing structure, grounding of the lead-in wire to an antenna dis-
charge unit, size of grounding conductors, location of antenna:
discharge unit, connection to grounding electrodes, and require-
ments for the grounding electrode. See Fig. A.
EXAMPLE OF ANTENNA GROUNDING AS
PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
Grou nd clamp
\
a), b)
Mast
ground c)
wrre A tenna
n To Antenna terminal
discharge \
unit
> Ground clamps
Grounding electrode
: driven 8' into the earth
" (2.44 meters)
Fig. A
a) Use No. 10 AWG copper or No. 8 AWG aluminum or No.
17 AWG copper-clad steel or bronze wire, or larger as ground
wires for both mast and lead-in.
b) Secure lead-in wire from antenna to antenna discharge unit and
mast ground wire to house with stand-off insulators, spaced
from 4 feet (1.22 meters) to 6 feet (1.83 meters) apart.
c) Mount antenna discharge unit as closely as possible to where
lead-in enters house.
