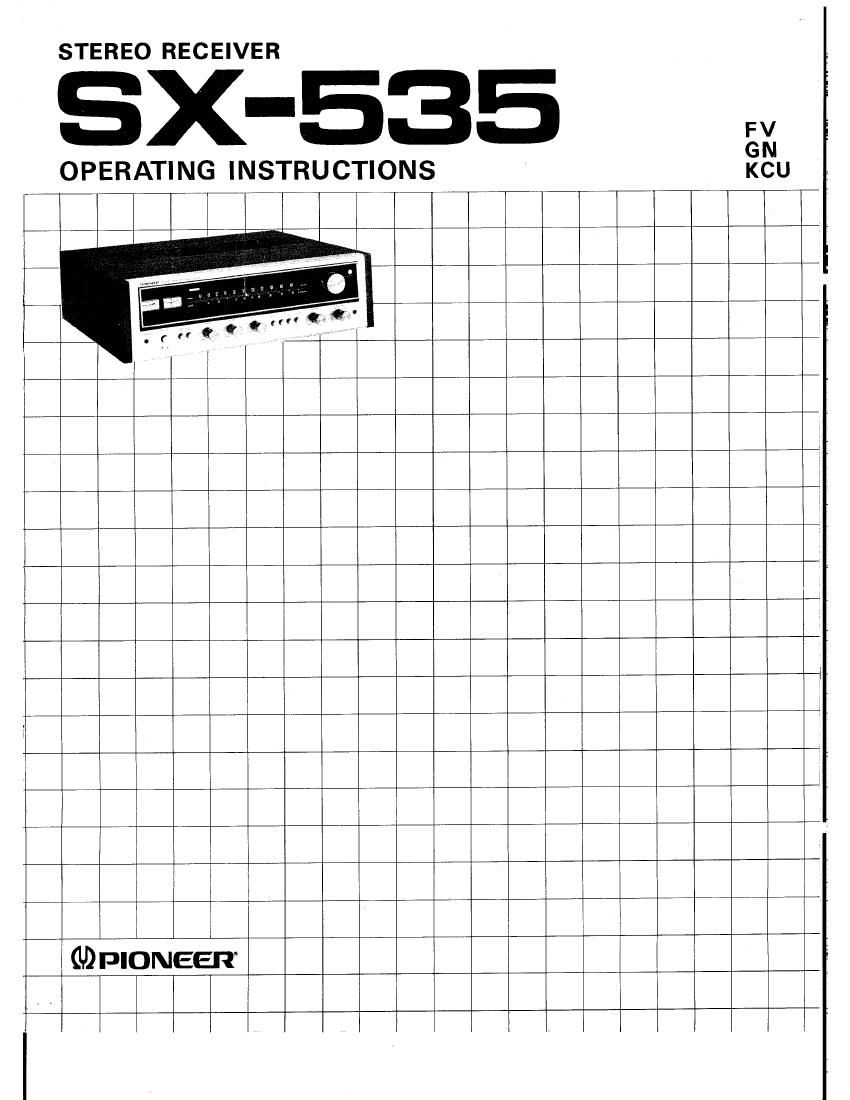

pioneer sx 535 owners manual

Extracted text from pioneer sx 535 owners manual (Ocr-read)


Page 2

FEATURES

Advanced Tuner Section

I FM tuner section using high stability circuitry.

0 FM front end with FET and rectilinear frequency three
stage variable capacitor.

0 lF amplifier circuitry with high reliable integrated
circuits developed by Pioneer.

I lncorporation of two twin-element phase-linear ceramic
filters and high stability circuitry components makes for
excellent image rejection, superior capture ratio, im-
proved SN ratio plus selectivity - in short, tip-top
performance all round.

0 Phase Locked Loop circuitry is used in the multiplex
circuit to prevent deterioration due to temperature
changes and the passage of time.

0 Pioneers low distortion and excellent separation
characteristics provide for stable operation which
ensures enhanced FM stereo listening pleasure for you.

Low Distortion, Wide Range Power Amplifier
Thanks to the use of extra-reliable NPN and PNP silicon
power transistors and a differential one-stage, completely
and superior frequency characteristics are assured.
Moreover, the output range and the distortion character-
istics are greatly improved,

The differential amplifier circuit and the temperature
compensation circuit further ensure that the stability and
superior performance of the Receiver are not subject to
external conditions, and this adds up to extra stereo
listening pleasure for the customer.

High Fidelity Preamplifier

The utilization of the finest components available in the
equalizer circuit keeps deviation from the RIAA standards
down to a minimum, thereby making an important contri-
bution to the faithfulness of record reproduction.

A Receiver which can Handle any Program Source
Amongst the input jacks on the back panel are turntable
and auxiliary connectors> two separate tape deck terminals
(for cassette decks or open-reel decks) plus microphone
jack on the front panel, so that any source whatever can be
utilized to provide flexible listening pleasure.

Personal Music Library can be Compiled

By connecting two tape decks, the desired portions only
can be edited from previously recorded tapesi Duplication
of programs from one tape machine to the other tape can
also be performed.

Two Sets of Speaker Systems may be Connected
This Receiver is furnished with two sets of speaker
terminals on the back panel and the corresponding posi-
tions on the speaker selector switch. Thus you can play
whatever music you are listening to through two pairs of
speaker systems at once, so you can have the same program
playing in two separate rooms simultaneously.

Advanced Ultramodern Design

The entire design of this Receiver has been carefully
thought out with efficient functioning in mind.

The entirely nerlook Receiver will fit in with the decor of
your listening room perfectly, thanks to its tasteful wooden
cabinetry and top quality appearance.

CONTENTS
Features ............................. 2
Line Voltage and Fuse and Rear Panel ...... 3
Installation .......................... 3
Stereo System Setup .................... 4
Speaker System Connection .............. 4
Connection Diagram .................... 5
Antenna and Ground Connections ......... 6
Equipment Component Connections ....... 7
Front Panel Facilities ................... 8
How to Operate the Receiver ............. 10
Employing Tape Decks .................. 11
About 4-channe1 Stereo System ........... 12
Conditions Frequently Mistaken for
Malfunction ........................ 13
Specifications ......................... 14
Mounting Template . . . . ........ . . . . . . . .15
