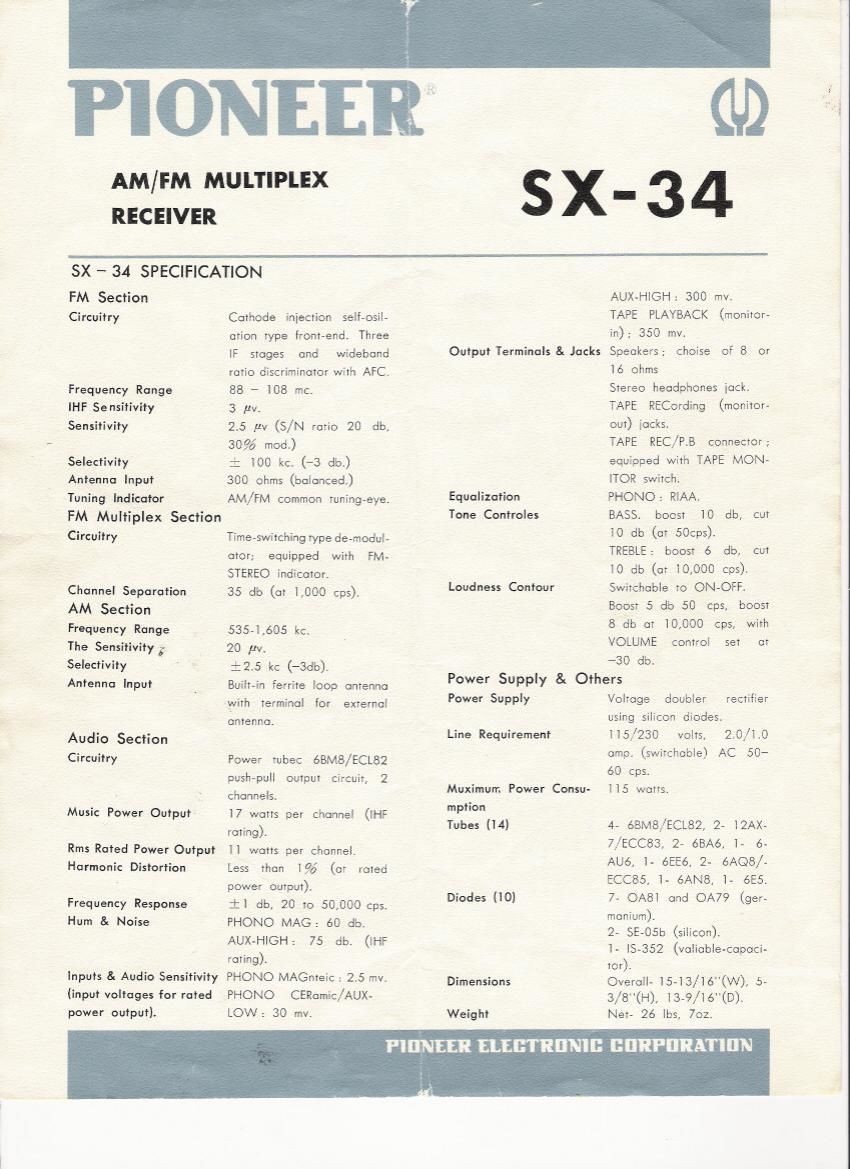

PIONEER
AM/FM MULTIPLEX
RECEIVER
SX-34
SX - 34 SPECIFICATION
FM Section
Circuitry
Frequency Range
IHF Sensitivity
Sensitivity
Selectivity
Antenna Input
Tuning Indicator
FM Multiplex Section
Circuitry
Channel Separation
AM Section
Frequency Range
The Sensitivity I
Selectivity
Antenna Input
Audio Section
Circuitry
Music Power Output
Rms Rated POWeI Output
Harmonic Dlstartion
Frequency Response
Hum & Noise
Inputs 8- Audio Sensitivity
(Input voltage: for rated
power output).
Cathode iniection self-osiL
arion type tram-end. Three
lF stages and widebond
'GIIO discriminator with AFC.
88 - 103 mc.
3 #v.
2.5 {Iv (S/N ratio 20 db.
30% mod.)
+_ 100 kc. (-3 db.)
300 ohms (balanced)
AM/FM common tuning-eye.
Time-switching type de-modul-
ator; equipped with FM-
STEREO indicator.
35 db (at LOGO cps).
535-],605 kc.
20 (Iv.
i2.5 kc (-Sdb).
Built-in ferrite loop antenna
with terminal for external
antenna.
Power tubec 63M8/ECL82
push-pull output circuit, 2
channels.
17 watts per channel (IHF
rating).
ll watts per channel.
Less than IQa (at rated
power output).
:1 db, 20 to 50,000 cps.
FHONO MAG: 60 db.
AUX-HIGH: 75 db. (IHF
rating).
PHONO MAGnteic : 2.5 mv.
PHONO CEilamic/AUX
LOW: 30 mv.
AUX-HIGH: 300 mv.
TAPE PLAYBACK (monitor-
in): 350 mv.
Output Terminals&Jac|rs Speakers; choise of 8 or
16 ohms
Stereo headphones lack.
TAPE RECording (monitor-
out) jocks.
TAPE REC/RB connectOr;
equipped with TAPE MON-
ITOR switch.
Equalization PHONO: RIAA.
Tone Controles BASS. boost 10 db, cut
I0 db (at 50cps).
TREBLE: boost 6 db, cut
10 db (at l0,000 cps).
Switchable to ON-OFF.
Boost 5 db 50 cps. boost
8 do at 10,000 cps, with
VOLUME control set at
-30 db.
Power Supply 8. Others
Loudness Contour
Power Supply Voltage doubler rectifier
using silicon diodes.
Line Requirement 115/230 volts. 2.0/1.0
omp. (switchable) AC 50-
60 cps.
Muximum Power Consu- I15 watts.
mption
Tubes (14) 4- 68M8/ECL82, 2- I2AX-
7/ECC83, 2, éBAé, l- 6-
AU6. l- 6556. 2- 6AQ8/-
ECC35. l- 6AN3. i- 655.
7. 0A8] and OA79 (ger-
monium).
2. sum (silicon).
I- lS-352 (valiable-capaci-
tor).
Diodes (l0)
Dimensions Overall- 15-13/16"(W), s-
3/8"(H), 13»9/16(D).
Weight Net- 26 lbs, 702.
Pl DNEER ELEBTRUNI I: I: flRPflR AT] [IN
