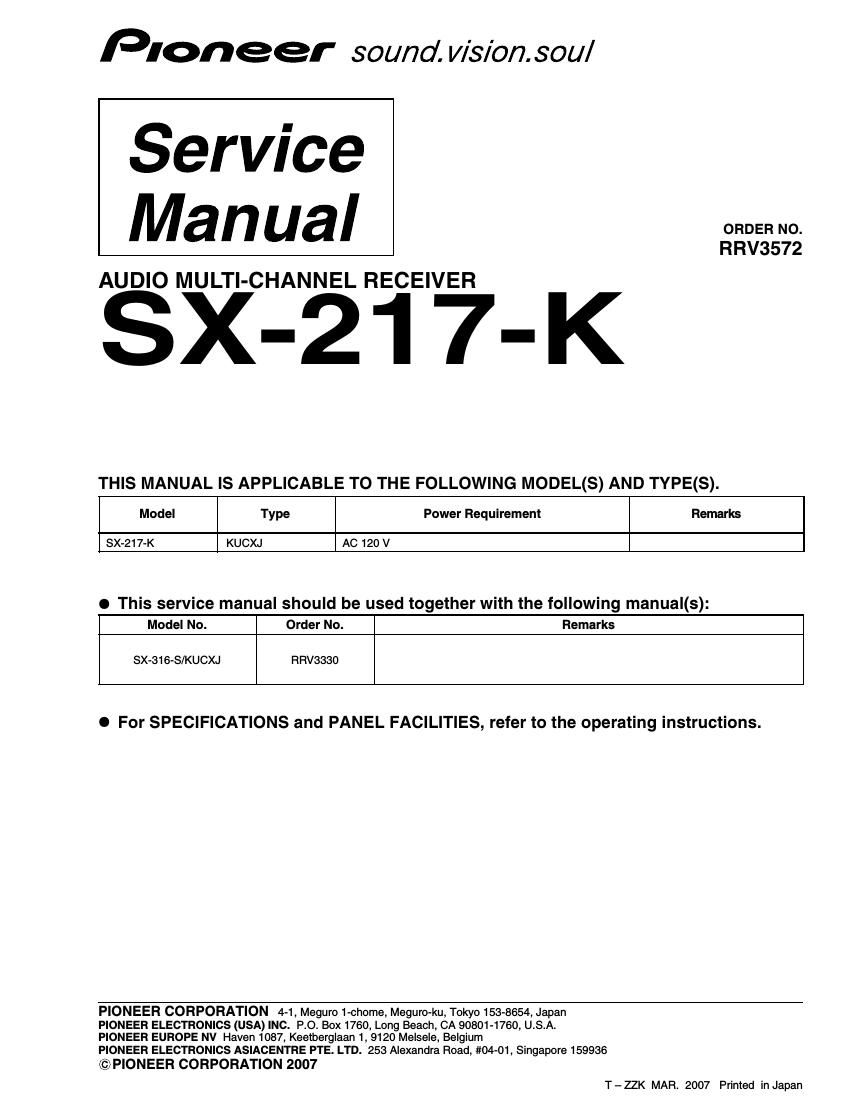

SX-217-K
1. CONTRAST OF MISCELLANEOUS PARTS
jpfy For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to mark on product are used for disassembly.
Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES:
CONTRAST TABLE
SX-217-K/KUCXJ and SX-316-S/KUCXJ are constructed the same except for the following :
Ref.Part No.
No.Mark Symbol and Description SX-316-S SX-217-KRemarks
/KUCXJ /KUCXJ
PACKING SECTION
P7- 6 Operating Instructions (English/French) XRE3113 XRE3165
P7-15 Packing Case XHD3586 XHD3735
EXTERIOR SECTION
P9-24 R Panel XNC3420 XNC3529
P9-32 Bonnet XZN3184 XZN3183
FRONT PANEL SECTION
P11- 6 JOG Knob XAB3048 XAB3052
P11- 7 VOL Knob XAB3051 XAB3053
P11- 8 STDBY BTN XAD3203 XAD3202
P11-10 NSP F Panel Assy XXG3257 XXG3316
P11-11 Tuner BTN XAD3248 XAD3230
P11-12 SUB BTN XAD3249 XAD3231
P11-13 FUNC BTN XAD3250 XAD3232
P11-14 Listen BTN XAD3251 XAD3233
P11-15 JOG Button XAD3252 XAD3240
P11-16 PIONEER Badge VAM1129 XAM3006
P11-17 FRT Panel XMB3236 XMB3283
