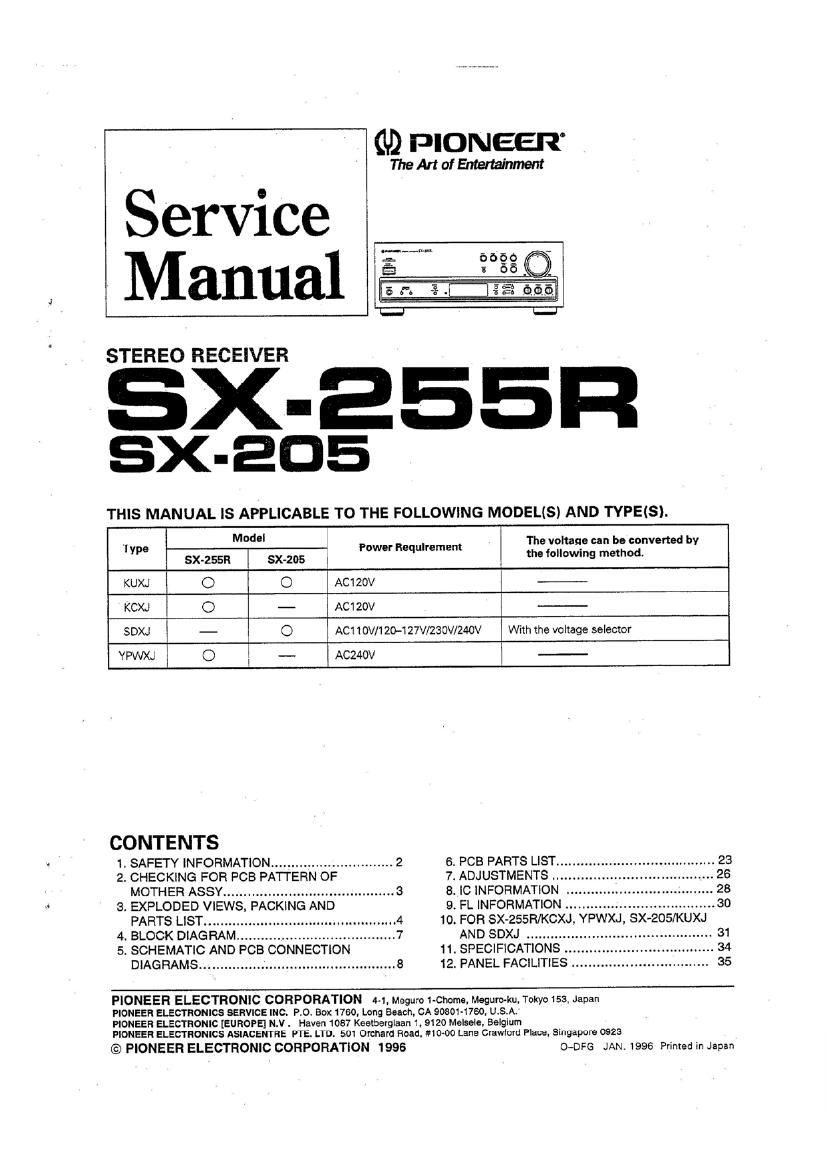

Pioneer SX 255 R Service Manual

Page 1

Service
Manual

STEREO RECEIVER

SX-EEER

SX-EDE

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODELIS) AND TYPEIS).

MM" . The voltage can be convened by
Type SX-255R SX-205 Power Requirement the Iollowlng method.
KUXJ O O Ac1zov
KCXJ O - ACI 20V
SDXJ - O AC110V/120-127V/230V/240V With the voltage selector
YPWXJ O - AC24OV
CONTENTS
1 SAFETY INFORMATION .............................. 2 6. PCB PARTS LIST ...........
2. CHECKING FOR PCB PATTERN OF 7. ADJUSTMENTS
MOTHER ASSY ............................ .. 8. IC INFORMATION
3. EXPLODED VIEWS, PACKING AND 9. FL INFORMATION
PARTS LIST ............ ...4 10. FOR SX-ZSSR/KCXJ, YPWXJ, SX-205/KUXJ
4. BLOCK DIAGRAM .......... ...7 AND SDXJ ................

5. SCHEMATIC AND PCB CONNECTION 11. SPECIFICATIONS
DIAGRAMS ................................................ 8 12. PANEL FACILITIES .............

PIONEER ELECTRONIC CORPORATION 4-1. Meguio 1-Choma. Meguro-ku. Tokyo 153. Japan
PIONEER ELECTRONICS SERVICE INC. P 0. BOX 1760, Long Beach. CA 90801- I760, U. 5. A

PIONEER ELECTRONIC [EUROPE] N. V. Haven 1087 Keelbevglaan 1. 9120 MelseIe Belgium

PIONEER ELECTRONICS ASIACENTRE FTE. LTD. 501 Orchard Road. IMO-00 Lane OraMord Place. Singapare 0923

© PIONEER ELECTRONIC CORPORATION 1996 O-DFG JAN 1996 Printed in Japan

Page 2

SX-255R, SX-205

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. It you are not qualified to perform the repair at this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.

WARNING

Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxlcant which
may cause birth deiocts or other reproductive harm (Calilcmia Health 5. Salary Code, Section 25249.5).

When servicing or handling circuit boards and other components which contain lead in solder, avoid unprotected skin contact with
the solder. Also. when soldering do not Inhale any smoke or fumes produced.

NOTICE

(FOR CANADIAN MODEL ONLY)

Fuse symbols E (iastoperatingluse) and/or a (slow operating fuse) on PCB indicate that replacement parts
must be at identical designation.

REMARQUE

(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible IEE' (fusible de type rapids) et/ou 'EE' (fusible de type lent) sur CCI Indiquent que ies
pieces de remplacement doivent avolr Ia meme designation.

- (FOR USA MODEL ONLY)

1. SAFETY PRECAUTIONS

The loliowing check should be performed for the
continued protection oi the customer and service
technician.
LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe, conduit. etc.) by connecting a leakage

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

current tester such as Simpson Model 229-2 or
equivalent between the earth [round and all exposed
metal parts oi the appliance (Input/output terminals,
screwheads. metal overlays. control shalt. etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.

, Reading should
Leakage sir: 335
current

Device tester
under
test 4» -

Tut all expend
metal curiae-u

6 Also test with plug

§fl mum
(using AC sum:

@ plug as required)

Earth ground

AC Leakage Test

Many electrical and mechanical parts in the appli-
ance have special saiety related characteristics. These
are often not evident from visual inspection nor the
protection aliorded by them necessarily can be ob-
tained by using replacement components rated lor
voltage. wattage , etc. Replacement pans which have
these special safely characteristics are identified in
this Service Manual.

Electrical components having such ieatures are
identified by marking with a A on the schematics and
on the parts list in this Service Manual. _
The use of a substitute replacement component whlc
dose noi have the same solely characteristics as the
PIONEER recommended replacement one. shown in
the parts list in this Service Manual. may create shock,
fire. or other hazards.

Product Safety Is continuously under review and
new instructions are issued from time to time. For
the latest lniormetion. always consult the current
PIONEER Service Manual. A subscription to. or ad-
ditional copies at, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
