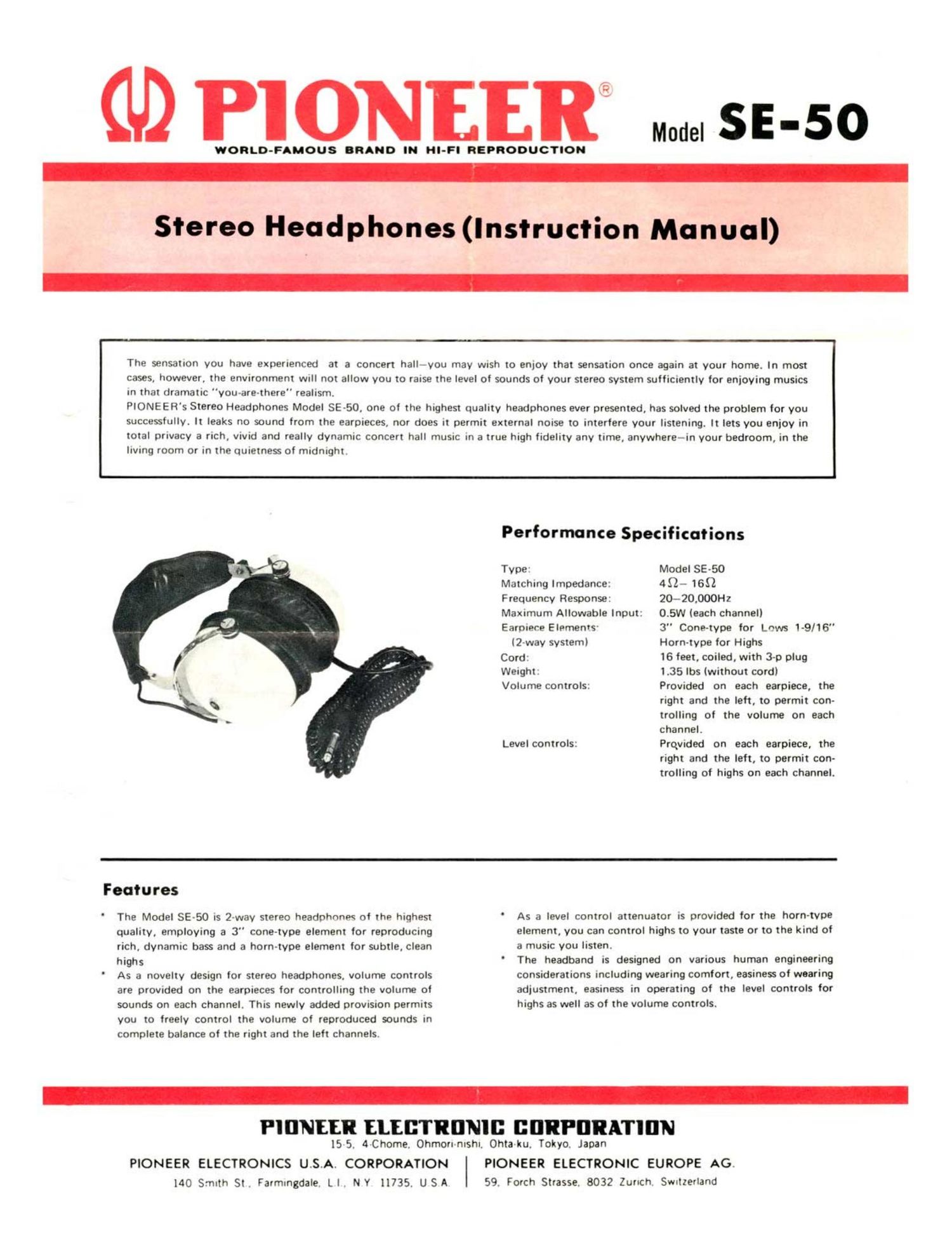

Stereo Headphones (Instruction Manual)

The sensation you have experienced at a concert hall-you may wish to enjoy that sensation once again at your home. In most
cases, however, the environment will not allow you to raise the level of sounds of your stereo system sufficiently for enjoying musics
in that dramatic "you-are'there realism.
PIONEER's Stereo Headphones Model SE-SO, one of the highest quality headphones ever presented, has solved the problem for you
successfully. lt leaks no sound from the earpieces, nor does it permit external noise to interfere your listening. It lets you enjoy in
total privacy a rich, vivid and really dynamic concert hall music in a true high fidelity any time, anywhere-in your bedroom, in the
living room or in the quietness of midnight.

Performance Specifications

Type: Model SE-SO

Matching Impedance: 49- 1652

Frequency Response: 20-20,000Hz

Maximum Allowable Input: 0.5W (each channel)

Earpiece Elemen'S 3" Cone-type for Lows 1-9/16"
l2Away system) Horntype for Highs

Cord: 16 feet. coiled, with 3-D plug

Weight. 1.35 lbs (without cord)

Volume controls: Provided on each earpiece, the

right and the left, to permit con-
trolling of the volume on each
channel

Level controls: Provided on each earpiece, the
right and the left, to permit con-
trolling of highs on each channel.

Features

The Model SE-SO is 2an stereo headphones of the higheSt
quality, employing a 3" cone»type element for reproducing
rich. dynamic bass and a horn-type element for subtle, clean
highs

As a novelty design for stereo headphones, volume controls
are provided on the earpieces for controlling the volume of
sounds on each channel. This newly added provi5lon permits
you to freely control the volume of reproduced sounds in
complete balance of the right and the left channels.

As a level control attenuator is provided for the horn-type
element, you can control highs to your taste or to the kind of
a music you listen.

' The headband is designed on various human engineering
considerations including wearing comfort, easiness of wearing
adjustment, easiness in operating of the level controls for
highs as well as of the volume controls.

PIONEER ELEBTRDNIB BDRPDRATIIIN

155, 4-Chome, Ohmon-nishl. Ohta~ku, Tokyo. Japan

PIONEER ELECTRONICS U.S.A. CORPORATION
140 Smith Sl_ Farmingdale. L l. N Y 11735. U SA

PIONEER ELECTRONIC EUROPE AG,
59. Forch Strasse. 8032 Zurich Switzerland

Page 2

Use of the Model -50

' If your amplifier is provided with "PHONES" jack, simply
connecting the plug on the Model SE-SO cord to the jack will

complete the connection.

' Set the volume of the headphones to maximum.lMAXl

When you wear the SE-SO, rest the earpiece with the coiled
cord on your left ear. The indications of Left and Right are
marked on the headband adjusting knob.

The knob provided on the front of the earpiece support as

you wear the SE-SO is the tone control and the one on the
rear is the volume control.

Adjust the tone control in the best way you desire, depending
on the music you listen.

Rotating the volume control on the right earpiece clockwise
increases the volume; and rotating the volume control on the
left earpiece counterclockwiseaincreases the volume.

First, turn the volume control of your amplifier counter-

clockwise all the way. Then, insert the plug of the SE-SO into

the "PHONES" jack of the amplifier and raise the volume of

the amplifier gradually till you obtain the most pleasing

sound level. .

' If your amplifier is not provided with PHONES" jack, use
PIONEER's Junction BOX JB-21 to connect the Model
85-50 with the outputs of your amplifiers. The tone controls are operated in the same way as You do
(See figure 3). with the volume controls.

' When you need to connect more than 2 sets of the ' When you clean the dirt on the earcushions or on the outer

headphones with one "PHONE" jack, the use of PlONEER's case of the earpiece, wipe it off with soft cloth soaked With

JB-22IY-cord) is recommended. neutral cleanser.

When you desire to use the 85-50 at a place far from the

place where the amplifier is installed, the use of PIONEER's

JB-23 (extension cord) is recommended. The cord can be

extended up to 32 feet in total.

FEAD PAD

HEAD PAD

ADJUSTMENT

HEAD BAND

TONE CONTROL

ADJUSTMENT SWIVE
RIGHT CHANNEL HEADPHONE

ADJUSTMENT

(I) Slide the head band down or up with your hand.
Each headphones unit can be adjusted vertically.

(2) Eachheacbhones unit can be adjusted either to
the right or to the left with the swivel pin as
the axis.

ADJUSTMENT

KNOB EAR CUSHION

\
HEAD emo

HEA PH
0 °NE UN" cono 5m IGIeet

Fig 2

Fig ls

CONNECTION OF JB-23

flasks.

STEREO HEADPHONES EXTENSION
SE-SO CORD JB-23

CONNECTION OF JUNCTION BOX JB-Zl

r LEFT SPEAKER

SYSTEM 1

STEREO HEADPHONES
SE -50

I SELECTOR SW'TCH CONNECTION or JB-ZZ

LOUDSPEAKER TERMINALS

OF THE RECEIVER
4 a: --
l6 RIGHT SPEAKER

+ SYSTEM I I61: --¢==-
STEREO
HEADPHONES
SE-SO - 2

ED:

Y CORD JB-ZZ

-¢:-

Fig 5

Vzg."',-"{-��1.'.-I-.,T"j25"?":":Z'.,N . -.;
33:1?!irliiirfttiriiftft' --��f§ti§?1~:*zvuz'- ' ~ :2:

,v. ."".:I, Ni: --"--'-��-».'.-- 2. .: .M. O
3"-.~1-.'::~"-.ifiitié-i 4f§.*e:;.r:" ' . .z:':'.-

- e. . - -- . . s. e .u-V "
' 04' ' - ' a 1" . . - - ' ' "'.'...tw.. .v. .. .-.u
ewgut-n ' ' 3,.2- . . .. I - , - -., a
