PIONEER Sflfifl
Mllllll

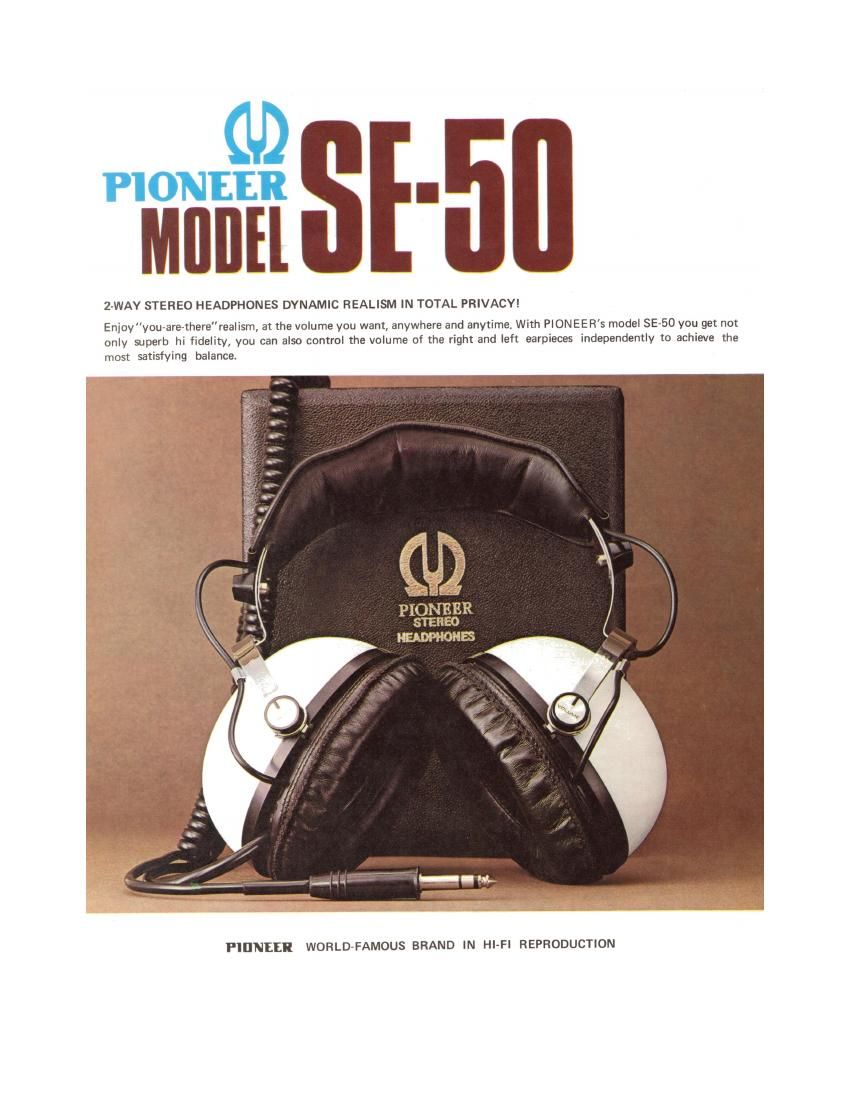

2-WAY STEREO HEADPHONES DYNAMIC REALISM IN TOTAL PRIVACY!

Enjoyyou-arevthere" realism, at the volume you want, anywhere and anytime, With PIONEER'S model SE-50 you get not
only superb hi fidelity, you can also control the volume of the right and left earpieces independently to achieve the
most satisfying balance.

PIONEER
STEREO

HEADPHON ES

/;

FIUNEER WORLD-FAMOUS BRAND IN Hl-Fl REPRODUCTION

Page 2

PIIINIEII Mllllfl SE'EII

FEATURES OF THE SE-SO

2-way stereo headvhanes oi the highest quality, with a 3 cone-type
element for rich dynamic bass and a horn-type element tor subtle, clean

highs.

Volume controls on each earpiece permits free control 0| reproduced

sounds for Deflect balance of right and left channels.

' To let you control the highs to suit the music. a level control attenuator is
provided 'or the horn-type element.

The headband is carefully designed to provide maximum comfort and ease
in operating volume and highs controls.

The knoh provided on the front of the earpiece
support as you wear the SE-SU is the tone control
and the one on the rear is the volume control.
Adjust the tone control tosuit the music. Rotating
the volume control on the left earpiece counter
clockwise increases the volume. The tone controls
are operated in the seine way as the volume
controls.

EAR CUSHIONS
PLUG

ADJUSTMENT SWIVEL

HEAD PAD

ADJUSTMENT KNOB

HEAD FAD

HEAD BAND

ADJUSTMENT K NOB

HEAD BAND

HEADPHONE UNIT

CORD 5m 15 feet

ADJUSTMENT

(I) Slide the head band down or up with your
hand. Each headphone unit can be adjusted
vertically.

[2) Each headphone unit can be adjusted wither
to the right or to the left with the swivel pin
as the axis.

RIGHT CHANNEL HEADPHONE

3)

VOLUME CONTROL TONE CONTROL

SPECIFICATIONS OF THE SE-SO

Type.

Matching impedance
Frequency Response
Maximum Allowable Input
Earpiece Elements.

(2-way system)

Card:
Weight

Volume Controls

Tone controls:

Model SE50
49 e 169
20 - 20,000H2

0.5w (each channel)
Highs

16 feet, called. with 3-p plug
1.35 lbs (without curd)

each channel.

Provided on each earpiece, the right and the
ieit, to permit controlling oi highs on each

Channel.

3" Coneetype (Dr Lows 1-9/16 Horn-type for

Provided on each earpiece, the right and the
left, to permit controlling of the volume on

CONNECTION OF JUNCTION BOX JB-ZI

If your amplifier is not provided with "PHONES" jack, use PIONEER'S
junction BOX JBV2I to connect the Model SE50with the outnutsof your
amplifiers.

)7

(-: LEFT SPEAKER
sverM (A'Vlafll

STEREO HEADPHONES

@@
@fl

l-WNIYE

isnecme swlrcH

LDUDSPEAKER TERMINALS
or THE RECEIVER (#4681!

_ RIGHT SPEAKER
\ __ svsTEM ia~lenl

Pl ONEER

FIIJNEEII ELEETIIIJNII: [HIRFIIIIIATIIIN

I5-5, Lchamel Ohmorirnishi Ohta-ku, Tokyo, Japan

sail 0K7 Plil'cli llJaml

PIONEER ELECTRONIC (EUROPE) AG.
59, Forch Strum, 8032 Zurich, Switzerland

PIONEER ELECTRONICS U.S.A. CORPORATION
140 Smith SL, Farmingdale, L.l., N.V. 11735, U,S.A.
