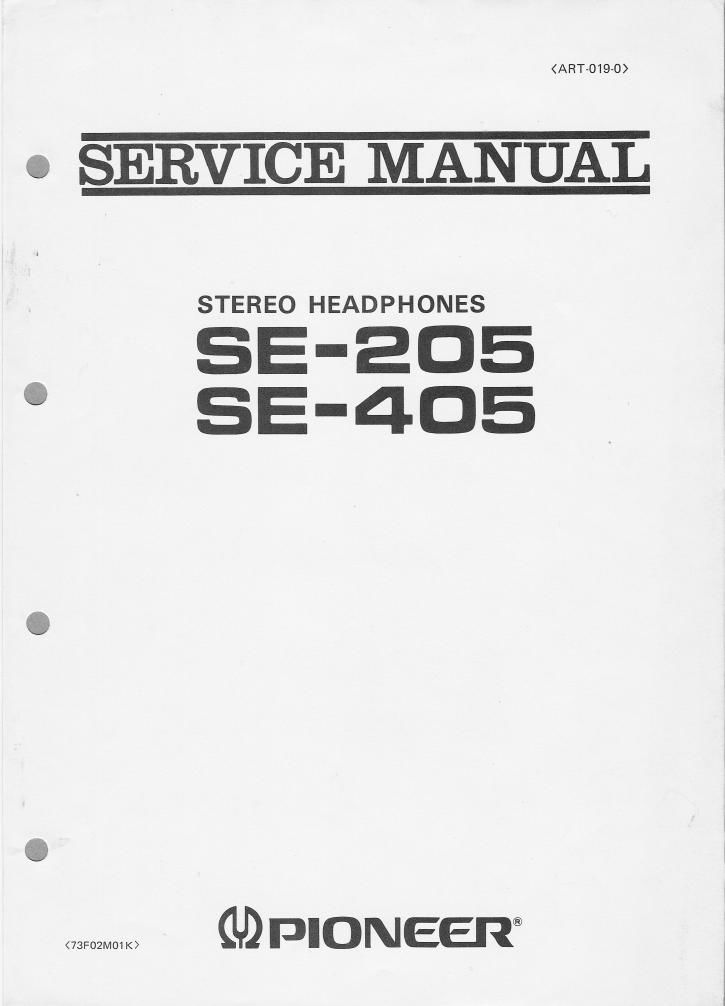

Pioneer se 205 service manual

Page 2

1 . SE-205

SPECIFICATIONS

Speaker ............................ 70¢mm (3 in.) dynamic speaker
Impedance ................................................ SQ
Matching impedance .................................... 4 to 169
Frequency response ............................... 20 to 20,000Hz
Sound pressure level ................................. 115dB/03V
Maximum input ........................... 500mW (each channel)
Cord length ........................... 2.5m (8.3feet), with 3-P plug
Weight .................................... 4509 (16 oz), less cord
NOTE:

Specifications and the design subject to possible modification without notice
due to improvements

PART LISTS NOTICE:
Any parts asteriskedl) are subject to being not supplied,
Key No. Description Part No.
1 Ear pad SCD-456-0
2 Acoustic material A SMT7094-0
3 Speaker protecter R SNK-094-0
4 Speaker 7021 F
5 Acoustic material B SMT-093»0
6 Speaker mounting board SN K-097-0
7 Case R assembly SXC-091-0
7-1 Case R SN K-oes-o
7-2 Name plate SN 3080-0
8 Head pad SCD-457-0
9 Head band A SNB-790-O
10 Slide knob FI SXC-OSQ-A
11 Head band B SNB-078-0
12 Slide knob L SXC-092-0
13 Case L assembly SXC«088-0
13-1" Case L SN K0950
13-2 Name plate SNB-OBO-O
14 Speaker protecter L SNK-093-0
15 Cord with 34" plug SXC-OQO-O
Operating guide SHE-0704)
Packing case SHK»130-0
