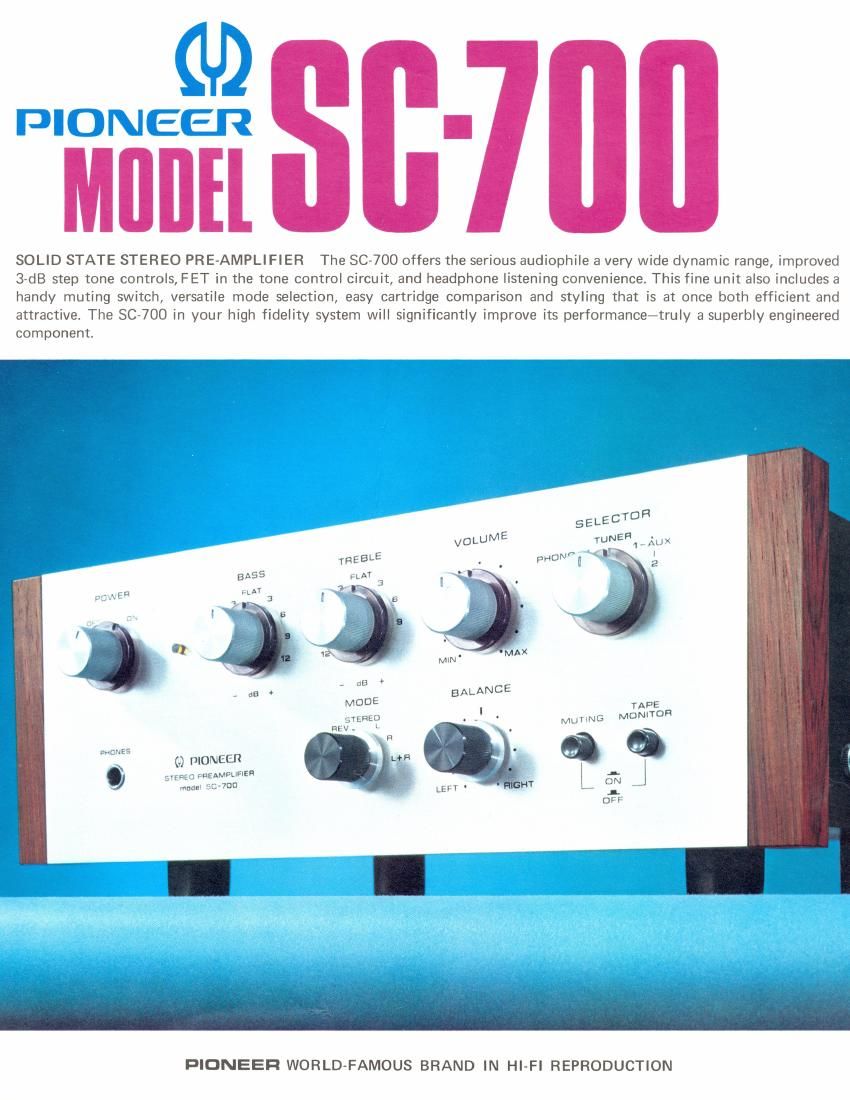

SOLID STATE STEREO PRE-AMPLIFIER The SC-7OO offers the serious audiophile a very wide dynamic range, improved
3~dB step tone controls, FET in the tone control circuit, and headphone listening convenience. This fine unit also includes a
handy muting switch, versatile mode selection, easy cartridge comparison and styling that is at once both efficient and
attractive. The 50700 in your high fidelity system will significantly improve its performanceitruly a superbly engineered
component.

MODE

STEREO
REV . v

TAPE
MuTlNG MDNiTDR

(a DIONEER

g rear: manmeusien

may canon

PIONEER WORLD-FAMOUS BRAND IN Hl-Fl REPRODUCTION

Page 2

Plllllllll Mllllll Ell-7111]

FEATU R ES

WIDE DYNAMIC RANGE

The SC-700 employs a direct-coupled, 3»
stage negative feedback circuitry and quality
silicon transistors assuring correct equaliza-
tion or compliance to the RIAA Standard,
and effectively reduces clipping. The result
is more natural sound at any volume level
and wide dynamic range.

EASY CARTRIDGE COMPARISON

The SC-700 has two phono inputs for mag-
netic cartridge operation to allow you to
compare and evaluate the tonal quality of
different cartridges.

CONVENIENT MODE SELECTOR

The mode selector allows a choice of five
modes of operation; reverse, stereo, left
channel only, right channel only, and left
and right channels combined in each speaker.

MODE
13H Ht L)

REV i,
n, \

IMPROVED TONE CONTROL SYSTEM
There are 3-dB step controls for both bass
and treble. Their ranges have been deter-
mined by Pioneer's long acquaintance with
the musical tastes of high fidelity enthusiast.
FET's are included in the tone control cir<
cuit. There is no level fluctuation of mid-
range frequencies while tone is being adjust-
ed.

lira i

MODE

arm; _\
HEADPHONE CONVENIENCE
The SC-700 may be monitored with a head-
set, to check the condition of the system and
the tonal quality while making recordings
with the use of the tape monitor switch on
the front panel. And headphones, of course,
let you listen in private when this is more
convenient, without main amplifier and
speakers.

MUTlNG SWITCH

The 80-700 is provided with a muting switch
to attenuate the level of sound by 20 dB, or
at least a half turn of the volume control -
handy when the phone suddenly rings, for
example, without using the volume control
knob.

CLEAN STYLING

The controls are elegantly and efficiently
laid out, and the panel is tipped with at-
tractive wooden endpieces. The unit blends
perfectly with Pioneers main amplifier
Model SMV700.

SPECIFICATIONS

AUDIO SECTION

Maximum Output
Voltage

Harmonic Distortion
Frequency Response
Signal to Noise Ratio

Less than 0.05% at 2 V

PHONO' more than 80

4 V rms (less than 0.5% distortion at 1 kHz)

10 to 60,000 Hz :1 dB (AUXl

Muting
Output Jacks and
Terminals

Load Impedance

dB 54 V "HF MISCELLANEOUS

AUX' more than 100dB al4 V (IHF)

Input Sensitivity and
Impedance

(at 1 kHz 4 V output)
Equalization
BassControl

Treble Control

NFB type RIAA

PHONO 1,2: 4 mV / 50K ohms
AUX 1, 2 ' 250 mV / 220K ohms
TUNER: 250 mV / 220K ohms

+12 dB, -9 dB at 100 HZ (3rdB step)
+9 dB, 712 dB at 10,000 HZ (3~dB stepl

Power Requirements
Power Consu mption
Dimensions

Weight

720 dB, swnchable to ON-OFF

Output Impedance: less than 5 ohmsat 1 kHz
Stereo Headphone Jack (8 to 16 ohms)

TAPE REC/P B Connector (DIN type)

More than 20K ohms

110, 120, 130, 220 or 240 volts (switchable)
5 VA

1143/16" (W) X 471/Z"(Hlx10(Dl

300 (W) x 115 (H) x 254 (Di mm

9 lbs / 4.1 kg (Without package)

13 lbs / 5.9 kg (With packagel
