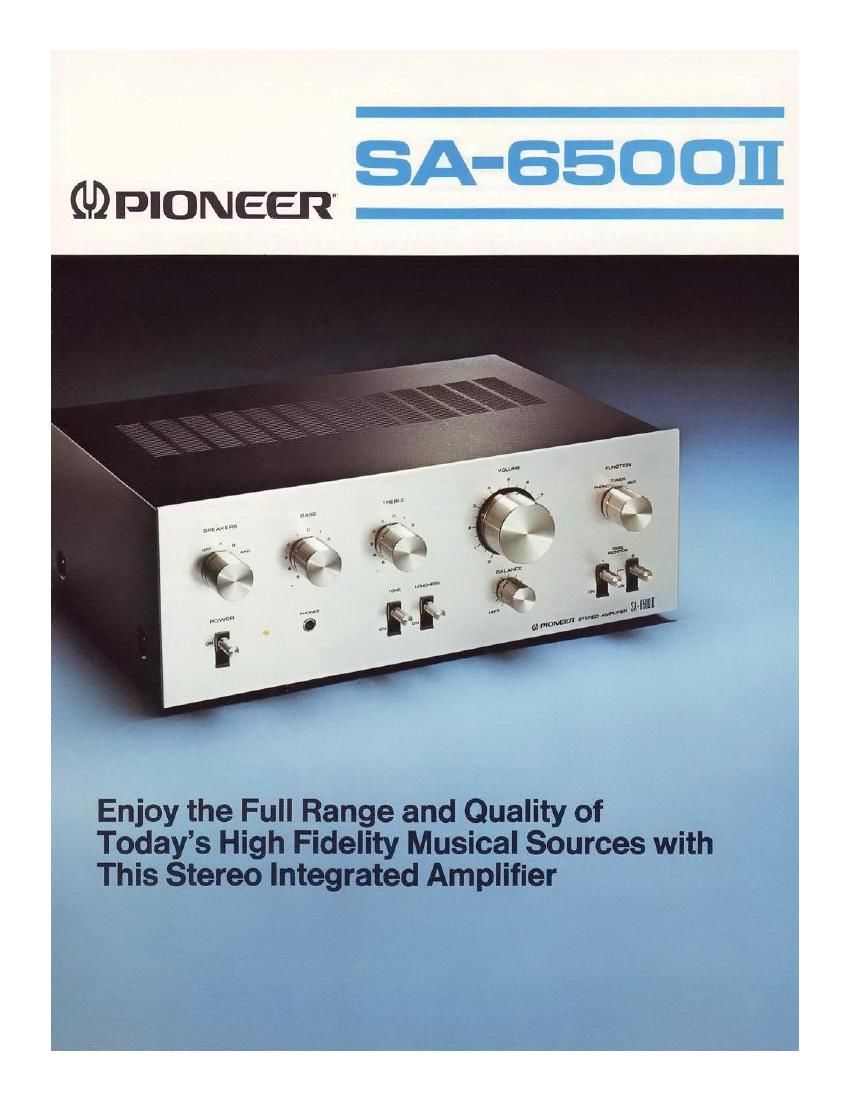

GDPIONEER"
Enjoy the Full Range and Quality of
Todays High Fidelity Musical Sources with
This Stereo Integrated Amplifier
SA-BEDOII
Low-Distortion, High-Power Performance in
Stereo Integrated Amplifier with Wide Dynamic
Range Equalizer
Pioneer stays ahead in hi-fi electronics by
designing circuits which more effectively clean
up your music and protect its dynamic range.
The SA-6500II combines these advanced cir-
cuits with a new design concept to provide
no-nonsense musical performance at a pleas-
ing price. The big power output is continuous
30 watts per channel, min. RMS at 8 ohms
from 20 to 20,000 hertz, with no more than
0.1% total harmonic distortion. Precision CR
tone control circuit (each control has 11 click
stops), a high performance equalizer amplifier
for wide dynamic range, and slmpie-to-uee
basic features make the popularly-priced
SA-6500H even more appealing as a worth-
while investment in advanced hi-fi electronics.
Visit your Pioneer dealer, and read the Inside
pages to learn how you can stay ahead with
Pioneer.
HIGH-PERFORMANCE PHONO
EOUALIZEf-l: RIM EQUALIZATION
i0.3d8
When you play today's improved phono-
graph records your amplifier must be
main amnion
WEIR:
Ilul rue-Me Hm
ourrur mum-.- no
new LOAD a bum-
wrestle» am
WLEVENIIIV
fl
WINK
able to handle a high Input level or suf-
fer a degree of unpleasant distortion.
The SA-6500l! employs a high Input
voltage-resistant lc In the phone equal-
izer section in order to avoid distortion.
its split power supply system (plus 21V.
minus 19V) steps up the very large mar-
gin of PHONO input level to 200mv
(1 kHz. THD 0.1%) at input sensitivity of
2.5mV. The result of this solid-state
sophistication is unquestionably de-
pendable performance. You hear all the
dynamics and nuances of the most
highly engineered records with the least
possible distortion. Deviation from the
RIM equalization curve ls only :l:0.3dB.
WWW
mmwa
FWINN!
TONE CONTROL USES CR
CIRCUITRY: LOW-NOISE.
LOW~DISTORTION
.fiffi > o i
The two-transistor (PNP-NPN) tone con-
trol section of the Pioneer SA-SSOOH
uses select low-noise. low-distortion on
elements to expand dynamic range.
The OR elements permit versatile tonal
adjustments so that you can more
precisely match the acoustical proper-
meow-not.
WYWING
FREOLENCY IN N:
