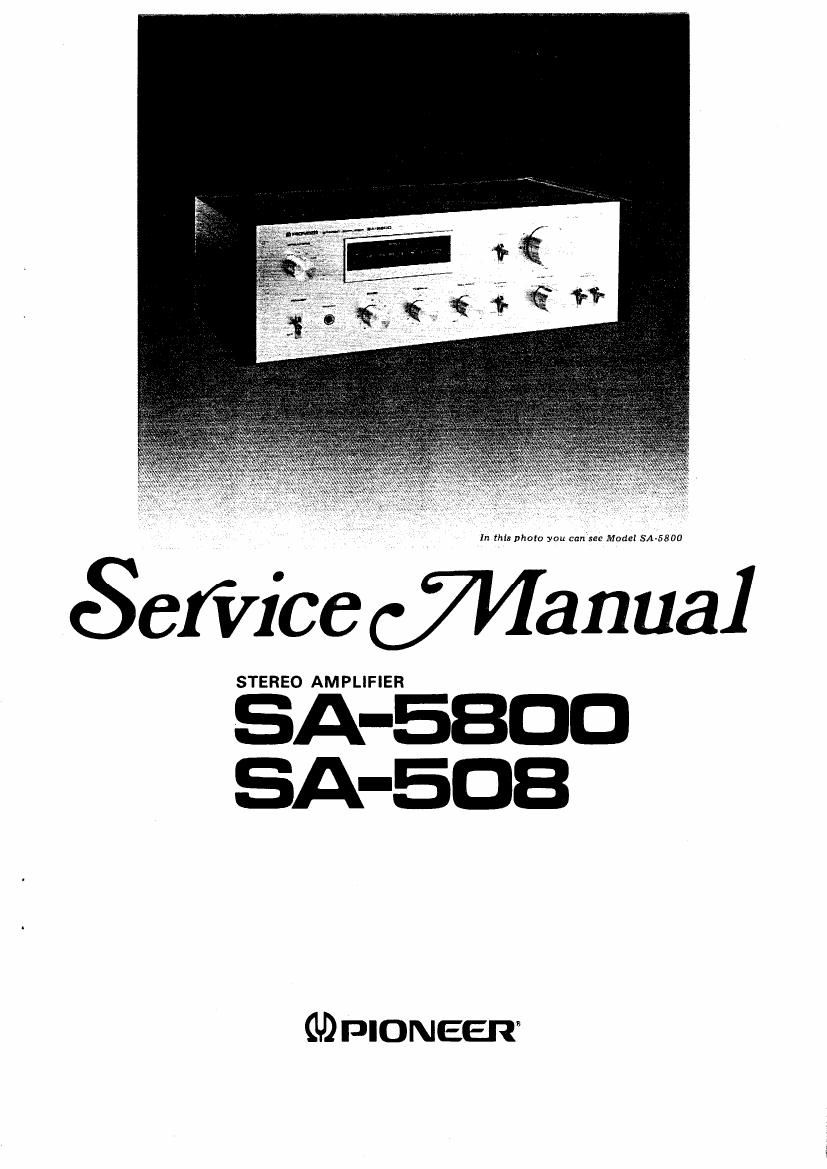

Both Model SA«5800 and Model SA-508 have the same basic performance. The major difference
is in appearance, Model SA-5800 being fitted with wooden side cover and top cover, while
Model SA-508 employs metal cover. The following table is displayed on the SA-5800 and
SA-508.
MODEL SA-5800
Type Voltage Remarks
KU 120V only U.S.A. model
KC 120V only Canada model
MODE L SA-508
Type Voltage Remarks
KU 120V only U.S.A. model
S 110V, 120V, 220V, and 240V (Switchable) General export model
HE 220V and 240V Europe model
HB 220V and 240V United Kingdom model
HP 220V and 240V Oceania model
0 This service manual is applicable to the KU type of the Model SA-5800 and the Model SA-508. When re-
pairing the KC type of the Model SA-5800 and the 5 type of the Model SA-SOB, please see the additional
service manual (ART-373), and for HE, HB, HP types of the SA-508, please see the additional service
manual (ARTv374).
CONTENTS
I. SPECIFICATIONS ..................... 3 9. SCHEMATIC DIAGRAM, P.C. BOARD
2. FRONT PANEL FACILITIES .............. 4 PATTERNS AND PARTS ST
3_ BLOCK DIAGRAM ..................... 6 9.1 Miscellanea ...................... 14
4. CIRCUIT DESCRIPTIONS ................ 6 9'2 5mm Diaga'" """""""""" 15
5' DISASSEMBLY ..................... 8 9.3 P.C. Board Connection Diagram ......... 18
6. ADJUSTMENTS .................... 9 9.4 Parts List of PL. Board Assemblies ....... 21
7. PARTs LOCATION .................... 10 10' PACK'NG """""""""""""" 23
a. EXPLODED VIEW ..................... 12 11. SUPPLEMENTS FOR MODEL SA-508/KU ..... 23
