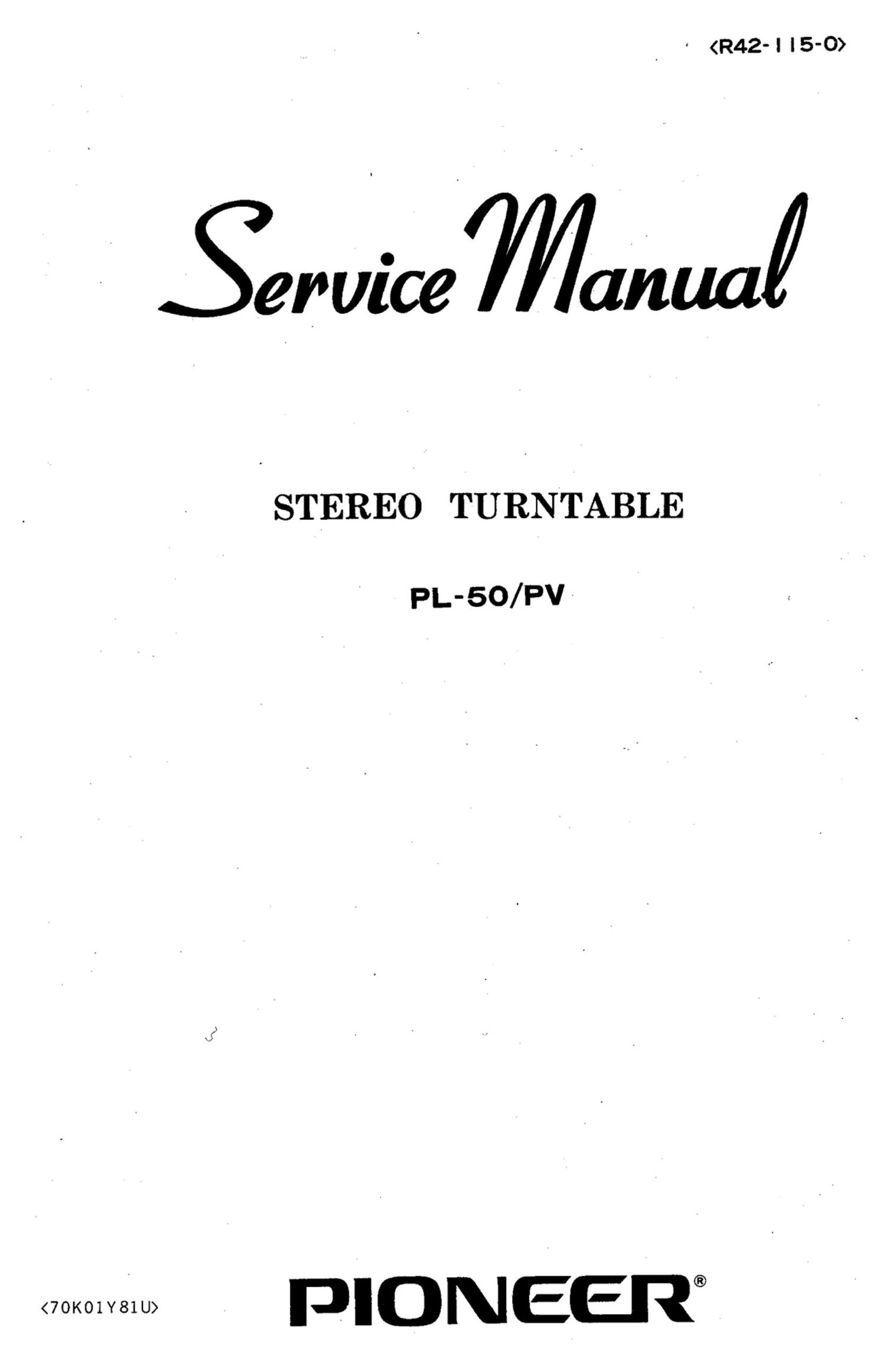

' Ser vice Mammy
STEREO TURNTABLE
PL-50/PV
1 . SPECIFICATIONS
0 Motor and turntable
1. Motor: _ 4-pole synchronous.
2. Turntable drive: Belt-driven.
3. Speed: Two speeds, 33 1/3 and 45 rpm.
4. Wow and flatter: 0.08% (WRMS) qr less.
5. S/N: ' so dB or more. .
6. Turntable platter: 12" (30 cm) diameter aluminum alloy.
0 Tonearm
1. Tonearm:' Static balance type, Pipe arm.
2. Effective arm length: 224 mm.
3. Tracking force range: 0.89 ~ 99.
4. Furnished cartridge: PC-35 (Induced Magnet Type).
0 Sub functions
1. Automatic return.
2. Anti-skating force control.
3. Lateral balance control.
4. Overhang index stand.
5. Arm elevator.
0 Miscellaneous
1. Power requirement: AC 220 ~ 240, 110 ~ 130, 60 Hz, 50 Hz.
2. Power consumption: 25VA (17W) MAX.
3. Dimensions: 7 3/4"(H) x 19 19/32"(W) x 16 13/16"(D)
197(H) x 498(W) x 427(0) mm.
4. Weight: 22 lb. (10 kg.).
PC-35 SPECIFICATIONS I
1. Type: Induced magnet type.
2. Frequency response: 10 Hz to 25, 000 Hz.
3. Channel separation: Better than 25 dB at 1,000 Hz.
4. Output: 3.5 mV at 1.000 H2 (50 mm/sec or 2 inches
persecond).
5. Load resistance: 30 k9 to 100 k9.
6. Stylus: 0.5 mil diamond (PN-35).
7. Compliance: 10 x 10" Cm/dyn at 100 Hz.
8. Requirement stylus
pressure: 2 to 3 grams.
9. Weight: 1/4 oz. 7.2 grams.
10. Overall dimensiOns: 1 3/ "(L) x 5/8"(W) x 23/32"(H)
35(L) x 16(W) x 18(H) mm.
11. Mounting: Conforms the EIA standards.
The mounting hole pitch 1/2(12.7 mm).
Note: . Specifications and the'design subject to possible modification
without notice due to improvements.
PL-SD/PV
