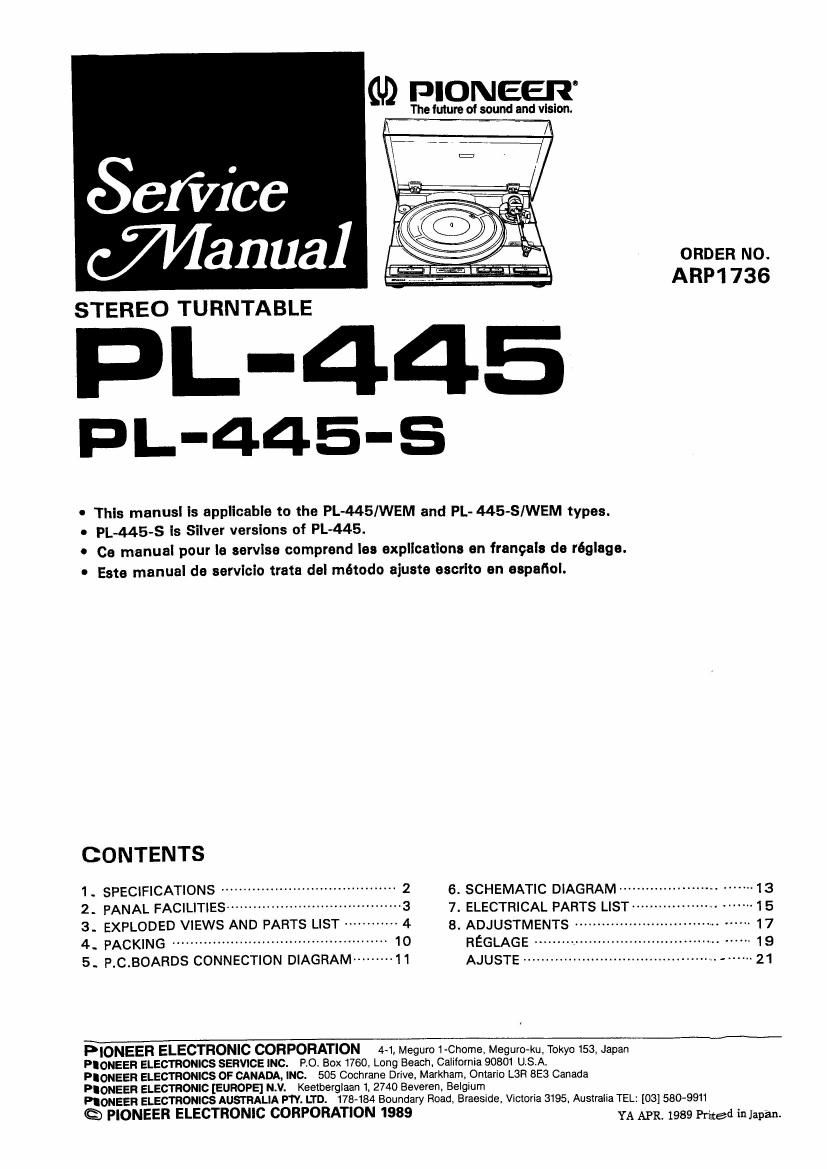

STEREO TURNTABLE
L-445
PL-445-S
' This manusl ls applicable to the PL-445/WEM and PL- 445-SIWEM types.
0 PL-445-S Is Silver versions of PL-445.
- Ca manual pour la servise comprend Ies explications an frangais do réglage.
' Esta manual de servicio trata del método aiuste escrlto en espafiol.
CONTENTS
1. SPECIFICATIONS --------------------------------------- 2 6. SCHEMATIC DIAGRAM ------- ~-13
2- PANAL FACILITIES ---------------------- -- 7. ELECTRICAL PARTS LIST~
3.. EXPLODED VIEWS AND PARTS LIST ------------ 4 3, ADJUSTMENTS ................................... 17
4. PACKING ---------------------------------------------- 10 REGLAGE ......... . ...................................... 1 9
5- P.C.BOARDS CONNECTION DIAGRAM -------- 11 AJUSTE -------------------------------------------------- 21
PIONEER ELECTRONIC CORPORATION 4«1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE INC. PO. Box 1760. Long Beach. California 90801 USA.
PIONEER ELECTRONICS OF CANADA. INC. 505 Cochrane Drive Markham, Ontario LSR 8E3 Canada
PIONEER ELECTRONIC [EUROPE] N.V. Keelberglaan I, 2740 Beveren, Belgium
PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside. Victoria 3195. AuslraIia TEL: [03] 580-9911
© PIONEER ELECTRONIC CORPORATION 1989 YA m. 1989 Med in Japan.
1. SPECIFICATIONS
PHONOGRAPH MOTOR AND PLATTER
Motor tvpe ............................
Drive system .....
Speed oi totation
Wow and Flutter .
Quartz PLL Hall motor
Direct dvive system
2 speeds: 33-1/3, 45 rpm
Less than 0.012% (WFIMSI
0.025% [WRMSI
10403516 WTD Peak (DIN!
Values marked with an " ' " designate the wow and flutter for the motor,
and do not include the cartridge 0/ (unearm load
SIN vatio .................................... More than 78 dB (DIN-Bl
Platter ..................... t. Diameter 9304 mm aluminium die-cast
TONE ARM
Yype ....................... , Static balance straight pipe arm
Usable cartridge weight. ........ 3 9 (min) to 8 9 (max)
SUPPLIED CRATRIDGE
Type ................. MM type
Replacement stylus, PNA260
Stylus ................ 06 mil diamond
2.5 mV (1 kHz, 5 cm/s, LAT Peak)
1.5 w 2.5 gtOptimum value 20 g)
........ 10 Hz - 30,000 Hz
Univetsal type
Output voltage ...........
Suitable stylus pressuve
Frequency response .....
Head shell type
Cartridge weight
Load resistance
POWER SUPPLY, OTHERS
Powev tequivements .............. a.c. 220 - 240 Volts ~, 50/60 H1
Power consumption . .................................. i 1 W
External dimensions . 420 (W) x 113 M) x 355 (D) mm
168/16 (W) x 4-5/8 (H) x 14-3/8 (D) in
Netweight ................................................ 5.4 kg (11 lb 14 oz)
SUPPLIED ACCESSORIES
EP adaptor .............
Operating instructions .
NOTE:
Specifications and design sub/act to posyble modification without
notice, due to improvements.
i
l
