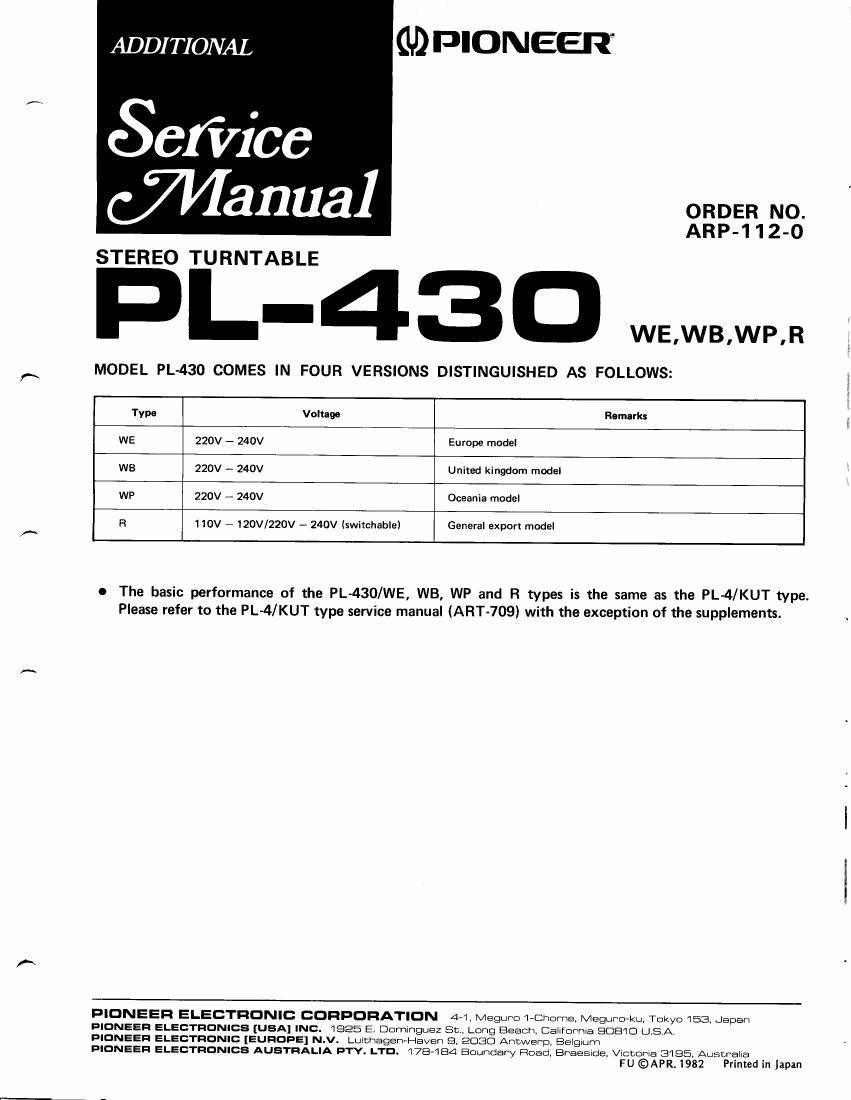

ADDITIONAL
Sefiice
Wanna]
STEREO TURNTABLE
L-43O WE,WB.WP.R
MODEL PL-430 COMES IN FOUR VERSIONS DISTINGUISHED AS FOLLOWS:
ORDER NO.
ARP-1 1 2-0
Type Vultage Remarks
WE 220V ~ 240V Europe model
WB 220V - 240V United kingdom modal
WP 220V E 240V Oceania model
R 110V - 120VI220V v 240V (switchable) Generll export model
o The basic performance of the PL-430/WE, WB, WP and R types is the same as the PL-4/KUT type.
Please refer to the PL4/KUT type service manual (ART-709) with the exception of the supplements.
PIONEER ELECTRONIC CORPORATION 44, Magma I-Chomev Magma-kn. Tokyo 15:3, Japan
PIONEER ELECTRONICS [USA] INC. 1825 E. Dominguez St, Long Beach Callfornia 90810 LJ.S.A,
PIONEER ELECTRONIC [EUROPE] N.v. Lumhagen-Haven 9. 2030 Answerp. Belgium
PIONEER ELECTRONICS AUSTRALIA prv. LTD. 478-184 Eloundary Road. Braeside, Victom- 3195. Austr'aha
FU ©APR.1982 Printed in Japan
PL-430
1. SPECIFICATIONS
Motor and Turntable
Drive System ...................... Directdrive
Motor ........................ DC servo motor
Turntable Platter .......... 310mm diam aluminum
alloy die-cast
Speeds ...................... 33-1/3 and 45mm
Wow and Flutter ......... Less than 0.014% (WRMS)
0.025% (WRMS)
0.035% (DIN)
Values marked with an *" designate the wow and flutter
for motor, and do not include the cartridge or tonearm
load.
Signal-to-Noise Ratio ........ More than 78dB (DIN-B)
(with Pioneer cartridge model (C-220)
Tonearm
Type .......... Static-balance type, Straight pipe arm
Effective Arm Length ................... 221mm
Overhang ........................... 15.5mm
Usable Cartridge Weight ........ 39 (min) to 8g (max.)
Subfunctions
Auto-return mechanism, Anti-skating force control, Stylus
pressure direct-readout counterweight, Cueing device,
Strobe light, Free stop hinges
Miscellaneous
Power Requirements
WE, WB, WP models ...... AC220-240V~, 50, 60Hz
R model ............... AC110-120/220-240V~
(switchable), 50, 60Hz
Power Consumption ...................... 12W
Dimensions .......... 420(W) x 108(H) x 367(D)mm
15-1/2(W) x 4-1/4(H)x14-7/16(D)in.
Weight ...................... 5.8kg/12 lb 13 oz
PC-220 Specifications (WE, WB, WP models only)
Type ...................... Moving magnet type
Stylus .................. 0.5 mil diamond (PN-220)
Output Voltage ........................ 2.5mV
(1kHz, 50mm/s Peak velocity, LAT)
Tracking Force ............. 1.79 to 2.39 (proper 29)
Frequency Response .............. 10 to 30,000 Hz
Recommended Load ..................... SOkQ
Weight .............................. 5.59
PC-3MC Specifications (R model only)
Type ....................... Moving coil type
Stylus ................. 0.5mil diamond (PN-3MC)
Output Voltage ....................... 2,5mV
(1kHz, 50mm/s Peak velocity, LAT)
Tracking Force ............. 1.79 to 2.39 (proper 29)
Frequency Response .............. 10 to 32,000Hz
Recommended Load .................... SOkQ
Weight .............................. 319
Accessories
EP Adapter ............................. 1
Operating Instructions .................... '. . s 1
NOTE:
Specifications and design subject to possible modification
without notice, due to impromements.
