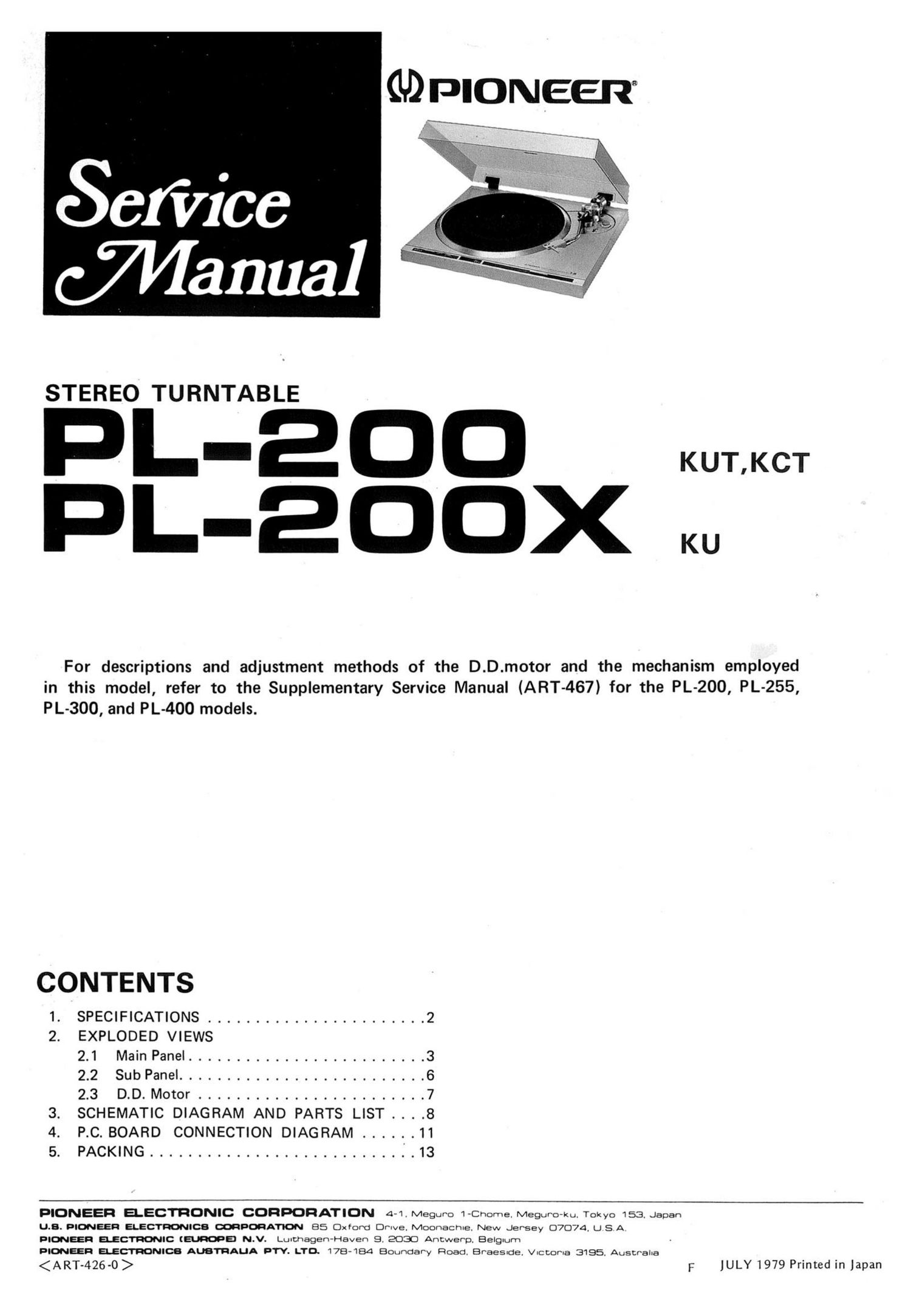

STEREO TURNTABLE
L-E KUT,KCT
L-E X W
For descriptions and adjustment methods of the D.D.motor and the mechanism employed
in this model, refer to the Supplementary Service Manual (ART-467) for the PL-200, PL-255,
PL-300, and PL-4OO models.
CONTENTS
1. SPECIFICATIONS ....................... 2
2. EXPLODED VIEWS
2.1 Main Panel ......................... 3
2.2 Sub Panel .......................... 6
2.3 D.D. Motor ........................ 7
3. SCHEMATIC DIAGRAM AND PARTS LIST . . . .8
4. P.C. BOARD CONNECTION DIAGRAM ...... 11
5. PACKING ........................... ' .13
p'ONEER ELECTQDN'C CORPORATION 4-11 Meguro 1 (Shame. MeguPo-ku. Tokyo 1523. Japan
LLB. DIDNIEER ELECTRONIICB (PENATION 85 Oxford Drive. Moonachne. New Jersey 07074, U S A
PICNUEEF! ELECTRONIC (we N.V. Lunthagen-Haven S. 2033 Antwerp, Belgium
PIMEER ELECTRONICS AUBT'RAUA PTY. LTD. 178-184 Beundary Goad. Braesude, VICCOVIB 3195. Australia
1. SPECIFICATIONS
Motor and Turntable
Drive System ................................ Direct-drive
Motor ................................... DC servo motor
Turntable Platter .......... 310mm diam. aluminum alloy die-cast
Moment of Inertia ........... 150kg-cm2 (including platter mat)
Speeds ................................. 33-1/3 and 45rpm
Speed Control Range ................................. :2%
Wow and Flutter ................... Less than 0.025% (WR MS)
Signal-to-Noise Ratio ................. More than 75dB (DIN-B)
(with Pioneer cartridge model PC-135)
Tonearm
Type .................. Static-balance type, S-shaped pipe arm
Effective Arm Length ............................. 221mm
Overhang ....................................... 15.5mm
Usable Cartridge Weight ............. 49 (min.) to 99 (max.)
Subfu nctions
Auto return mechanism, Anti-skating force control, Stylus pressure
direct-readout counterweight, Cueing device, Strobe light, Free
stop hinges
Semiconductors
le ................................................ 2
Transistors ........................................... 2
Diodes ............................................. 2
Hall Elements ........................................ 3
Miscellaneous
Power Requirements ................ AC120V, 50, 60Hz
Power Consumption ......................... 7W
Dimensions ............... 420(W) x 96(H) x 365(Dlmm
16-1/2(W) x 3-13/16(H) x14~3/8(D)in.
Weight ......................... 6kg/13 lb 4 oz
. Accessories
EP Adaptor .......................................... 1
Cartridge mounting parts (KCT, KUT)
Cartridge mounting screws .................... 6
Cartridge mounting nuts ...................... 2
Cartridge mounting washers . . . . ' ................ i 2
Operating Instructions ......................... 1
PC-135 Specifications (PL-200x KU)
Type ........................ Induced magnet type
Stylus .................... 0.5 mil diamond (PN-135)
Output Voltage ......... 3mV (1 kHz, 50mm/s Peak velocity,
LAT)
Tracking Force ....... . ......... 1.59 to 2.39 (proper 29)
Frequency Response .................. 10 to 25,000Hz
NOTE:
Specifications and design subject to possible modification without
notice, due to improvements.
