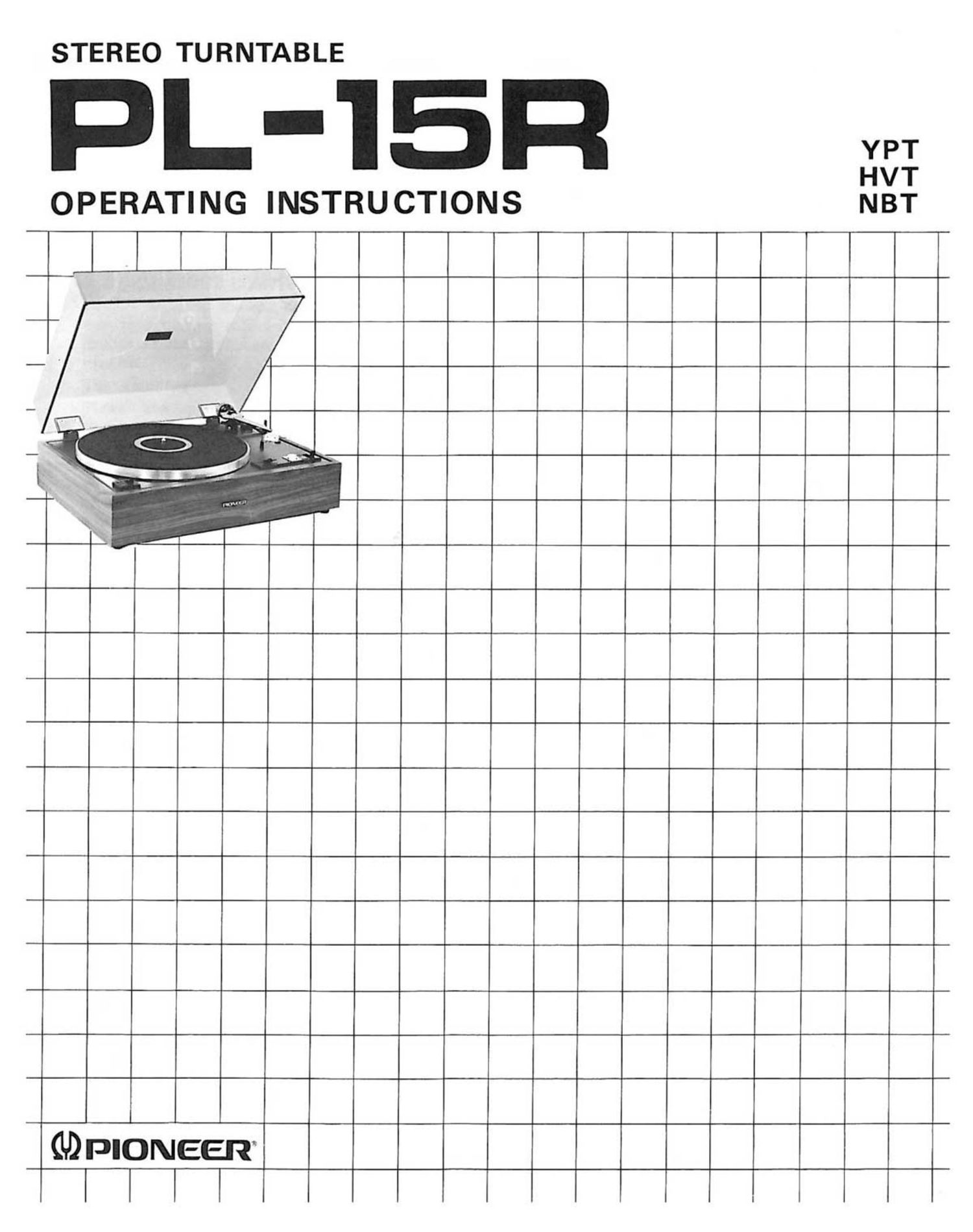

This is the 12 pages manual for pioneer pl 15R Owners Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Thank you very much for your purchase of Pioneer model PL-l 5R.
You will get many years of pleasure from this quality stereo turn-
table. To get the most from this easy-to-use turntable, please read
the operating instructions and follow the directions indicated. For
the psychological benefit of those who still want to use their
_.optional phono cartridges, no phono cartridge is equipped with this
turntable. The first thing you have to do is to attach your option
to a head shell referring to Attaching a phono cartridge" in the
instructions.
i Before using this turntable, you should
{lubricate the oil holes while reading
LUBRICATION.
I Because this unit may fall short of oil
i during the shipments.
FEATURES
POPULAR BELT-DRIVE SYSTEM
The Pioneer belt-drive system built into this unit owes its
popularity to the superior rotation speed stability and
improved signal-to-noise ratio provided by the polyurethane
belt. This system is unaffected by changes in temperature
and humidity. That is one of the reasons for the outstand-
ing performance of the PL-ISR.
HIGH-QUALITY MOTOR
The 4-pole synchronoUs motor which drives the PL-lSRs
precision-formed die-cast aluminum alloy platter assures
new levels of smooth, rumble-free performance with no
speed variations.
ANTI-SKATING DEVICE ENSURES
PERFECT TRACKING
To keep the stylus tracking perfect along the center of the
record groove (in other words, to compensate for the in-
ward thrust of the tonearm), a specially developed spring-
activated anti-skating device is provided. Its effect is to
guarantee fine channel separation when playing stereo
records.
DIRECTLY READABLE TRACKING FORCE
' ADJUSTMENT
The tracking force is adjustable over a wide range so that
practically any cartridge (with standard EIA plug) can be
accommodated.
S-SHAPED TON EARM
The light-weight and light-tracking tonearm is shaped for
almost perfect geometry and minimum tracking error.
GOOD DESIGN - A JOY TO LOOK AT
The main panel's matted finish lends a soft, subdued touch
to the overall design, it is complemented by the smoked
dust cover.
The PL-lSR is a smart, modern addition to any listening
room.
CONTENTS
Features .................................................. 2
Typical Stereo Setup ............................... 3
Installation .............................................. 3
Parts Identification .................................. 4
Assembly ................................................. 5
Attaching a Phono Cartridge ................... 6
Tonearm Adjustment .............................. 6
Attach the Dust Cover ............................. 7
Connection to Stereo Amplifier .............. 7
Operation ............................................... 8
How to Operate the Turntable ................ 9
Important: Observe Carefully .................. 9
Lubrication ............................................. 10
Troubleshooting ...................................... 10
Specifications .......................................... 1 1
