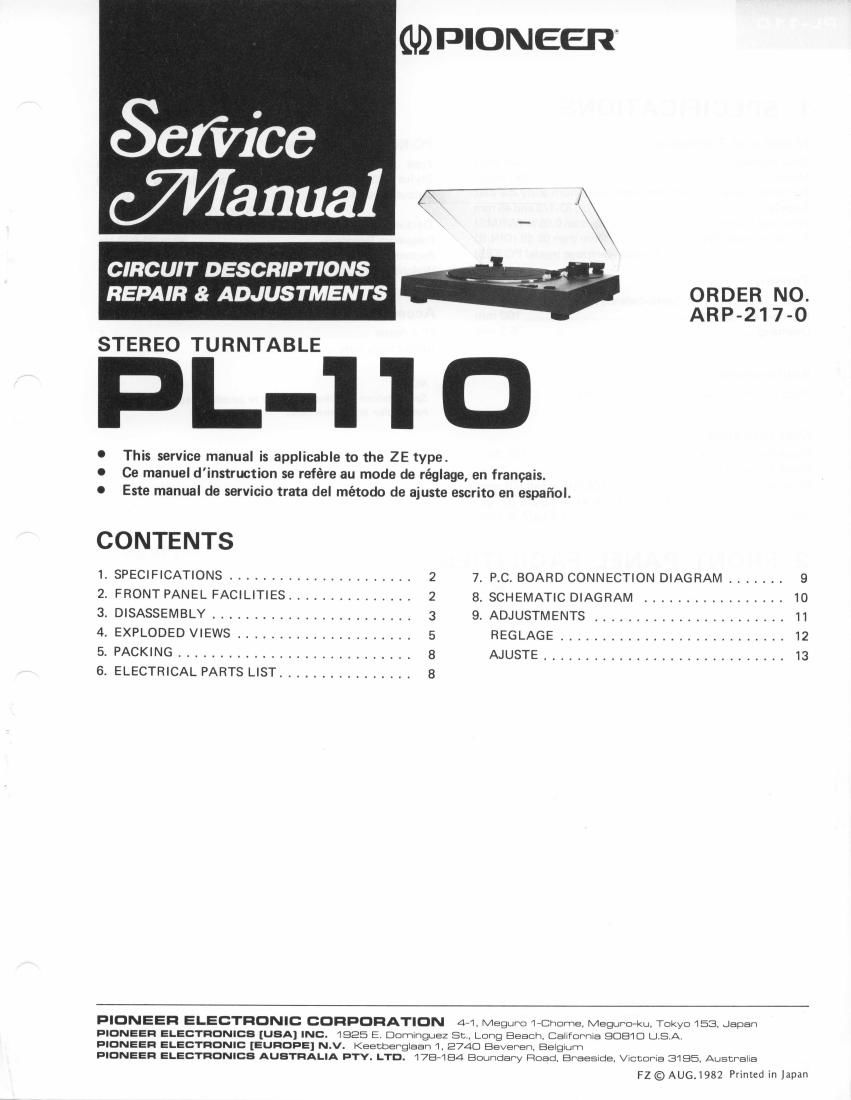

Page 1

CIRCUIT DESCRIPTIONS ,
REPAIR & ADJUSTMENTS ORDER NO

ARP-21 7 -o
STEREO TURNTABLE
0 This service manual is applicable to the ZE type.
0 Ce manuel dinstruction se refére au mode de réglage, en francais.
O Este manual de servicio trata del método de ajuste escrito en espafiol.
1. SPECIFICATIONS ...................... 2 7. P.C. BOARD CONNECTION DIAGRAM ....... 9
2. FRONT PANEL FACILITIES ............... 2 8. SCHEMATIC DIAGRAM ................. 10
3. DISASSEMBLY ........................ 3 9. ADJUSTMENTS ....................... 11
4. EXPLODED VIEWS ..................... 5 REGLAGE ........................... 12
5. PACKING ............................ 8 AJUSTE ............................. 13
6. ELECTRICAL PARTS LIST ................ 8

PIONEER ELECTRONIC CORPORATION 471. Magma Lemme, MegurD-Ku. Tokyo 153. Japan
PIONEER ELECTRONICS [USA] INC. 1925 E. Dommguez Sc Long Beach. Callfarnla 80810 USA

RIDNEER ELECTRONIC [EUROPE] N.v. Keecbergaan 1. 2740 Bevaren, BeIgrum

RICNEER ELECTRONICS AUSTRALIA PTY. LTD. 1787184 Boundary Road, BraESIde, VICCONE 3195, Auscreha

FZ © AUG.1982 Printed in Japan

Page 2

PL-1 1 D

1. SPECIFICATIONS

Motor and Turntable PC-K65 Specifications
Drive System . ............. Belt»drive Type ,,,,,,, Moving Magnet type
Motor .. ............ DC motor Stylus .. 0.5 mil diamond (PN-K65)
Turntable Platter .. . 280mm dlam. aluminum alloy diecast Output Voltage . ........................ 3.5 mv
Speeds ........................ 33-1/3 and 45 rpm (1 kHz, 50 mm/s Peak velocity, LAT)
Wow and Flutter .. Less than 0.05% (WRMS) Tracking Force ........... 2.1 g to 2.9 g (proper 2.5 g)
Signal-to-NoiseRatio . More than 68 dB (DIN-Bl Frequency Response ....... 20 ~ 20,000 Hz
(with Pioneer cartridge model PC-K65) Recommended Load 47 k9
Weight ....................
Tonearm
Type ....................... Static-balance type, Straight pipe arm
Effective Arm Length .. 190 mm Accessories
Overhang ................. 9.3 mm EP Adapter ..........
Instructions note...
Subfunctlons NOTE:
Auto-retu '0 mechanism, Free 5109 hinges Specifications and design subject to possible modification without

notice, due to improvements.

Miscellaneous

Power Requirements ..
Power Consumption

.D.C. 20V
.......2.4W

Dimensions ........... 422 (W) x 108 (H) x 345 (D) mm
16-3/8 (W) x 4-1/4 (H) x 13-5/8 (D) in.
Weight .............................................. 3.2 kg/7 lb 1 OZ

2. FRONT PANEL FACILITIES

6) SPEED SWITCH ® PLATTER
Set this switch in accordance with the seeed of me record PLATTER MOUNTING SHAFT

" for may-rig can: rpm record: ® RUBBER MAT
Dawes: ' 45" rm playing 45 rpm moulds.
13 EP ADAPTER

® CUT SWITCH This is used when ulaving records wimour a middle,"
Depress this Swnch to stop play
® CA Bl N ET

P - .

@ CARTRIDGE ( 0K65) ,n DUST COVER
C4) HEADSHELL

® TONEARM

® ARM REST

This [ewes Io hold and cllmp m tonal/m. wrm- moving
the town. rein-u me clamp.
